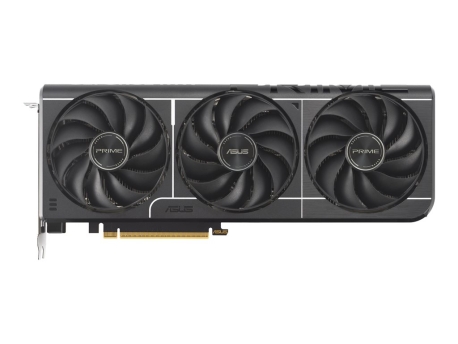

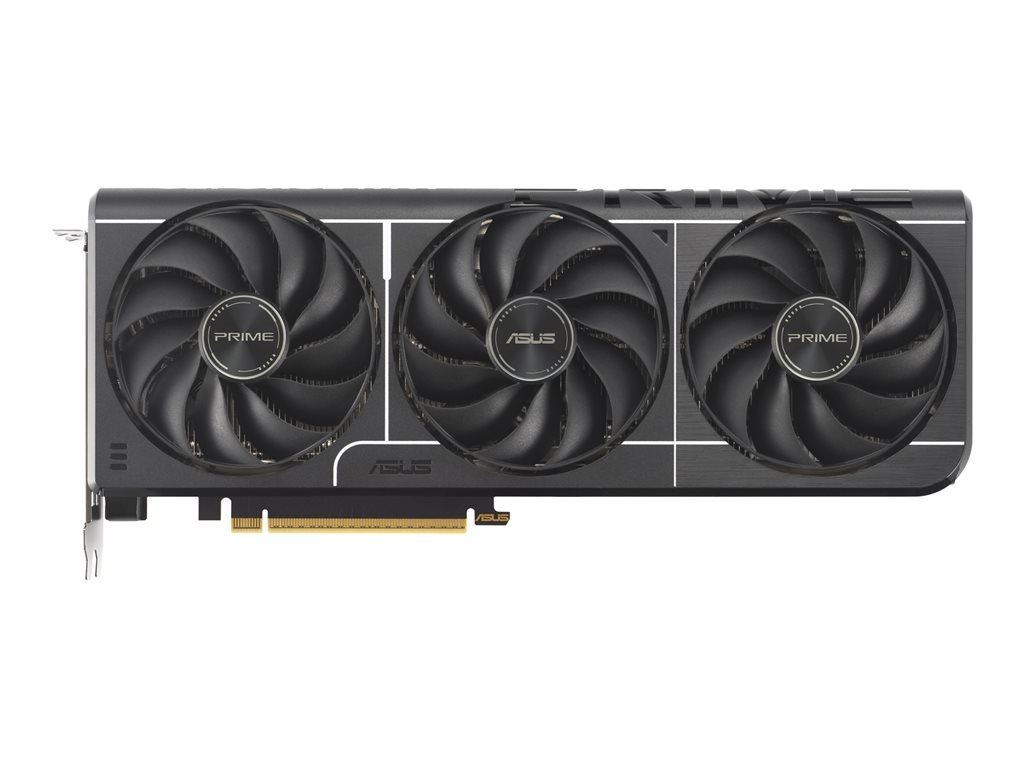

ASUS PRIME GeForce RTX 5060 Ti 16GB - OC Edition - graphics card - GeForce RTX 5060 Ti - 16 GB

SKU 90YV0MH2-M0NA00
Product Description:ASUS PRIME GeForce RTX 5060 Ti 16GB - OC Edition - graphics card - GeForce RTX 5060 Ti - 16 GB
Device Type:Graphics card
Bus Type:PCI Express 5.0
Graphics Engine:NVIDIA GeForce RTX 5060 Ti
Memory:16 GB GDDR7
Memory Speed:28 Gbps
Boost Clock:2617 MHz
In Stock(4)
  • Specifications
  • Description
General
Device Type:Graphics card
Bus Type:PCI Express 5.0
Graphics Engine:NVIDIA GeForce RTX 5060 Ti
Boost Clock:2617 MHz
Boost Clock (OC):2647 MHz
CUDA Cores:4608
Max Resolution:7680 x 4320
Max Monitors Supported:4
Interfaces Details:3 x DisplayPort ¦ HDMI
API Supported:OpenGL 4.6
Features:NVIDIA GeForce SFF-Ready, 2.5-slot Fan Cooler, Axial-tech Fan Design, vented backplate, Dual ball Bearing Fans, Dual Bios, NVIDIA Ansel, NVIDIA G-Sync ready, NVIDIA Avatar Cloud Engine (ACE), 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, 0dB Technology, stainless steel mounting bracket, protection plate, AUTO-EXTREME technology, Triple Fan Design, HDCP
Memory
Size:16 GB
Technology:GDDR7 SDRAM
Memory Speed:28 Gbps
Bus Width:128-bit
System Requirements
Required Power Supply:550 W
Additional Requirements:8-pin CPU power connector
Miscellaneous
Included Accessories:Graphics card support bracket, hook-and-loop fastener, thank you card
Software Included:ASUS GPU Tweak III
Compliant Standards:HDCP 2.3, DisplayPort 2.1b
Width:5 cm
Depth:30.4 cm
Height:12 cm
vis mere
The ASUS PRIME GeForce RTX 5060 Ti 16 GB graphics card is designed to deliver high-performance graphics for gamers and content creators. Utilizing NVIDIA's GeForce RTX 5060 Ti graphics processor and 16 GB of GDDR7 SDRAM, this card provides rapid memory speeds of 28 Gbps and a 128-bit bus width to support advanced gaming and rendering applications. With a maximum external resolution of 7680 x 4320, users can experience crisp visuals on up to four displays simultaneously, making it suitable for multi-monitor setups and immersive gaming experiences. Equipped with a variety of features, this graphics card employs a triple fan design and 2.5-slot fan cooler to ensure effective cooling during intensive tasks. The Dual BIOS and 0dB technology enhance performance, enabling whisper-quiet operation during less demanding scenarios. The ASUS PRIME GeForce RTX 5060 Ti supports NVIDIA DLSS 4 and offers ray tracing and tensor cores, making it ready for the next generation of gaming and rendering applications. Additionally, it includes essential accessories such as a graphics card support bracket and a hook-and-loop strap for convenient installation and support.
  • 16 GB GDDR7 SDRAM for advanced graphics performance
  • Maximum resolution support of 7680 x 4320 for enhanced visual clarity
  • Triple fan design and 2.5-slot cooler for thermal management
  • Supports dual BIOS and has 0dB technology for silent operation
  • NVIDIA DLSS 4 and ray tracing capabilities for immersive gaming experiences




The technical details come from 3rd party. edgemo is not responsible for any errors.
