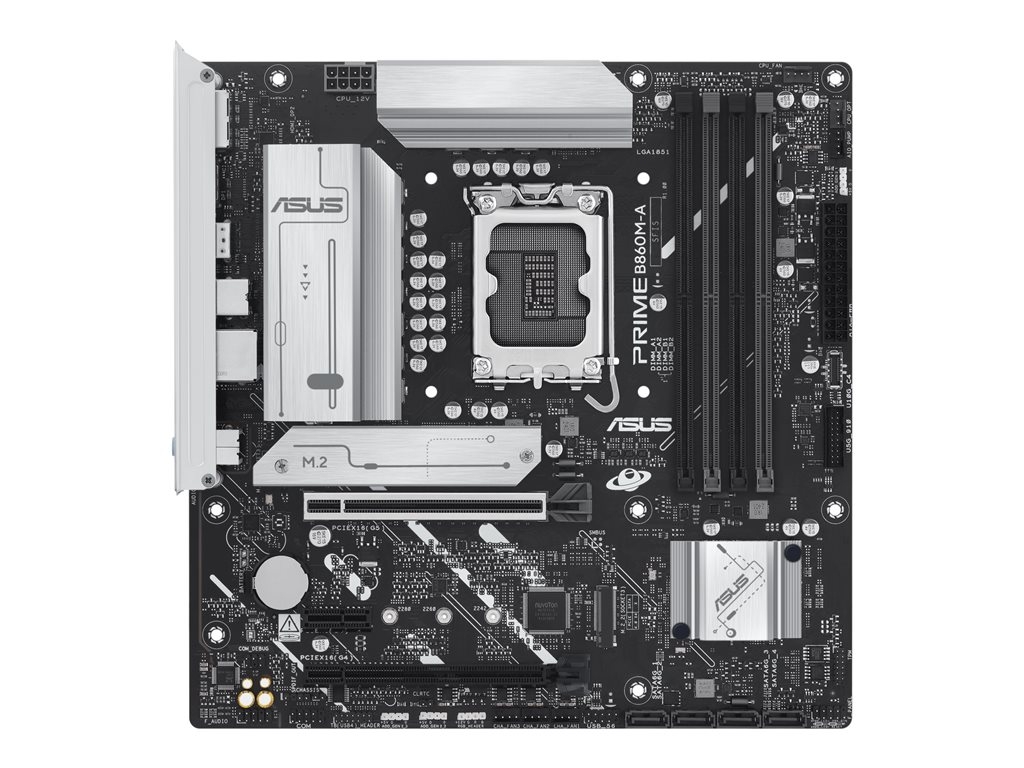

ASUS PRIME B860M-A-CSM - motherboard - micro ATX - LGA1851 Socket - B860

SKU PRIME B860M-A-CSM
Product Description:ASUS PRIME B860M-A-CSM - motherboard - micro ATX - LGA1851 Socket - B860
Product Type:Motherboard - micro ATX
Chipset Type:Intel B860
Processor Socket:1 x LGA1851 Socket
Compatible Processors:(supports Intel Core Ultra processors (Series 2))
Max RAM Size:256 GB
RAM Supported:4 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Product Type:Motherboard - micro ATX
Chipset Type:Intel B860
Processor Socket:LGA1851 Socket
Max Processors Qty:1
Compatible Processors:(supports Intel Core Ultra processors (Series 2))
Supported RAM
Max Size:256 GB
Technology:DDR5
Bus Clock:4333 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC, on-die ECC
Registered or Buffered:Unbuffered
Features:Intel Extreme Memory Profiles (XMP), dual channel memory architecture
Audio
Type:HD Audio (8-channel)
Compliant Standards:High Definition Audio
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 5.0 -connectors: 1 x M.2
Interfaces:1 x HDMI ¦ 2 x DisplayPort ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x aerial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out - mini-jack
Internal Interfaces:1 x USB-C 3.2 Gen 2 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x Thunderbolt 4 - header ¦ 1 x SPI - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS, ASUS EZ Flash, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:Preboot eXecution Environment (PXE), ASUS 5X Protection III, ASUS DIGI+ VRM, ESD Guards, LANGuard, overvoltage protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, VRM heatsink design, ASUS EZ DIY, ASUS ProCool, 7+1+1+1 Phase Power Design, ASUS Enhanced Memory Profile (AEMP) III, ASUS Aura Sync, Dr.MOS MOSFET, 6 Layer PCB, ASUS Fan Xpert 2+
Miscellaneous
Included Accessories:1 x M.2 rubber package, M.2 screw package, ACC Express Activation Key Card
Cables Included:2 x Serial ATA cable
Software Included:Armoury Crate, ASUS CPU-Z, ASUS DriverHub, ASUS Fan Xpert 2+, ASUS GlideX, Norton 360 Deluxe (60 days trial), WinRAR (40 days trial)
Width:24.4 cm
Depth:24.4 cm
vis mere




The technical details come from 3rd party. edgemo is not responsible for any errors.
