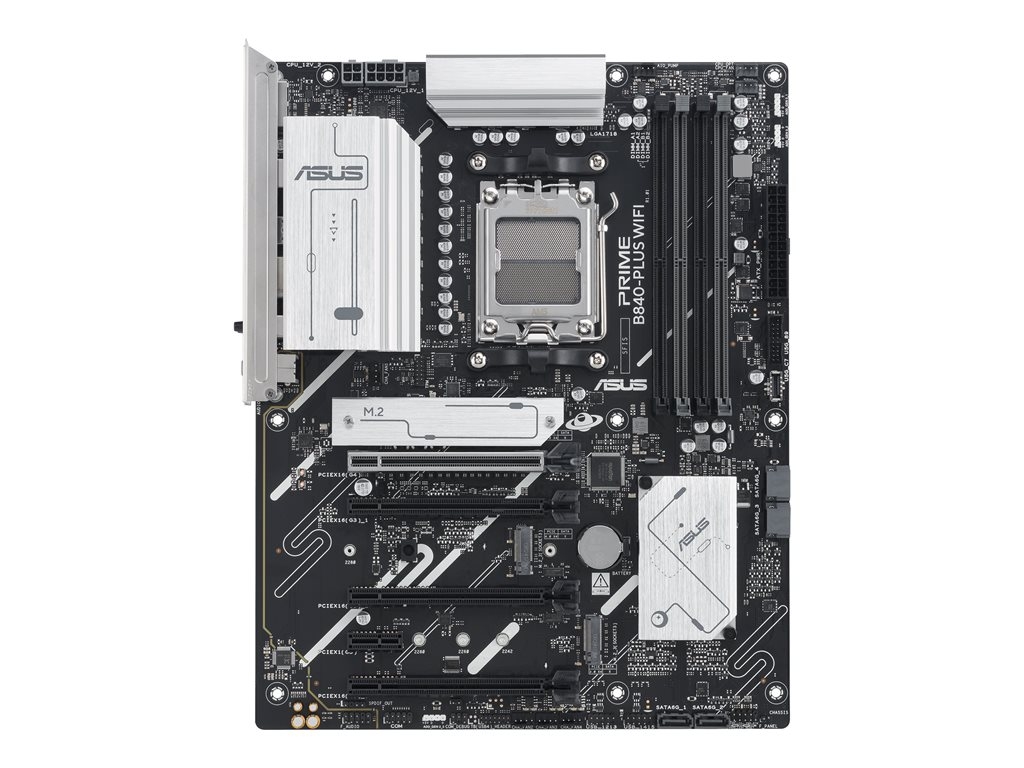

Printers & POSASUS PRIME B840-PLUS WIFI - motherboard - ATX - Socket AM5 - AMD B840
SKU PRIME B840-PLUS WIFI
| Product Description: | ASUS PRIME B840-PLUS WIFI - motherboard - ATX - Socket AM5 - AMD B840 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B840 |
| Processor Socket: | 1 x Socket AM5 |
| Compatible Processors: | (supports Ryzen 7000/8000/9000 Series) |
| Max RAM Size: | 256 GB |
| RAM Supported: | 4 DIMM slots - DDR5, on-die ECC, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | AMD B840 |
| Processor Socket: | Socket AM5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | |
| Max Size: | 256 GB |
| Technology: | DDR5 |
| Bus Clock: | 3800 MHz (O.C.) |
| Supported RAM Integrity Check: | On-die ECC, non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 2 x PCIe 3.0 x16 (x1 mode) ¦ 1 x PCIe 3.0 x1 ¦ 2 x M.2 socket (2280 M.2 Key M slot) ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| RAID Features: | AMD RAID Xpert2 Technology |
| Interfaces: | 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 2 ¦ 1 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces: | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPI - header ¦ 1 x SPDIF out - header ¦ 1 x Thunderbolt 4 - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | CrashFree BIOS 3, 8+2+1 Phase Power Design, Preboot eXecution Environment (PXE), ASUS EZ DIY, ASUS Enhanced Memory Profile (AEMP), BIOS FlashBack button, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS Q-Design, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, BIOS FlashBack LED, LANGuard, M.2 heatsink, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, chipset heatsink, DIY Friendly Design, 6 Layer PCB, pre-mounted I/O shield |
| Miscellaneous | |
| Included Accessories: | ASUS Wi-Fi Q-antenna, 1 x M.2 rubber package, 3 x M.2 SSD screw package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Armoury Crate, ASUS Fan Xpert 2+, ASUS DriverHub, ASUS GlideX, TurboV Core, ASUS CPU-Z, Adobe Creative Cloud (free trial), Norton 360 Deluxe (60 days trial), WinRAR (40 days trial), ASUS AURA Creator, ASUS AI Advisor |
| Compliant Standards: | DisplayPort 1.4 |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
The ASUS PRIME B840-PLUS WIFI motherboard delivers performance and reliability for users. Equipped with support for DDR5 SDRAM and a wide range of compatible processors, including Ryzen 7000/8000/9000 Series, this motherboard is designed to handle demanding applications. Featuring multiple connectivity options such as USB-C and advanced audio capabilities, it ensures seamless integration into high-performance setups. With its robust BIOS features, including ASUS EZ Flash 3 and CrashFree BIOS 3, users can easily manage and maintain system stability. The motherboard also incorporates ASUS 5X Protection III, providing overvoltage protection and enhancing system durability. The inclusion of Gigabit Ethernet and Bluetooth 5.3 allows for high-speed networking and wireless connectivity, making it an ideal choice for users seeking efficiency and versatility in their build.
- Supports AMD Ryzen 7000/8000/9000 Series processors
- Features 4 DIMM slots for DDR5 SDRAM with speeds up to 3800 MHz
- Includes solid connectivity options with USB 3.2 Gen 2 and HDMI
- Equipped with ASUS 5X Protection III for enhanced reliability
- Offers advanced audio output with high definition audio
