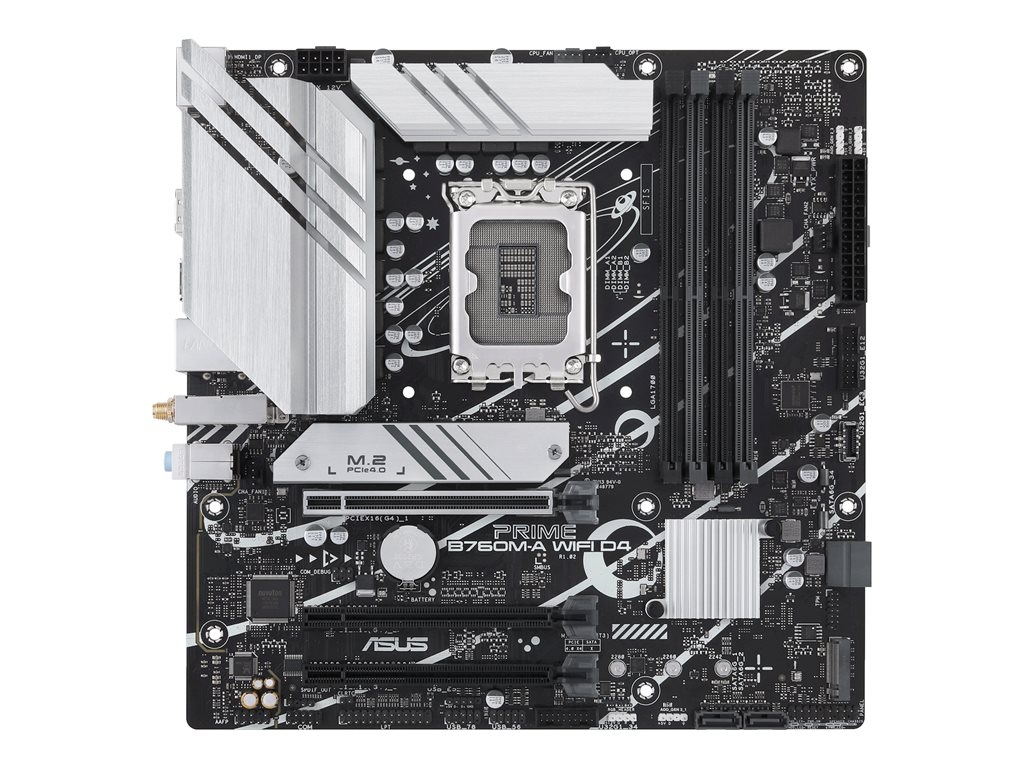

Printers & POSASUS PRIME B760M-A WIFI D4 - motherboard - micro ATX - LGA1700 Socket - B760
SKU 90MB1CX0-M0EAY0
| Product Description: | ASUS PRIME B760M-A WIFI D4 - motherboard - micro ATX - LGA1700 Socket - B760 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 5333 MHz (O.C.), 5066 MHz (O.C.), 5000 MHz (O.C.), 4800 MHz (O.C.), 4600 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4000 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3466 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 (x1 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x DisplayPort ¦ 2 x HDMI ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 2 x aerial ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces: | 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 5 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost Technology 2.0, ASUS OptiMem II, jack retasking, audio jack detect technology, LANGuard, ASUS 5X Protection III, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot Core+, ASUS Stainless Steel Back I/O, M.2 heatsink, overvoltage protection, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, Preboot eXecution Environment (PXE), 6 Layer PCB, Stack Cool 3+, 2oz Copper PCB, DIY Friendly Design |
| Miscellaneous | |
| Included Accessories: | ASUS Wi-Fi moving aerial, IO shield, 1 x M.2 rubber package, M.2 screw package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Armoury Crate, ASUS AI Suite III, ASUS AURA Creator, ASUS CPU-Z, ASUS Fan Xpert 2+, MyAsus, Norton 360 Deluxe (60 days trial), PC Cleaner, WinRAR |
| Compliant Standards: | DisplayPort 1.4 |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years |
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-A WIFI D4 provides users and PC DIY builders with a range of performance optimizations.
- Intel LGA 1700 socket - ready for 13th and 12th Gen Intel processors
- Ultrafast connectivity - PCIe 4.0, two M.2 slots, Realtek 2.5 Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C
- Comprehensive cooling - VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers
- ASUS OptiMem II - careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Aura Sync RGB Lighting - onboard addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
The technical details come from 3rd party. edgemo is not responsible for any errors.
