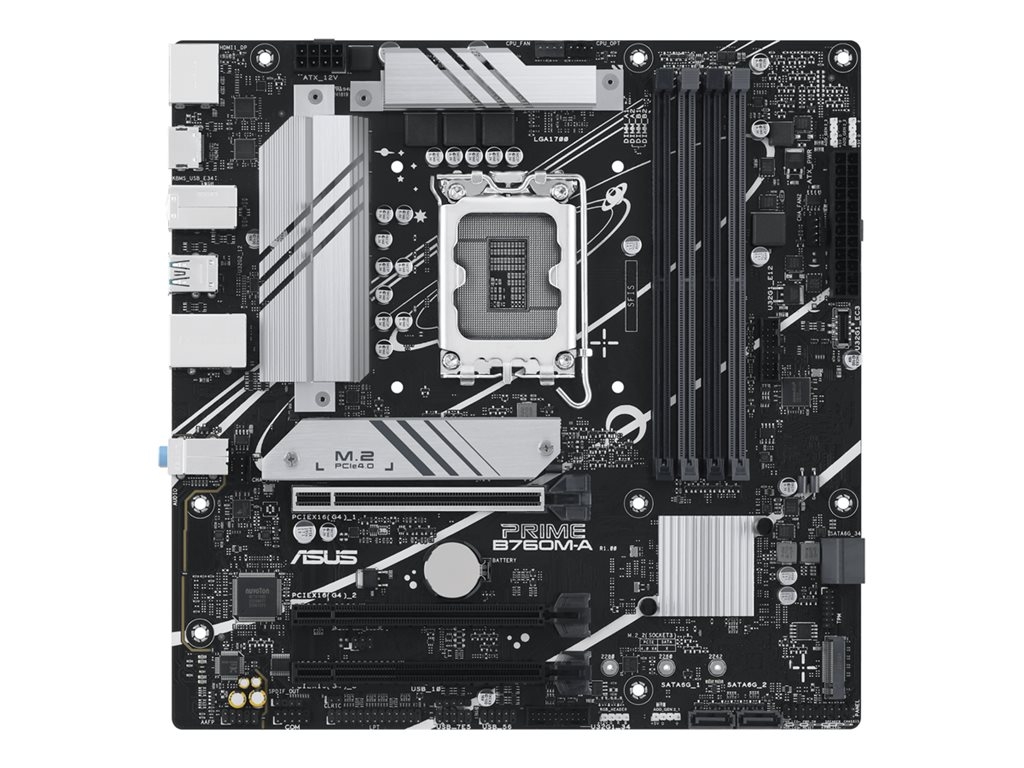

Printers & POSASUS PRIME B760M-A-CSM - motherboard - micro ATX - LGA1700 Socket - B760
SKU 90MB1EK0-M0EAYC
| Product Description: | ASUS PRIME B760M-A-CSM - motherboard - micro ATX - LGA1700 Socket - B760 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR5, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B760 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | |
| Type: | HD Audio (8-channel) |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | 2.5 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 4.0 x16 (x1 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 2 x M.2 |
| RAID Features: | Intel Rapid Storage Technology |
| Interfaces: | 1 x DisplayPort ¦ 2 x HDMI ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse |
| Internal Interfaces: | 4 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 5 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
| Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, 6 Layer PCB, ProCool Power Connector, overvoltage protection, ASUS 5X Protection III, M.2 heatsink, ASUS ProCool, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, DIY Friendly Design, Windows 11 compatible, Q-LED Core, VRM heatsink design |
| Miscellaneous | |
| Included Accessories: | IO shield, 1 x M.2 rubber package, M.2 screw package |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+ |
| Compliant Standards: | DisplayPort 1.4 |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
The ASUS PRIME B760M-A-CSM motherboard brings together a blend of features designed for enthusiasts and professionals alike. With support for 12th and 13th Generation Intel Core processors, users can expect performance suitable for demanding applications and gaming. This motherboard doesn't just stop at raw power; it also offers high-speed DDR5 memory support, enabling speeds up to 7200 MHz (O.C.) for fast data transfer and processing capabilities.
Connectivity is another area where the PRIME B760M-A-CSM shines, offering a wide range of ports including DisplayPort, HDMI, and USB 3.2 Gen 2, ensuring compatibility with a broad array of devices and peripherals. For gamers and content creators, the dual M.2 slots provide ample storage options, allowing for fast game loads and quick system boot times. Additionally, the motherboard is equipped with ASUS 5X Protection III, which includes a suite of safeguards such as LANGuard, overvoltage protection, and a stainless steel back I/O, ensuring durability and reliability for long-term use.
In summary, the ASUS PRIME B760M-A-CSM motherboard is a versatile and powerful foundation for building a high-performance PC, offering a perfect balance of speed, connectivity, and durability.
Connectivity is another area where the PRIME B760M-A-CSM shines, offering a wide range of ports including DisplayPort, HDMI, and USB 3.2 Gen 2, ensuring compatibility with a broad array of devices and peripherals. For gamers and content creators, the dual M.2 slots provide ample storage options, allowing for fast game loads and quick system boot times. Additionally, the motherboard is equipped with ASUS 5X Protection III, which includes a suite of safeguards such as LANGuard, overvoltage protection, and a stainless steel back I/O, ensuring durability and reliability for long-term use.
In summary, the ASUS PRIME B760M-A-CSM motherboard is a versatile and powerful foundation for building a high-performance PC, offering a perfect balance of speed, connectivity, and durability.
- Supports 12th and 13th Generation Intel Core processors for performance
- High-speed DDR5 memory support up to 7200 MHz (O.C.) for fast data transfer
- Dual M.2 slots for high-speed storage solutions, enhancing game loading and system boot times
- USB 3.2 Gen 2 support for fast data transfer rates, making file transfers quicker
- ASUS 5X Protection III ensures longevity and reliability with a suite of safeguards
