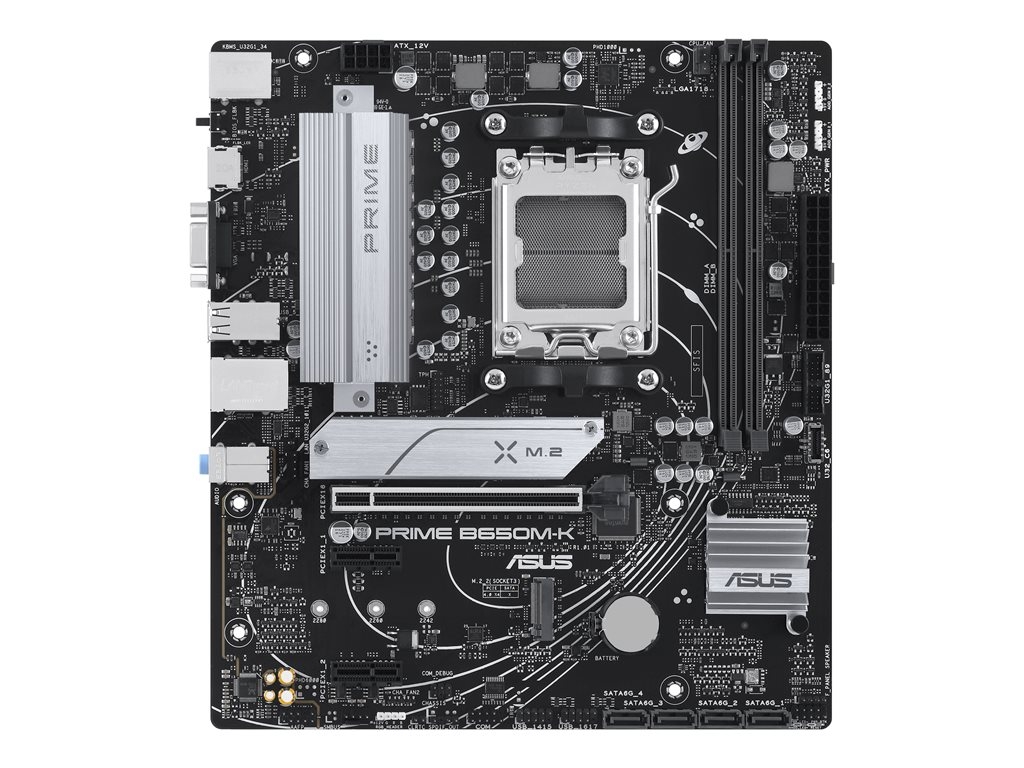

ASUS PRIME B650M-K - motherboard - micro ATX - Socket AM5 - AMD B650
SKU PRIME B650M-K
Product Description: | ASUS PRIME B650M-K - motherboard - micro ATX - Socket AM5 - AMD B650 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD B650 |
Processor Socket: | 1 x Socket AM5 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
Max RAM Size: | 96 GB |
RAM Supported: | 2 DIMM slots - DDR5, non-ECC, on-die ECC, ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD B650 |
Processor Socket: | Socket AM5 |
Max Processors Qty: | 1 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
Supported RAM | |
Max Size: | 96 GB |
Technology: | DDR5 |
Bus Clock: | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.) |
Supported RAM Integrity Check: | Non-ECC, on-die ECC, ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, AMD EXPO technology |
Audio | |
Type: | HD Audio (8-channel) |
Compliant Standards: | High Definition Audio |
LAN | |
Network Interfaces: | 2.5 Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x1 ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
Storage Interfaces: | PCIe 4.0 -connectors: 1 x M.2 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ SATA-600 -connectors: 5 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
RAID Features: | AMD RAID Xpert2 Technology |
Interfaces: | 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-out/headphones - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 1 - header ¦ 1 x speaker - header ¦ 1 x SPDIF out - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up: | Wake on PME |
Hardware Features: | Overvoltage protection, VRM heatsink design, ASUS OptiMem II, Preboot eXecution Environment (PXE), ASUS EZ DIY, CrashFree BIOS 3, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core+, Q-DIMM, Q-LED Core, Q-Slot, M.2 heatsink, BIOS FlashBack button, BIOS FlashBack LED, ASUS Aura Sync, AURA RGB Lighting Control, 6 Layer PCB |
Miscellaneous | |
Included Accessories: | I/O back cover, 2 x M.2 rubber package, M.2 screw package |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ASUS AURA Creator, ASUS Fan Xpert 2+, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, ASUS CPU-Z, Norton 360 Deluxe (60 days trial), WinRAR, Armoury Crate |
Width: | 24.4 cm |
Depth: | 22.1 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
The ASUS PRIME B650M-K motherboard combines advanced technology and robust build quality to offer a solid foundation for your next PC build. Designed with the future in mind, it supports Ryzen 7000 Series processors on the Socket AM5 platform, ensuring compatibility with advanced CPU technology. With support for DDR5 memory at overclocked speeds up to 8000 MHz, it enhances system speed and responsiveness. The motherboard is equipped with advanced connectivity options, including USB 3.2 Gen 2 and 2.5 Gigabit Ethernet, providing fast data transfer and reliable network connections. Expansion is made easy with PCIe 4.0 and 5.0 slots, alongside versatile M.2 sockets for fast storage. ASUS's commitment to quality is evident in the motherboard's comprehensive cooling solutions, which ensure stable performance under any load. Whether you're a gamer, content creator, or enthusiast, the PRIME B650M-K offers the features and reliability you need to build a powerful, up-to-date system.
- Supports DDR5 SDRAM with speeds up to 8000 MHz (O.C.) for high memory performance
- 2.5 Gigabit Ethernet for high-speed, lag-free networking
- Comprehensive cooling solutions including M.2 and VRM heatsinks for enhanced thermal performance
- Multiple USB 3.2 ports for high-speed data transfer and connectivity
- AMD EXPO technology support for easy memory overclocking and optimization
