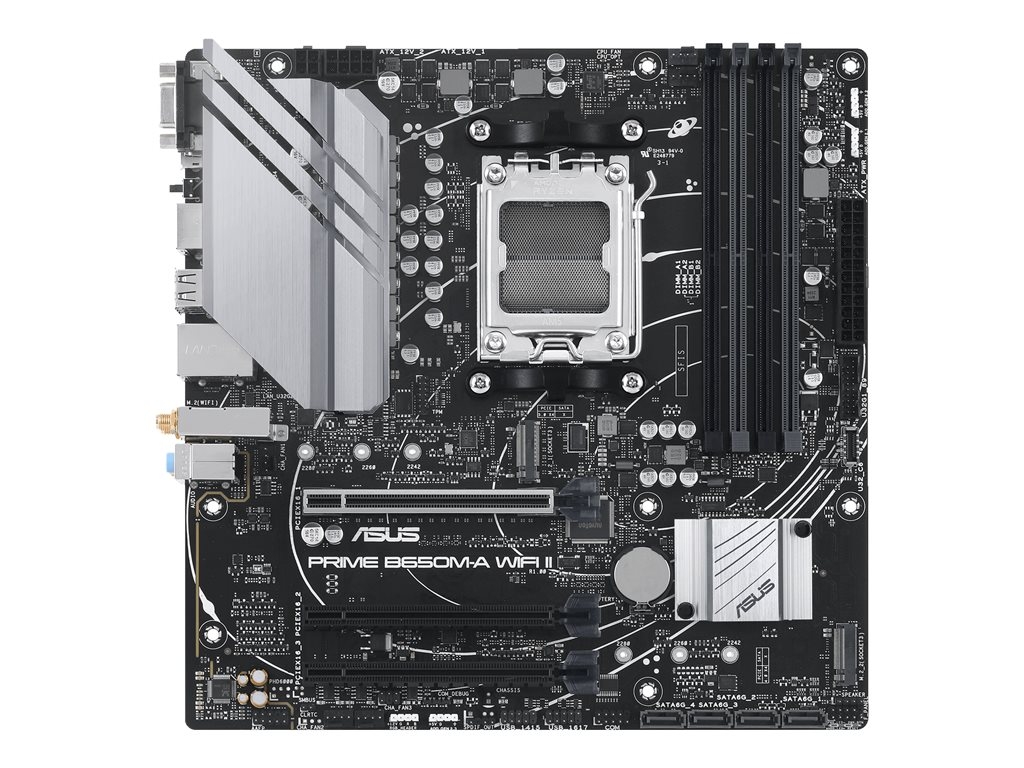

ASUS PRIME B650M-A WIFI II - motherboard - micro ATX - Socket AM5 - AMD B650
SKU PRIME B650M-A WIFI II
Product Description: | ASUS PRIME B650M-A WIFI II - motherboard - micro ATX - Socket AM5 - AMD B650 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD B650 |
Processor Socket: | 1 x Socket AM5 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
Max RAM Size: | 192 GB |
RAM Supported: | 4 DIMM slots - DDR5, non-ECC, ECC, on-die ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD B650 |
Processor Socket: | Socket AM5 |
Max Processors Qty: | 1 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series) |
Supported RAM | |
Max Size: | 192 GB |
Technology: | DDR5 |
Bus Clock: | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 7600 MHz (O.C.) |
Supported RAM Integrity Check: | Non-ECC, ECC, on-die ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, AMD EXPO technology |
Audio | |
Type: | HD Audio (8-channel) |
Compliant Standards: | High Definition Audio |
LAN | |
Network Interfaces: | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 4.0 x16 (x1 mode) ¦ 2 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 |
Interfaces: | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 1 ¦ 4 x USB 2.0 ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x aerial ¦ 1 x PS/2 keyboard / mouse |
Internal Interfaces: | 1 x USB-C 3.2 Gen 1 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header ¦ 1 x SPI - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS DIGI+ VRM, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS Aura Sync, ASUS OptiMem II, ASUS SafeSlot Core+, DIY Friendly Design, Q-LED Core, VRM heatsink design, BIOS FlashBack button |
Miscellaneous | |
Included Accessories: | IO shield, ASUS Wi-Fi moving aerial, M.2 SSD screw package |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 2+ |
Width: | 24.4 cm |
Depth: | 24.4 cm |
The technical details come from 3rd party. edgemo is not responsible for any errors.
