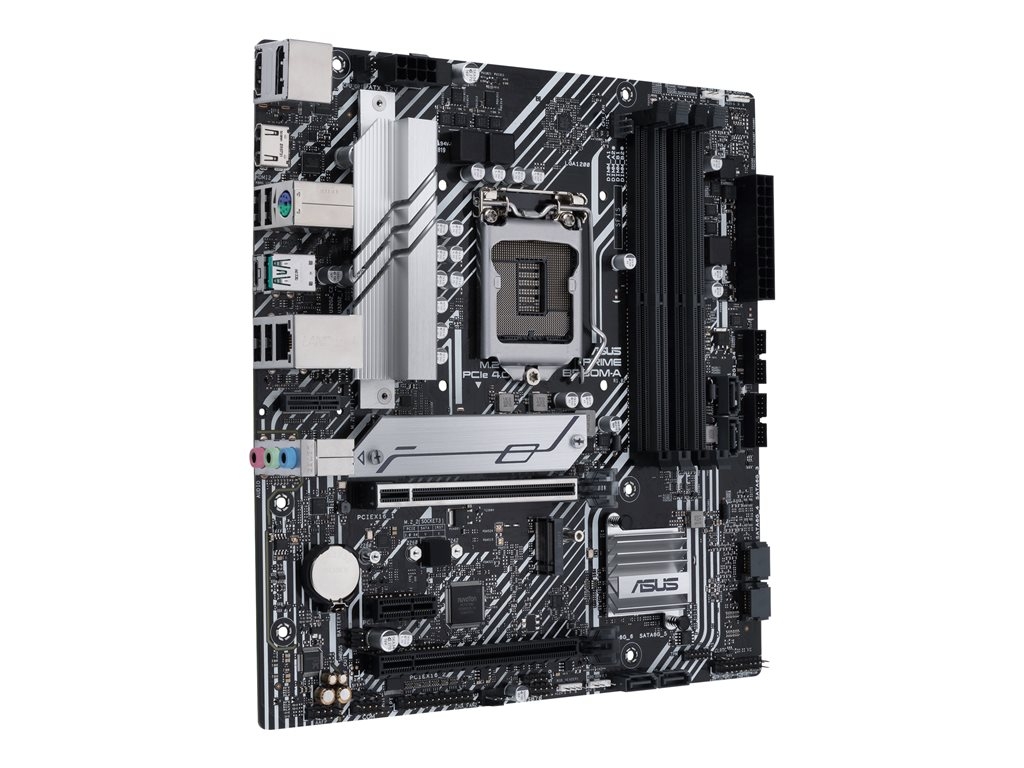

ASUS PRIME B560M-A - motherboard - micro ATX - LGA1200 Socket - B560

SKU 90MB17A0-M0EAY0
Product Description:ASUS PRIME B560M-A - motherboard - micro ATX - LGA1200 Socket - B560
Product Type:Motherboard - micro ATX
Chipset Type:Intel B560
Processor Socket:1 x LGA1200 Socket
Compatible Processors:(supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR4, non-ECC, unbuffered
18-04-2024
  • Specifications
  • Description
General
Product Type:Motherboard - micro ATX
Chipset Type:Intel B560
Processor Socket:LGA1200 Socket
Max Processors Qty:1
Compatible Processors:(supports 11th Generation Intel Core and 10th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size:128 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC887/ALC897
Compliant Standards:High Definition Audio
LAN
Network Controller:Intel I219V
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (11th Gen Intel CPUs); PCIe 3.0 x16 mode (10th Gen Intel CPUs)) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E)
Storage Interfaces:SATA-600 -connectors: 6 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 1 x M.2
Interfaces:1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB 3.2 Gen 2 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x DisplayPort ¦ 2 x HDMI ¦ 4 x USB 2.0 ¦ 1 x USB-C Gen2
Internal Interfaces:3 x USB 2.0 - header ¦ 1 x parallel - header ¦ 4 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:UEFI BIOS
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:Jack retasking, ASUS Q-Design, ESD Guards, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, Intel Optane Memory Ready, ASUS 5X Protection III, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, Armoury Crate, ASUS SafeSlot Core+
Miscellaneous
Included Accessories:1 x M.2 screw, vertical M.2 bracket set, 1 x M.2 rubber package
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (Trial), ASUS AURA Creator
Compliant Standards:DisplayPort 1.4
Width:24.4 cm
Depth:23.4 cm
vis mere
  • Intel LGA 1200 socket: ready for 11th Gen Intel Core processors
  • Enhanced power solution: 8 power stages, alloy chokes and durable capacitors for stable power delivery
  • Comprehensive cooling: stronger VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
  • Memory overclocking: supports memory overclocking up to 5000 MHz
  • ASUS OptiMem II: careful routing for significantly reducing crosstalk, preserving signal integrity for improved memory stability
  • Ultra-fast connectivity: PCIe 4.0, Intel 1Gb Ethernet, rear USB 3.2 Gen 2 (Type-A and Type-C) and V-M.2 Key E slot for Wi-Fi
