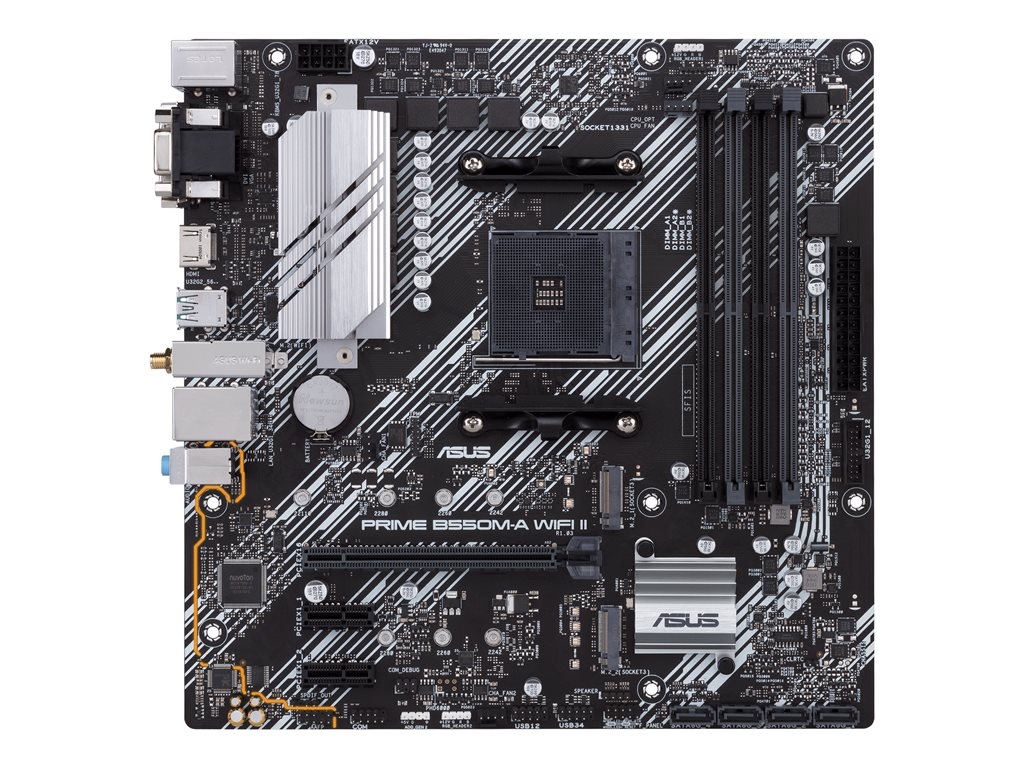

ASUS PRIME B550M-A WIFI II - motherboard - micro ATX - Socket AM4 - AMD B550

SKU 90MB19X0-M0EAY0

Product Description:	ASUS PRIME B550M-A WIFI II - motherboard - micro ATX - Socket AM4 - AMD B550
Product Type:	Motherboard - micro ATX
Chipset Type:	AMD B550
Processor Socket:	1 x Socket AM4
Compatible Processors:	Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)
Max RAM Size:	128 GB
RAM Supported:	4 DIMM slots - DDR4, ECC, non-ECC, unbuffered

30-12-2024

Specifications
Description
Accessories

General
Product Type:	Motherboard - micro ATX
Chipset Type:	AMD B550
Processor Socket:	Socket AM4
Max Processors Qty:	1
Compatible Processors:	Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series)

Supported RAM
Max Size:	128 GB
Technology:	DDR4
Bus Clock:	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3200 MHz, 3333 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4200 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.), 4866 MHz (O.C.)
Supported RAM Integrity Check:	ECC, non-ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture

Audio
Type:	HD Audio (8-channel)
Compliant Standards:	High Definition Audio

LAN
Network Interfaces:	Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (Ryzen 5000 Series/ 3000 Series CPUs); PCIe 3.0 x16 mode (Ryzen 5000 G-Series / 4000 G-Series CPUs)) ¦ 2 x PCIe 3.0 x1
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces:	1 x VGA ¦ 1 x DVI-D ¦ 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 3.2 Gen 2 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 1 x HDMI
Internal Interfaces:	4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x serial - header ¦ 1 x speaker - header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector

Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	Preboot eXecution Environment (PXE), LANGuard, jack retasking, audio jack detect technology, ASUS 5X Protection III, ASUS DIGI+ VRM, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-Slot, ASUS Aura Sync, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert 2+, ASUS EZ DIY, CrashFree BIOS 3

Miscellaneous
Included Accessories:	ASUS Wi-Fi moving aerial, 1 x M.2 screw, I/O back cover
Cables Included:	2 x Serial ATA cable
Software Included:	Drivers & Utilities, ASUS AURA Creator, ASUS AI Suite III, ASUS CPU-Z, ASUS AI Charger, DAEMON Tools, WinRAR, Norton AntiVirus (Trial), ASUS EZ Flash 3
Width:	24.4 cm
Depth:	24.4 cm

Manufacturer Warranty
Service & Support:	Limited warranty - 3 years

vis mere

ASUS Prime series is expertly engineered to unleash the full potential of 5000 Series. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime B550 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.

Tune it your way
Cool to the Core
Cooler by design - VRM heatsink and thermal pads
Build on a solid foundation
Little things make a big difference
Outstanding audio - combined onboard features deliver elevated audio
Audio shielding
Separate layer for left and right tracks
Premium audio capacitors

The technical details come from 3rd party. edgemo is not responsible for any errors.
