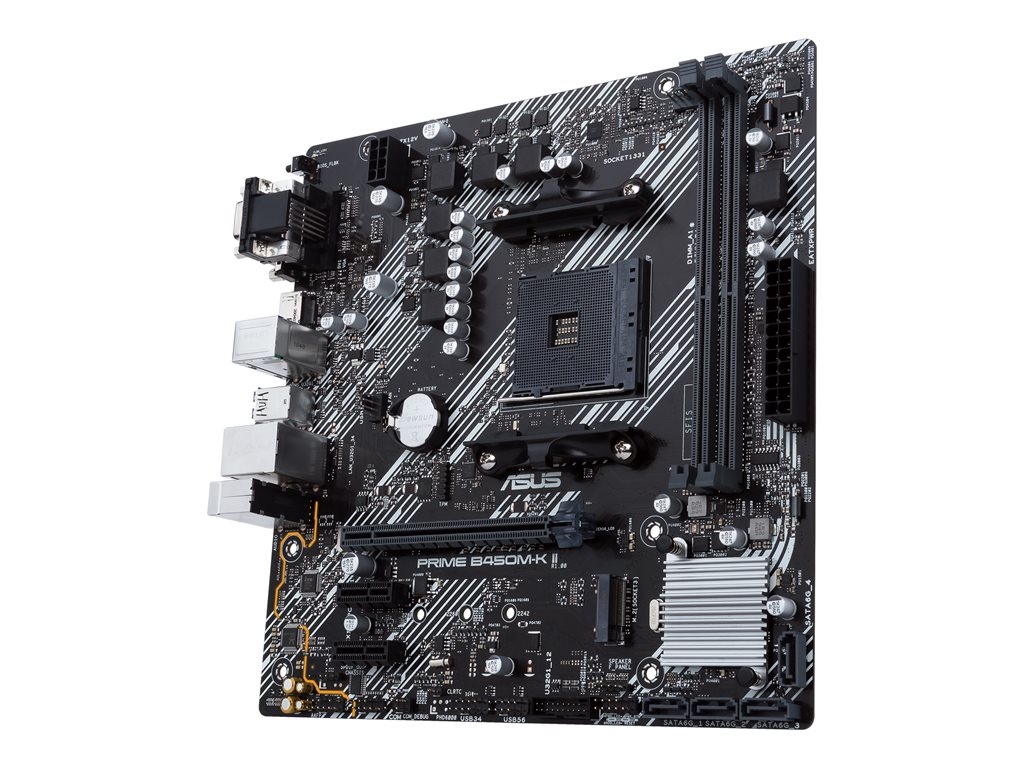

ASUS PRIME B450M-K II - motherboard - micro ATX - Socket AM4 - AMD B450

SKU 90MB1600-M0EAY0
Product Description:ASUS PRIME B450M-K II - motherboard - micro ATX - Socket AM4 - AMD B450
Product Type:Motherboard - micro ATX
Chipset Type:AMD B450
Processor Socket:1 x Socket AM4
Compatible Processors:Athlon, Ryzen (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics)
Max RAM Size:64 GB
RAM Supported:2 DIMM slots - DDR4, non-ECC, ECC, unbuffered
20-08-2021
  • Specifications
  • Description
General
Product Type:Motherboard - micro ATX
Chipset Type:AMD B450
Processor Socket:Socket AM4
Max Processors Qty:1
Compatible Processors:Athlon, Ryzen (supports 1st,2nd and 3rd Generation Ryzen / Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics)
Supported RAM
Max Size:64 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3400 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 3533 MHz (O.C.)
Supported RAM Integrity Check:Non-ECC, ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture
Audio
Type:HD Audio (8-channel)
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st, 2nd and 3rd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics and 2nd Generation Ryzen with Radeon Vega Graphics); x4 mode (with Athlon with Radeon Vega Graphics)) ¦ 2 x PCIe 2.0 x1
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces:1 x LAN (Gigabit Ethernet) ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 2 x USB 2.0 ¦ 4 x USB 3.2 Gen 1 ¦ 1 x VGA
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ Serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:BIOS FlashBack, UEFI BIOS, ASUS EZ Flash 3
Hardware Features:Jack retasking, ASUS Q-Design, ASUS TurboV EVO, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, ASUS EPU (Energy Processing Unit), ASUS Fan Xpert, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS 5X Protection III, ASUS SafeSlot Core, Armoury Crate
Miscellaneous
Included Accessories:I/O back cover, 1 x M.2 anchor
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities, ASUS AI Charger, ASUS CPU-Z, ASUS AI Suite III, ASUS EZ Update, PC Cleaner, ASUS EZ Flash 3, DAEMON Tools, WinRAR, Norton AntiVirus (60 days trial)
Width:22.6 cm
Depth:22.1 cm
AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A, BIOS FlashBack.
ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. ASUS has melded all the good stuff that's packed into AMD Ryzen processors with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy and affordable.
  • Comprehensive cooling
  • Ultrafast connectivity
  • 5X Protection III
  • LED illumination




The technical details come from 3rd party. edgemo is not responsible for any errors.
