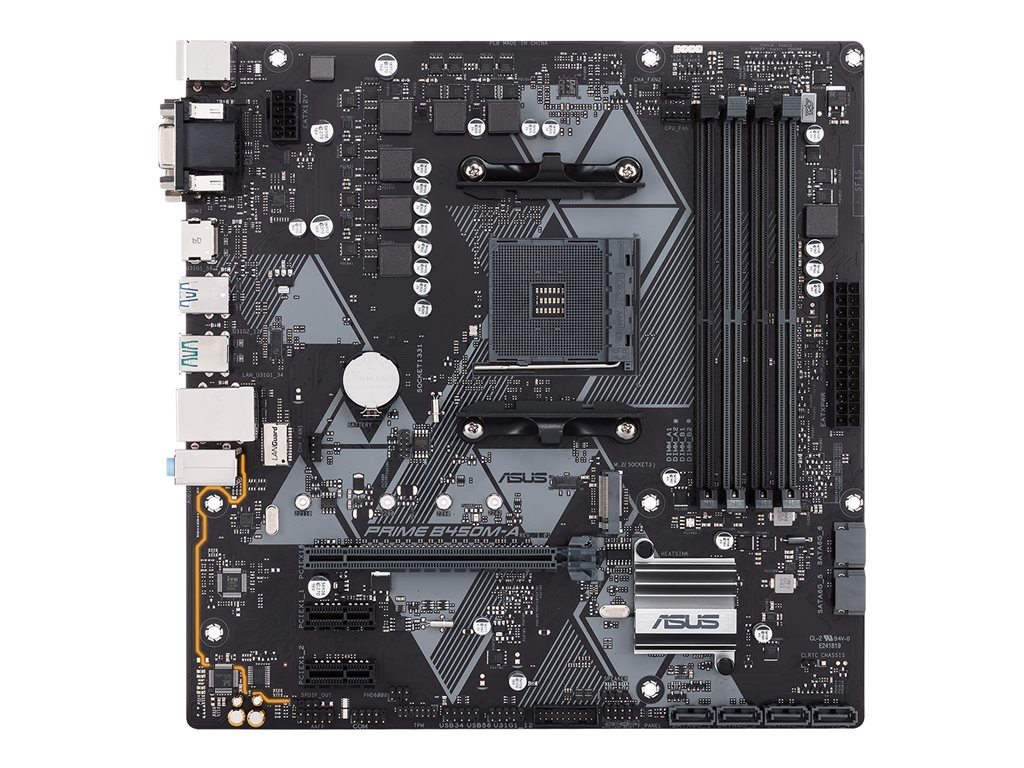

Printers & POSASUS PRIME B450M-A/CSM - motherboard - micro ATX - Socket AM4 - AMD B450
SKU 90MB0YR0-M0EAYC
| Product Description: | ASUS PRIME B450M-A/CSM - motherboard - micro ATX - Socket AM4 - AMD B450 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B450 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD B450 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) ¦ 2 x PCIe 2.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 3.1 Gen 2 |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support |
| Hardware Features: | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Fanless Design Heatsink, ASUS Stainless Steel Back I/O, ASUS Fan Xpert 2+, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core, AMD StoreMI technology, NVM Express RAID support, ASUS Aura Sync |
| Miscellaneous | |
| Included Accessories: | 1 x M.2 screw, I/O back cover |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III |
| Width: | 24.4 cm |
| Depth: | 24 cm |
ASUS Prime B450 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. All the good stuff that's packed into AMD Ryzen processors was melded with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450 Series motherboard, you build smart, easy and affordable.
- Powered by AMD Ryzen processors to maximize connectivity and speed with NVMe M.2, USB 3.1 Gen2, DDR4 and Gigabit LAN
- 5X Protection III hardware-level safeguards provide component longevity and reliability
- Aura Sync RGB header provides a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of enabled products
- Patent-pending SafeSlot Core fortified PCIe slot prevents damage caused by heavyweight GPUs
The technical details come from 3rd party. edgemo is not responsible for any errors.
