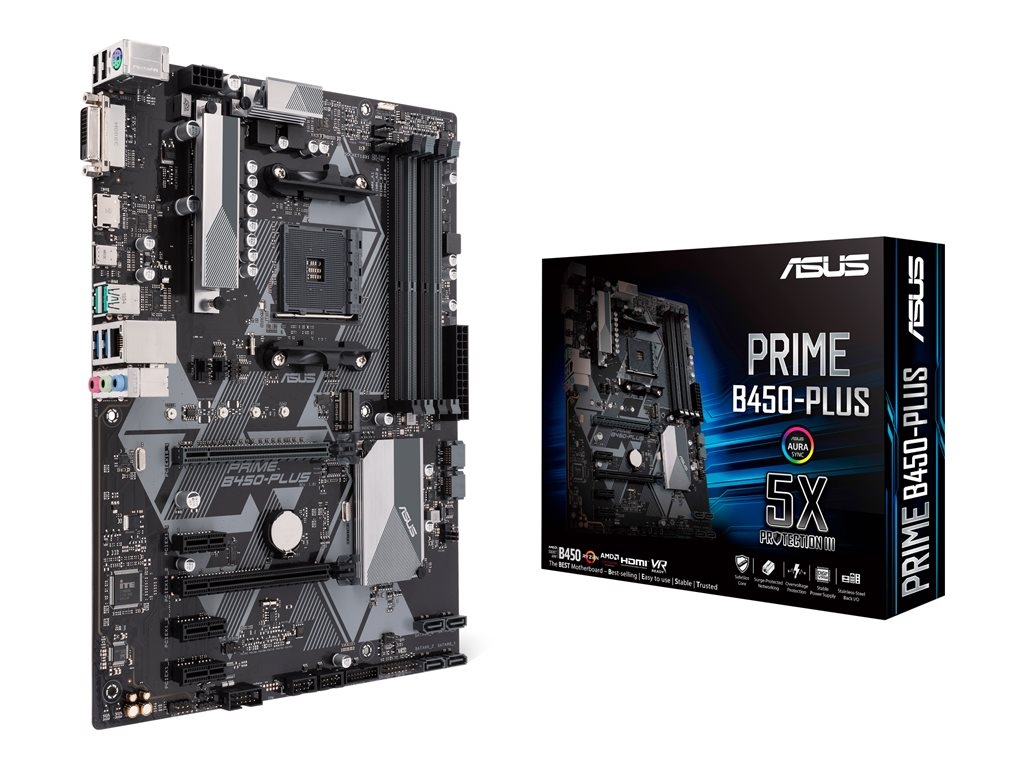

ASUS PRIME B450-PLUS - motherboard - ATX - Socket AM4 - AMD B450

SKU 90MB0YN0-M0EAY0
Product Description:ASUS PRIME B450-PLUS - motherboard - ATX - Socket AM4 - AMD B450
Product Type:Motherboard - ATX
Chipset Type:AMD B450
Processor Socket:1 x Socket AM4
Compatible Processors:Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics)
Max RAM Size:64 GB
RAM Supported:4 DIMM slots - DDR4, ECC, unbuffered
11-04-2024
  • Specifications
  • Description
General
Product Type:Motherboard - ATX
Chipset Type:AMD B450
Processor Socket:Socket AM4
Max Processors Qty:1
Compatible Processors:Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics)
Supported RAM
Max Size:64 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.)
Supported RAM Integrity Check:ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture
Audio
Type:HD Audio (8-channel)
Audio Codec:Realtek ALC887-VD2
Compliant Standards:High Definition Audio
LAN
Network Controller:Realtek RTL8111H
Network Interfaces:Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with 1st and 2nd Generation Ryzen CPU); x8 mode (with Ryzen with Radeon Vega Graphics)) ¦ 3 x PCIe 2.0 x1 ¦ 1 x PCIe 2.0 x16 (x4 mode)
Storage Interfaces:SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2
Interfaces:1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 2 x USB 3.1 Gen 2 ¦ 1 x USB-C Gen1
Internal Interfaces:4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
BIOS Type:AMI
BIOS Features:Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, ACPI 6.1 support, SMBIOS 3.1 support
Sleep / Wake Up:Wake on LAN (WOL), wake on PME
Hardware Features:C.P.R. (CPU Parameter Recall), ASUS Q-Design, ESD Guards, Q-DIMM, Q-Slot, CrashFree BIOS 3, 6 Phase Power Design, ASUS DIGI+ VRM, Fanless Design Heatsink, AMD CrossFireX technology support, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Fan Xpert 4 Core, AMD StoreMI technology, NVM Express RAID support, ASUS Aura Sync
Miscellaneous
Included Accessories:1 x M.2 screw, I/O back cover
Cables Included:2 x Serial ATA cable
Software Included:Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, PC Cleaner, ASUS EZ Flash 3, File Transfer
Width:30.5 cm
Depth:23.4 cm
Manufacturer Warranty
Service & Support:Limited warranty - 3 years
vis mere
ASUS Prime B450 Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. All the good stuff that's packed into AMD Ryzen processors was melded with essential ASUS design and engineering, so you benefit from industry-leading technologies - including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450 Series motherboard, you build smart, easy and affordably.
  • All-round energy efficiency
  • Flexible cooling controls for air or liquid
  • Cooler by design
  • Make your memory faster
  • Media-acclaimed UEFI BIOS
  • 5X Protection III
  • Compatible devices and components
  • Outstanding audio
  • Outshine the competition with Aura Sync
  • Brighten up your build
  • Beyond VR ready




The technical details come from 3rd party. edgemo is not responsible for any errors.
