Printers & POSASUS PRIME B365M-C/SI - motherboard - micro ATX - LGA1151 Socket - B365
SKU 90MB10U0-M0UBYM

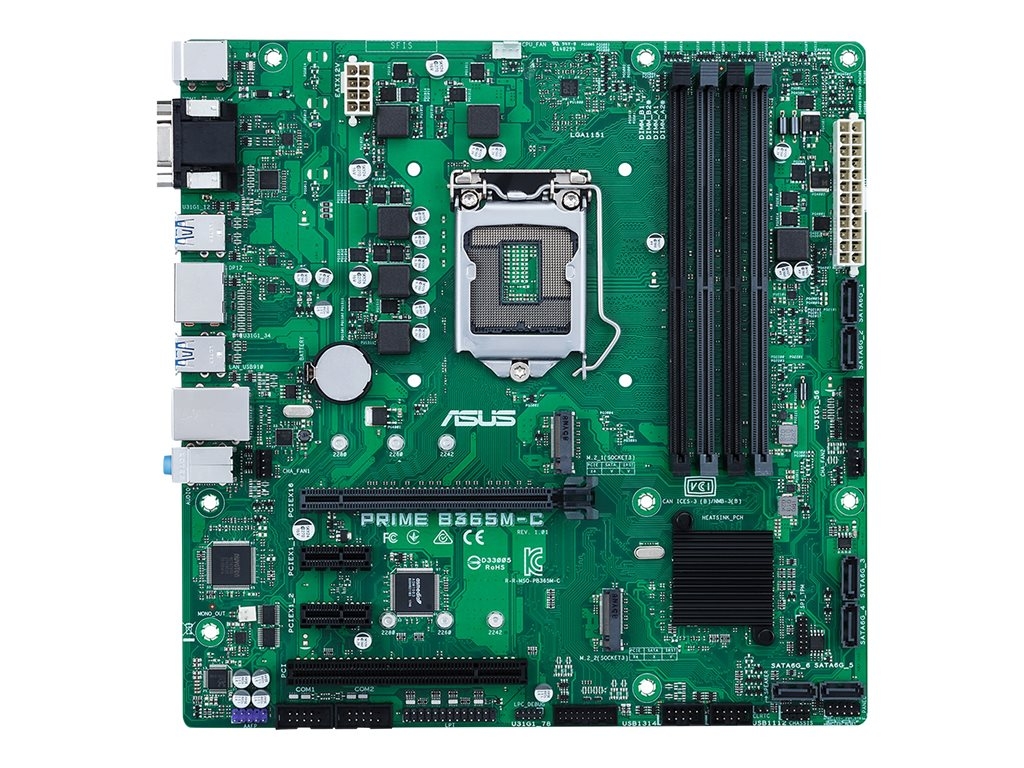

| Product Description: | ASUS PRIME B365M-C/SI - motherboard - micro ATX - LGA1151 Socket - B365 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B365 |
| Processor Socket: | 1 x LGA1151 Socket |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Max RAM Size: | 64 GB |
| RAM Supported: | 4 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel B365 |
| Processor Socket: | LGA1151 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7 (supports 8th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
| Supported RAM Integrity Check: | Non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Graphics | |
| Max Allocated RAM Size: | 1 GB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Intel I219V |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x PCI |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 1 x M.2 ¦ PCIe -connectors: 1 x M.2 |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x VGA ¦ 2 x DisplayPort ¦ 1 x HDMI |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 2 x serial - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x parallel - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | Multilingual BIOS, UEFI BIOS, ACPI 6.1 support, SMBIOS 3.1 support |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Hardware Features: | Jack retasking, Q-DIMM, Q-Slot, audio jack detect technology, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), Moistureproof PCB, Intel Optane Memory Ready, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit |
| Miscellaneous | |
| Compliant Standards: | Plug and Play, NIST SP800-147 |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
ASUS business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability, and an improved management suite for easier customization.
- 24/7 reliability
- Protection against moisture and corrosion
- Anti-sulfur resistors
- Overvoltage protection
- Stainless-steel back I/O
The technical details come from 3rd party. edgemo is not responsible for any errors.
