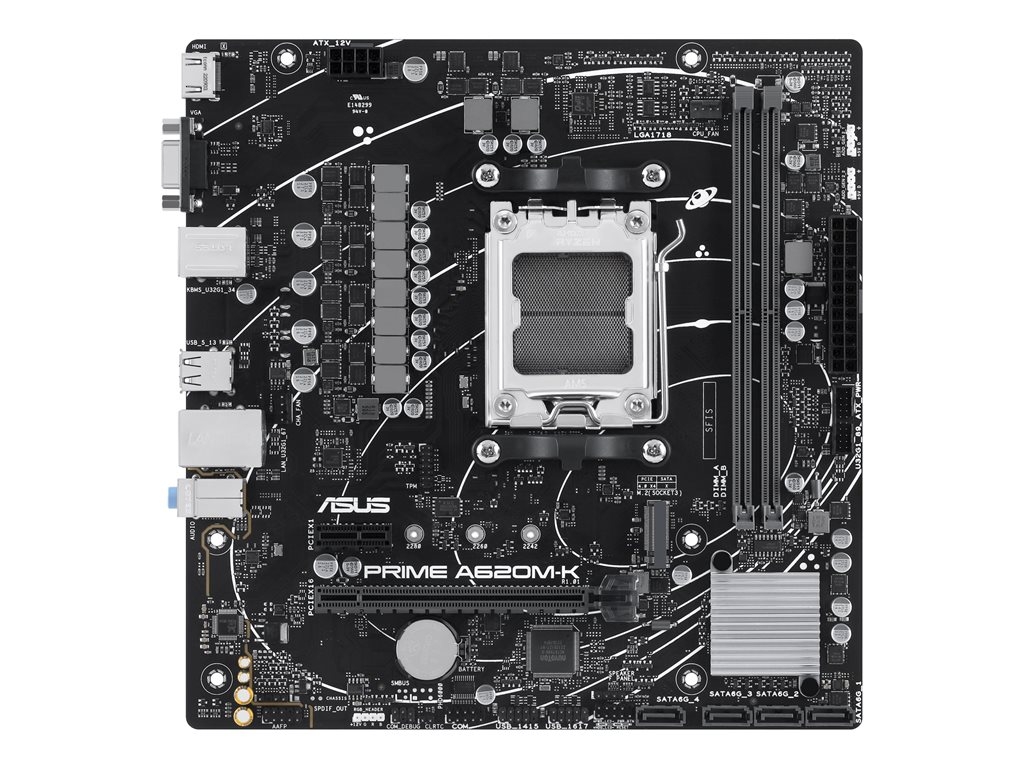

ASUS PRIME A620M-K - motherboard - micro ATX - Socket AM5 - AMD A620
SKU PRIME A620M-K
Product Description: | ASUS PRIME A620M-K - motherboard - micro ATX - Socket AM5 - AMD A620 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD A620 |
Processor Socket: | 1 x Socket AM5 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series, Maximum TDP 120 Watt) |
Max RAM Size: | 96 GB |
RAM Supported: | 2 DIMM slots - DDR5, non-ECC, on-die ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD A620 |
Processor Socket: | Socket AM5 |
Max Processors Qty: | 1 |
Compatible Processors: | Ryzen (supports Ryzen 7000 Series, Maximum TDP 120 Watt) |
Supported RAM | |
Max Size: | 96 GB |
Technology: | DDR5 |
Bus Clock: | 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz |
Supported RAM Integrity Check: | Non-ECC, on-die ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture, AMD EXPO technology |
Audio | |
Type: | HD Audio (8-channel) |
Compliant Standards: | High Definition Audio |
LAN | |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) |
Storage Interfaces: | PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 5 x 7pin SATA - RAID 0 / RAID 1 / RAID 10 |
RAID Features: | AMD RAID Xpert2 Technology |
Interfaces: | 1 x HDMI ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out/headphones - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse |
Internal Interfaces: | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x speaker - header ¦ 1 x SPDIF out - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x serial - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
Sleep / Wake Up: | Wake on PME |
Hardware Features: | ASUS Q-Design, Stack Cool 3+, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, ASUS 5X PROTECTION, Preboot eXecution Environment (PXE), LANGuard, overvoltage protection, AURA RGB Lighting Control, ASUS SafeSlot Core, ASUS Aura Sync, Q-LED Core |
Miscellaneous | |
Included Accessories: | I/O back cover, M.2 screw package |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ASUS TurboV EVO Utility, ASUS CPU-Z, PC Cleaner, WinRAR, ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert |
Width: | 22.6 cm |
Depth: | 22.1 cm |
