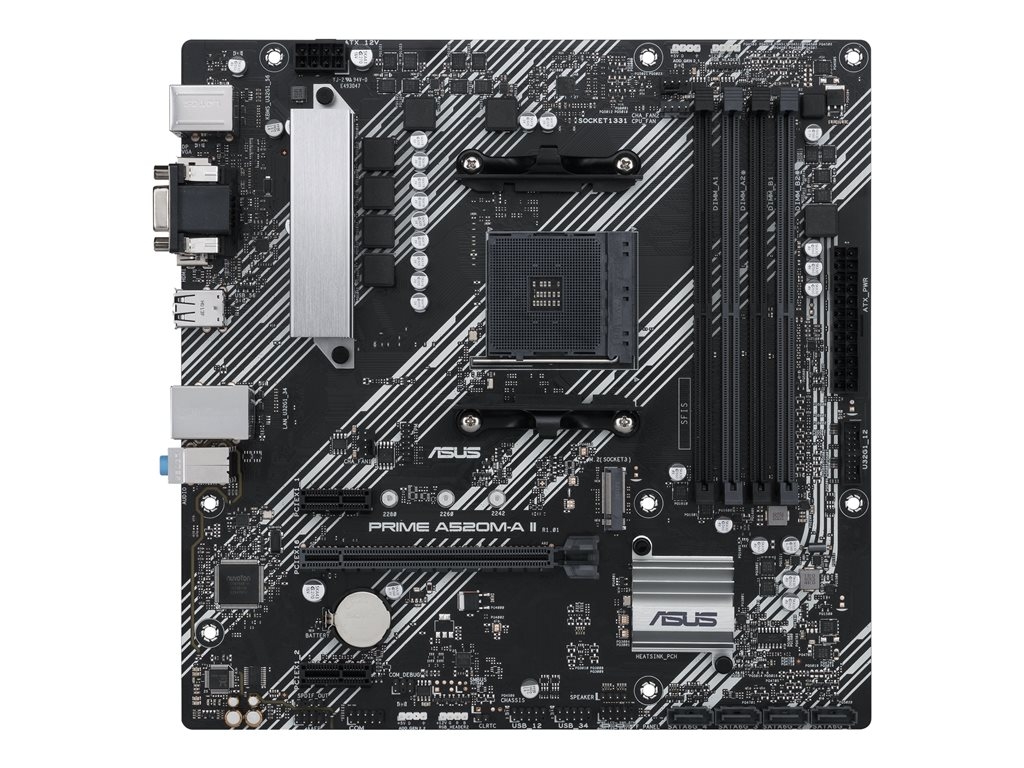

Printers & POSASUS PRIME A520M-A II - motherboard - micro ATX - Socket AM4 - AMD A520
SKU 90MB17H0-M0EAY0
| Product Description: | ASUS PRIME A520M-A II - motherboard - micro ATX - Socket AM4 - AMD A520 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD A520 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4, ECC, non-ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD A520 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2800 MHz, 2666 MHz, 3000 MHz, 3200 MHz, 3333 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4466 MHz (O.C.), 4600 MHz (O.C.), 4800 MHz (O.C.) |
| Supported RAM Integrity Check: | ECC, non-ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887/ALC897 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 3.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x VGA ¦ 1 x DisplayPort ¦ 4 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | UEFI BIOS, ASUS EZ Flash 3 |
| Sleep / Wake Up: | Wake on LAN (WOL) |
| Hardware Features: | LANGuard, jack retasking, audio jack detect technology, Armoury Crate, ASUS TurboV EVO, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Fan Xpert 2+, ASUS EZ DIY, CrashFree BIOS 3, ASUS 5X Protection III, ASUS Overvoltage Protection, ASUS Stainless Steel Back I/O, ASUS SafeSlot Core, Lighting Control, ASUS Q-Design, Q-DIMM, Q-Slot, Preboot eXecution Environment (PXE) |
| Miscellaneous | |
| Included Accessories: | I/O back cover, 1 x M.2 screw |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Suite III, ASUS CPU-Z, ASUS EZ Update, ASUS AI Charger, DAEMON Tools, Norton AntiVirus (Trial), WinRAR, ASUS EZ Flash 3 |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
ASUS Prime series is expertly engineered to unleash the full potential of AMD Ryzen platform. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, Prime A520 series motherboards provide daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features.
- AMD AM4 socket: ready for Ryzen 5000 Series/4000 G-Series/3000 Series desktop processors
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
- Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A
- Aura Sync RGB: onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
The technical details come from 3rd party. edgemo is not responsible for any errors.
