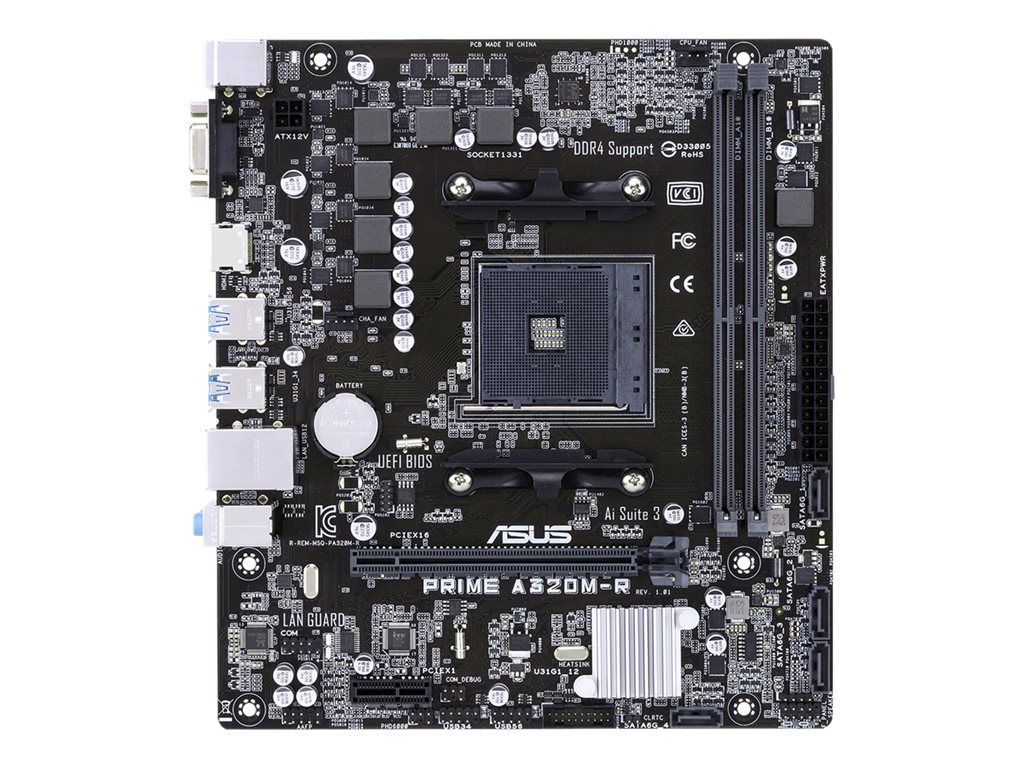

ASUS PRIME A320M-R - motherboard - micro ATX - Socket AM4 - AMD A320
SKU 90MB0XD0-M0ECY0
Product Description: | ASUS PRIME A320M-R - motherboard - micro ATX - Socket AM4 - AMD A320 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD A320 |
Processor Socket: | 1 x Socket AM4 |
Compatible Processors: | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
Max RAM Size: | 32 GB |
RAM Supported: | 2 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD A320 |
Processor Socket: | Socket AM4 |
Max Processors Qty: | 1 |
Compatible Processors: | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
Supported RAM | |
Max Size: | 32 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
Supported RAM Integrity Check: | Non-ECC, ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
Graphics | |
Max Allocated RAM Size: | 2 GB |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC887-VD2 |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Realtek RTL8111H |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 2.0 x1 |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 |
Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x HDMI |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x speaker - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.0 support, ACPI 6.0 support |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | ASUS Q-Design, Q-DIMM, Q-Slot, CrashFree BIOS 3, ASUS Fan Xpert, ASUS DIGI+ VRM, Fanless Design Heatsink, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection II |
Miscellaneous | |
Compliant Standards: | Plug and Play |
Width: | 21.6 cm |
Depth: | 19.3 cm |
Package Type: | Bulk |
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
- Internationally certified business motherboard
- Ultrafast 10 Gbps data-transfer speeds with USB 3.1 Gen 2
- Fastest onboard Wi-Fi up to 433.3 Mbps
- ASUS trouble shooting solution
- 24/7 reliability test
- Protection against moisture and corrosion
- Anti-sulfur resistors
- Pumped-up throughput. 2.5X higher surge tolerance
- World-class circuit-protecting power design
- 3X corrosion-resistance for greater durability
- Electrostatic discharge protection
