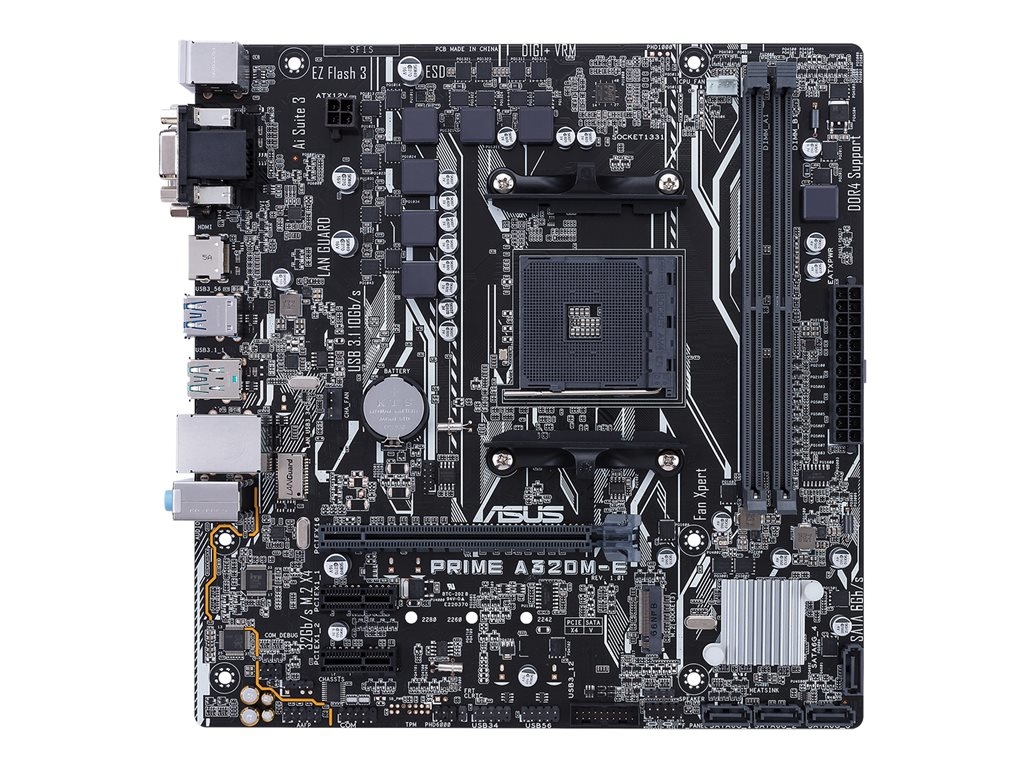

Printers & POSASUS PRIME A320M-E - motherboard - micro ATX - Socket AM4 - AMD A320
SKU 90MB0V10-M0EAY0
| Product Description: | ASUS PRIME A320M-E - motherboard - micro ATX - Socket AM4 - AMD A320 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD A320 |
| Processor Socket: | 1 x Socket AM4 |
| Compatible Processors: | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
| Max RAM Size: | 32 GB |
| RAM Supported: | 2 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | AMD A320 |
| Processor Socket: | Socket AM4 |
| Max Processors Qty: | 1 |
| Compatible Processors: | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
| Supported RAM | |
| Max Size: | 32 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Graphics | |
| Max Allocated RAM Size: | 2 GB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC887 |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Controller: | Realtek RTL8111H |
| Network Interfaces: | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 2 x PCIe 2.0 x1 |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
| Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB 3.1 Gen 2 ¦ 1 x VGA ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 1 x PS/2 mouse |
| Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.0 support, ACPI 6.1 support |
| Hardware Features: | ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS Fan Xpert, ASUS DIGI+ VRM, Fanless Design Heatsink, ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection III, ASUS SafeSlot Core |
| Miscellaneous | |
| Included Accessories: | 1 x M.2 screw, I/O back cover |
| Cables Included: | 2 x Serial ATA cable |
| Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Flash 3 |
| Compliant Standards: | Plug and Play |
| Width: | 22.6 cm |
| Depth: | 22.1 cm |
ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences.
- Built to last
- Incredible protection
- Higher surge tolerance
- Dedicated CPU and case fan controls
The technical details come from 3rd party. edgemo is not responsible for any errors.
