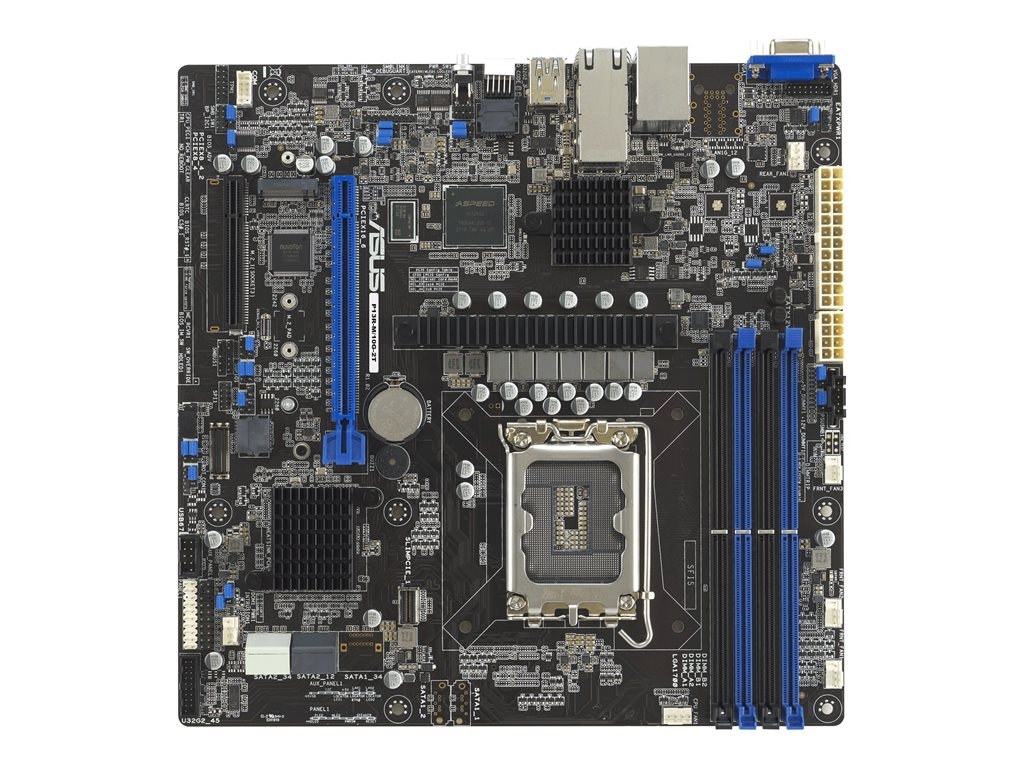

Printers & POSASUS P13R-M/10G-2T - motherboard - micro ATX - LGA1700 Socket - C262
SKU 90SB0CC0-M0UAY0
| Product Description: | ASUS P13R-M/10G-2T - motherboard - micro ATX - LGA1700 Socket - C262 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel C262 |
| Processor Socket: | 1 x LGA1700 Socket |
| Compatible Processors: | Pentium, Xeon E (supports Intel Xeon E-2400 CPUs) |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR5, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel C262 |
| Processor Socket: | LGA1700 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Xeon E (supports Intel Xeon E-2400 CPUs) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR5 |
| Bus Clock: | 2200 MHz, 1800 MHz, 2000 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Graphics | |
| Graphics Controller: | ASPEED AST2600 |
| Dedicated Video Memory: | 64 MB |
| LAN | |
| Network Controller: | Intel X710-AT2 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x M.2 socket (2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x8 (x4 mode) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces: | 1 x VGA ¦ 3 x USB 3.2 Gen 2 ¦ 2 x LAN (10Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet)/management |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x USB-C 3.2 Gen 2 - header ¦ 1 x SPI - header ¦ 1 x serial - header ¦ 1 x VGA - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| BIOS Features: | iKVM support |
| Hardware Monitoring: | CPU core temperature, fan control |
| Hardware Features: | Q-Code, power button, Intel Turbo Boost Technology |
| Miscellaneous | |
| Included Accessories: | IO shield |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
The ASUS P13R-M/10G-2T motherboard supports a variety of features designed for performance and efficiency. With compatibility for Intel Xeon E-2400 CPUs, this micro ATX motherboard is suited for demanding applications. It supports DDR5 SDRAM technology with speeds up to 2200 MHz, providing a robust platform for intensive tasks.
Connectivity options are extensive, featuring dual 10 Gigabit Ethernet ports and multiple USB interfaces including USB-C 3.2 Gen 2. The storage solutions include four Serial ATA-600 ports and two M.2 sockets, enabling flexible storage configurations including RAID support. With comprehensive hardware monitoring and BIOS features like iKVM support, the P13R-M/10G-2T is designed for those who seek reliability and performance in their computing environment.
Connectivity options are extensive, featuring dual 10 Gigabit Ethernet ports and multiple USB interfaces including USB-C 3.2 Gen 2. The storage solutions include four Serial ATA-600 ports and two M.2 sockets, enabling flexible storage configurations including RAID support. With comprehensive hardware monitoring and BIOS features like iKVM support, the P13R-M/10G-2T is designed for those who seek reliability and performance in their computing environment.
- Supports Intel Xeon E-2400 CPUs for performance computing
- Features dual 10 Gigabit Ethernet for networking
- Equipped with four SATA-600 ports and two M.2 sockets for storage options
- Supports DDR5 SDRAM with speeds up to 2200 MHz for multitasking
- Offers hardware monitoring for system management
The technical details come from 3rd party. edgemo is not responsible for any errors.
