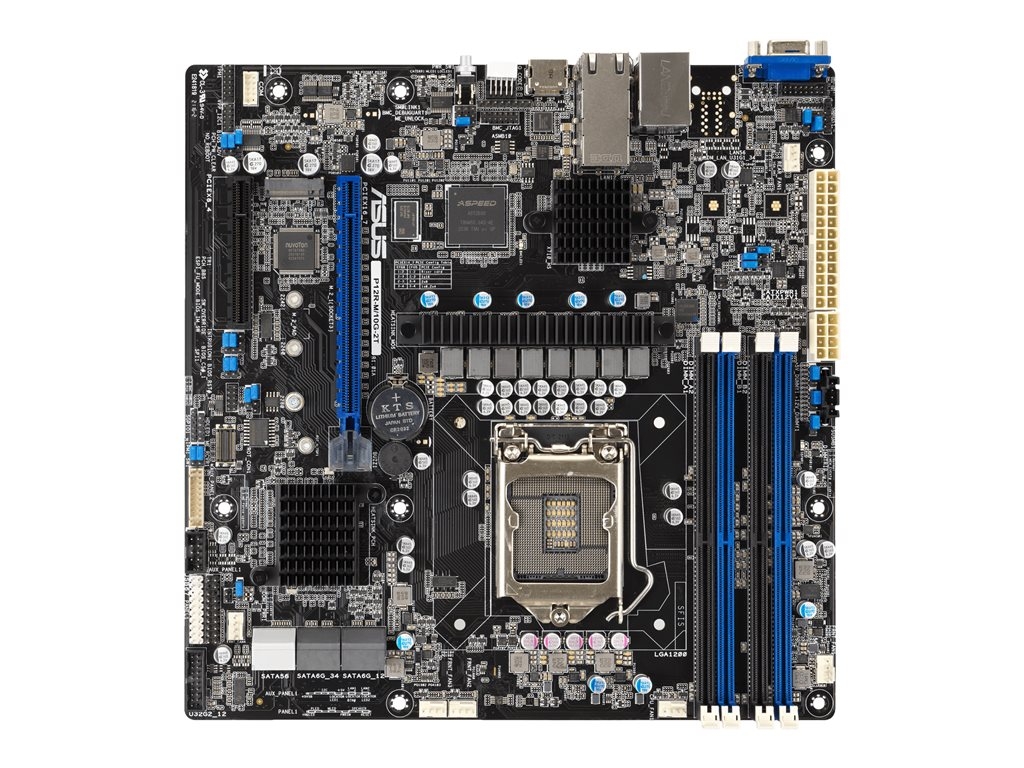

Printers & POSASUS P12R-M/10G-2T - motherboard - micro ATX - LGA1200 Socket - C252
SKU 90SB0AC0-M1UAY0
| Product Description: | ASUS P12R-M/10G-2T - motherboard - micro ATX - LGA1200 Socket - C252 |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel C252 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | Pentium, Xeon E |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4 unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - micro ATX |
| Chipset Type: | Intel C252 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Xeon E |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2933 MHz, 2666 MHz, 3200 MHz |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Graphics | |
| Graphics Controller: | ASPEED AST2600 |
| Dedicated Video Memory: | 64 MB |
| LAN | |
| Network Controller: | Intel X710-AT2 |
| Network Interfaces: | 2 x 10 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x8 (x4 mode) |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA ¦ PCIe -connectors: 1 x M.2 |
| Interfaces: | 2 x LAN (10Gigabit Ethernet) ¦ 1 x management ¦ 1 x HDMI ¦ 1 x VGA ¦ 2 x USB 3.2 Gen 2 |
| Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories: | ASUS ASMB10-IKVM management card, I/O back cover |
| Width: | 24.4 cm |
| Depth: | 24.4 cm |
| Weight: | 760 g |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 1.3 kg |
The ASUS P12R-M/10G-2T motherboard offers robust performance for various computing needs. Its micro ATX form factor supports a range of processors, including Pentium and Xeon E, making it suitable for both entry-level and demanding applications. Equipped with an Intel C252 chipset, this motherboard facilitates configuration flexibility with four DIMM slots, allowing the use of DDR4 SDRAM at speeds of up to 3200 MHz, enhancing system responsiveness and efficiency.
The connectivity options of the ASUS P12R-M/10G-2T include dual 10 Gigabit Ethernet ports, multiple USB 3.2 ports, and HDMI and VGA outputs, ensuring users have diverse options for networking and peripheral connections. The integration of both SATA and M.2 storage interfaces delivers seamless data transfer speeds, meeting the requirements for modern storage solutions. This combination makes the ASUS P12R-M/10G-2T a suitable choice for users seeking a reliable and customizable foundation for their systems.
The connectivity options of the ASUS P12R-M/10G-2T include dual 10 Gigabit Ethernet ports, multiple USB 3.2 ports, and HDMI and VGA outputs, ensuring users have diverse options for networking and peripheral connections. The integration of both SATA and M.2 storage interfaces delivers seamless data transfer speeds, meeting the requirements for modern storage solutions. This combination makes the ASUS P12R-M/10G-2T a suitable choice for users seeking a reliable and customizable foundation for their systems.
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
- Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
- Dual Intel X710AT Gigabit Ethernet with teaming support
- One M.2 for up to 32 Gbps performance for faster OS booting
- HDMI 1.4 support for high-resolution display maintenance and monitoring
- Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
The technical details come from 3rd party. edgemo is not responsible for any errors.
