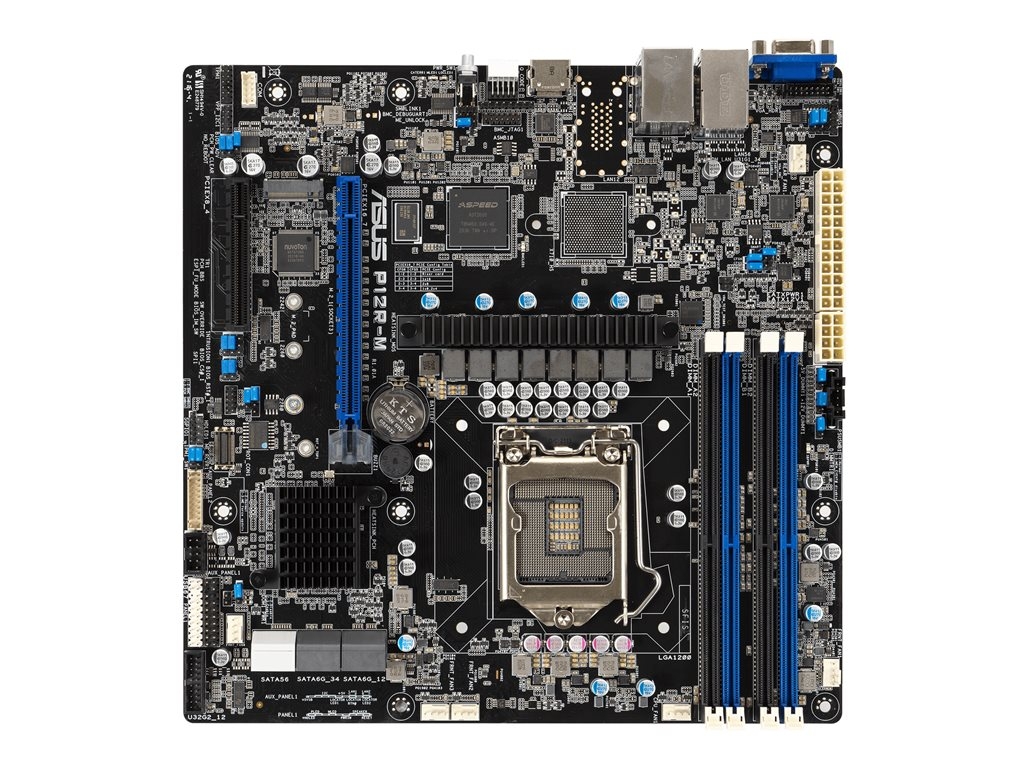

ASUS P12R-M - motherboard - micro ATX - LGA1200 Socket - C252

SKU 90SB09X0-M1UAY0
Product Description:ASUS P12R-M - motherboard - micro ATX - LGA1200 Socket - C252
Product Type:Motherboard - micro ATX
Chipset Type:Intel C252
Processor Socket:1 x LGA1200 Socket
Compatible Processors:Pentium, Xeon E
Max RAM Size:128 GB
RAM Supported:4 DIMM slots - DDR4 unbuffered
Not in stock
  • Specifications
  • Description
General
Product Type:Motherboard - micro ATX
Chipset Type:Intel C252
Processor Socket:LGA1200 Socket
Max Processors Qty:1
Compatible Processors:Pentium, Xeon E
Supported RAM
Max Size:128 GB
Technology:DDR4
Bus Clock:2666 MHz, 2933 MHz, 3200 MHz
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture
Graphics
Graphics Controller:ASPEED AST2600
Dedicated Video Memory:64 MB
LAN
Network Controller:2 x Intel I210AT
Network Interfaces:2 x Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x8 (x4 mode)
Storage Interfaces:SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe -connectors: 1 x M.2
Interfaces:2 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x HDMI ¦ 2 x USB 3.2 Gen 2
Internal Interfaces:2 x USB 2.0 - header ¦ 1 x serial - header ¦ 2 x USB 3.2 Gen 2 - header ¦ 1 x VGA - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
Hardware Monitoring:CPU core temperature, CPU fan tachometer, chassis fan tachometer
Hardware Features:Platform Firmware Resilience (PFR)
Miscellaneous
Included Accessories:I/O back cover
Software Included:Drivers & Utilities
Width:24.4 cm
Depth:24.4 cm
vis mere
  • Ideal for remote office/branch office use and everyday business environments
  • Powered by eight-core Intel Xeon E-2300-series processor with support for up to 95 W TDP
  • Flexible expandability with six native SATA HDDs and two PCI Express 4.0 slots
  • Dual Intel I210AT Gigabit Ethernet with teaming support
  • One M.2 for up to 32 Gbps performance for faster OS booting
  • HDMI 1.4 support for high-resolution display maintenance and monitoring
  • Onboard ASUS ASMB10-iKVM with ASPEED AST2600 controller for out-of-band management
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency




The technical details come from 3rd party. edgemo is not responsible for any errors.
