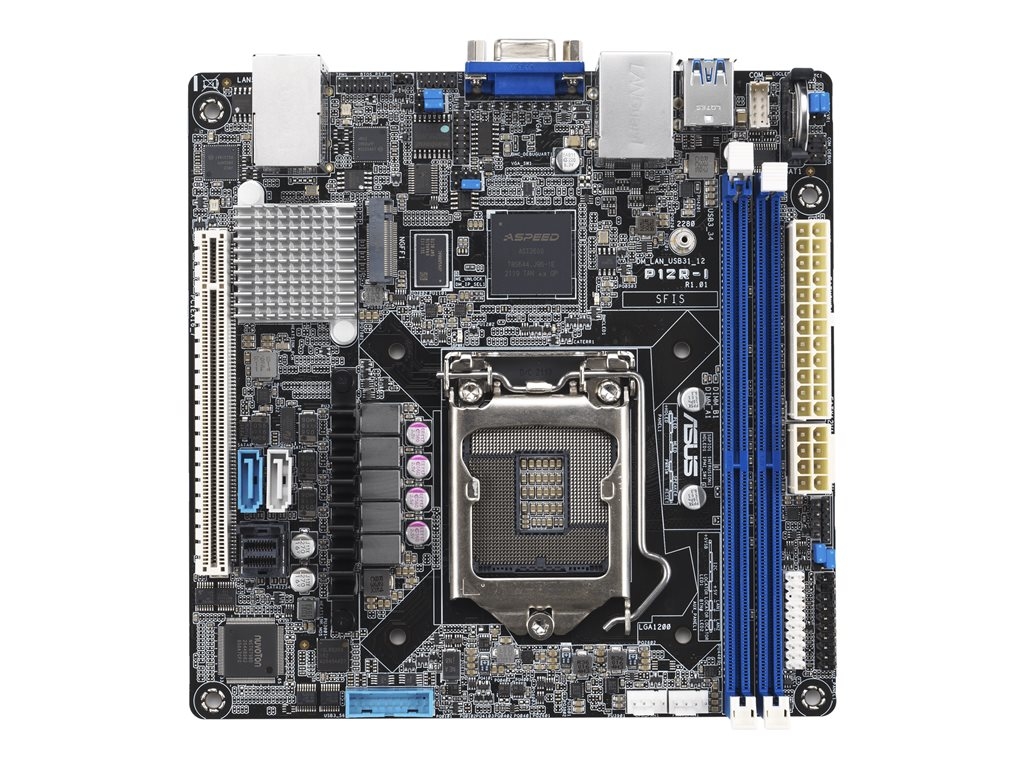

Printers & POSASUS P12R-I - motherboard - mini ITX - LGA1200 Socket - C252
SKU 90SB0A70-M0UAY0
| Product Description: | ASUS P12R-I - motherboard - mini ITX - LGA1200 Socket - C252 |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel C252 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | Pentium, Xeon E |
| Max RAM Size: | 64 GB |
| RAM Supported: | 2 DIMM slots - DDR4, ECC, unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - mini ITX |
| Chipset Type: | Intel C252 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Xeon E |
| Supported RAM | |
| Max Size: | 64 GB |
| Technology: | DDR4 |
| Bus Clock: | 2666 MHz, 2933 MHz, 3200 MHz |
| Supported RAM Integrity Check: | ECC |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Graphics | |
| Graphics Controller: | ASPEED AST2600 |
| Dedicated Video Memory: | 64 MB |
| LAN | |
| Network Controller: | 2 x Intel I210AT |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 |
| Storage Interfaces: | SATA-600 -connectors: 2 x 7pin SATA, 1 x mini-SAS HD - 6 devices ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 |
| Internal Interfaces: | 2 x USB 3.2 Gen 1 - header ¦ 1 x VGA - header ¦ 1 x serial - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Features | |
| Hardware Monitoring: | CPU core temperature, fan control |
| Miscellaneous | |
| Included Accessories: | I/O back cover, ASUS ASMB10-IKVM management card |
| Width: | 16.5 cm |
| Depth: | 16.5 cm |
The technical details come from 3rd party. edgemo is not responsible for any errors.
