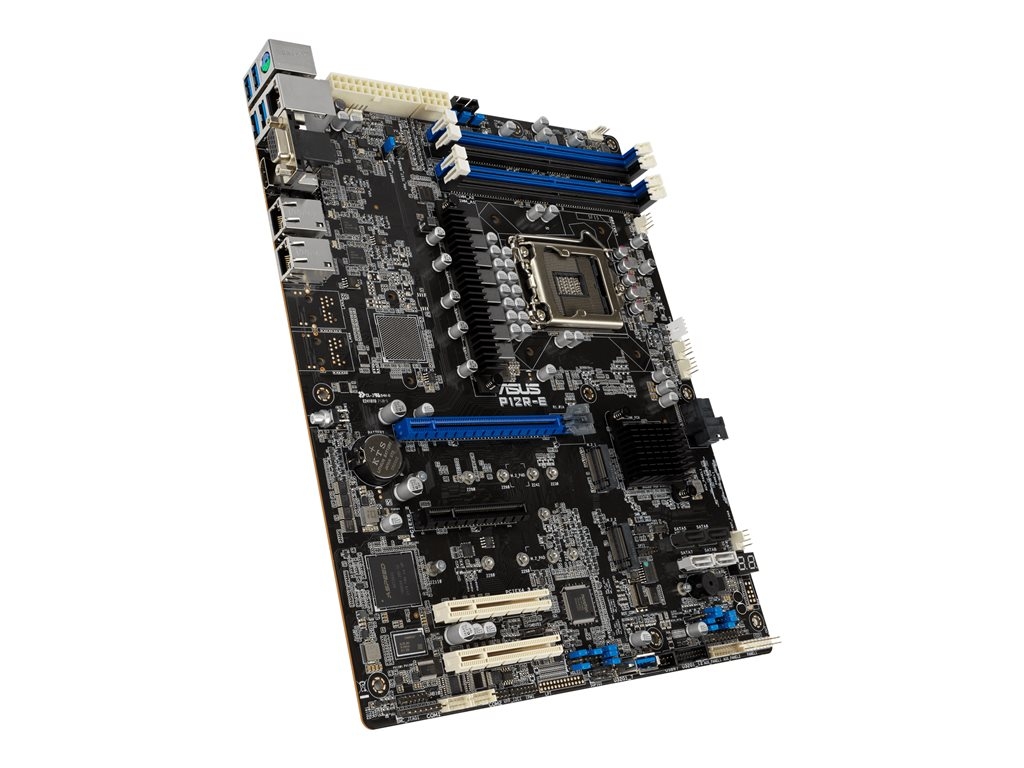

Printers & POSASUS P12R-E - motherboard - ATX - LGA1200 Socket - C256
SKU 90SB0A90-M1UAY0
| Product Description: | ASUS P12R-E - motherboard - ATX - LGA1200 Socket - C256 |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel C256 |
| Processor Socket: | 1 x LGA1200 Socket |
| Compatible Processors: | Pentium, Xeon E |
| Max RAM Size: | 128 GB |
| RAM Supported: | 4 DIMM slots - DDR4 unbuffered |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel C256 |
| Processor Socket: | LGA1200 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Xeon E |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2666 MHz, 2933 MHz, 3200 MHz |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture |
| Graphics | |
| Graphics Controller: | ASPEED AST2600 |
| Dedicated Video Memory: | 64 MB |
| LAN | |
| Network Controller: | 2 x Intel I210AT |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 (x16 mode (x8 mode if PCI Express 4.0 x8 slot is occupied)) ¦ 1 x PCIe 4.0 x8 ¦ 2 x PCIe 3.0 x8 (x4 mode) |
| Storage Interfaces: | SATA-600 -connectors: 4 x 7pin SATA, 1 x mini-SAS HD - 8 devices ¦ SATA-600 / PCIe 4.0 -connectors: 2 x M.2 |
| Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x HDMI ¦ 1 x VGA ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 3.1 Gen 2 |
| Internal Interfaces: | 1 x serial - header ¦ 2 x USB 3.2 Gen 1 - header |
| Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
| Miscellaneous | |
| Included Accessories: | I/O back cover, ASUS ASMB10-IKVM management card |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Weight: | 760 g |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 1.3 kg |
- Ideal for remote office/branch office (ROBO) use and everyday business environments
- Flexible expandability with eight native SATA HDDs and two PCIe Gen 4 slots
- Dual Gigabit Ethernet with teaming support
- Dual M.2 support
- HDMI support for high-resolution display maintenance and monitoring
The technical details come from 3rd party. edgemo is not responsible for any errors.
