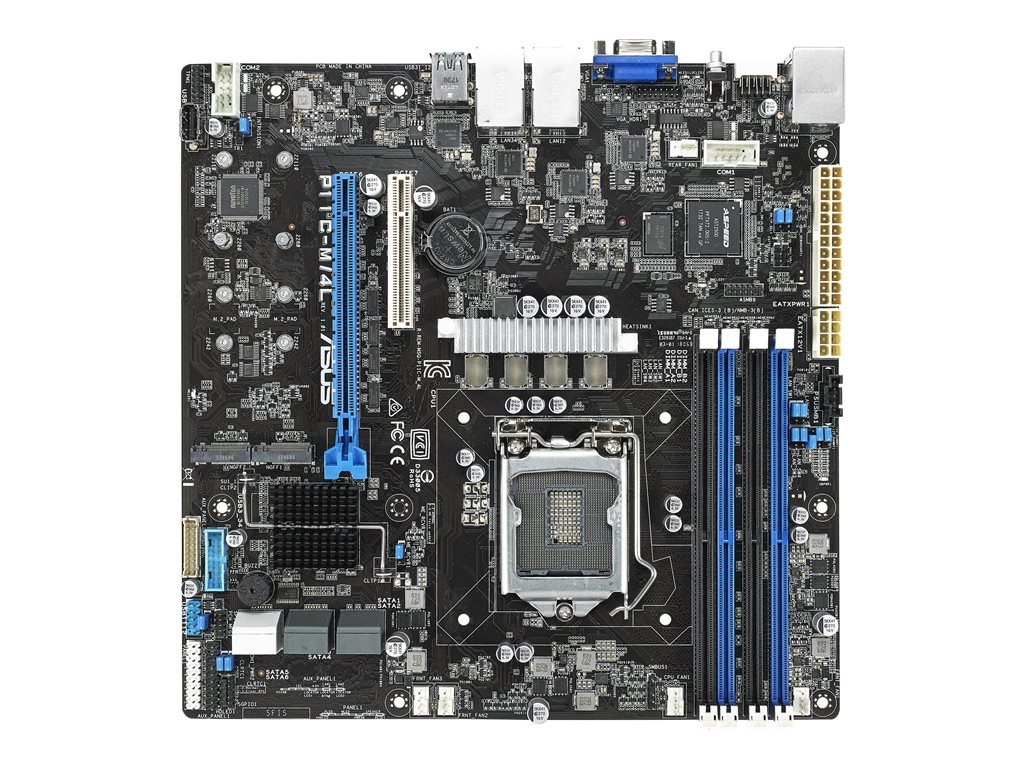

ASUS P11C-M/4L - motherboard - micro ATX - LGA1151 Socket - C242

SKU 90SB06R0-M0UAY0
Product Description:ASUS P11C-M/4L - motherboard - micro ATX - LGA1151 Socket - C242
Product Type:Motherboard - micro ATX
Chipset Type:Intel C242
Processor Socket:1 x LGA1151 Socket
Compatible Processors:Pentium, Celeron, Core i3, Xeon E3-2100 series (Maximum TDP 95 Watt)
Max RAM Size:64 GB
RAM Supported:4 DIMM slots - DDR4, non-ECC, ECC, unbuffered
07-04-2024
  • Specifications
  • Description
General
Product Type:Motherboard - micro ATX
Chipset Type:Intel C242
Processor Socket:LGA1151 Socket
Max Processors Qty:1
Compatible Processors:Pentium, Celeron, Core i3, Xeon E3-2100 series (Maximum TDP 95 Watt)
Supported RAM
Max Size:64 GB
Technology:DDR4
Bus Clock:2400 MHz, 2666 MHz
Supported RAM Integrity Check:Non-ECC, ECC
Registered or Buffered:Unbuffered
Features:Dual channel memory architecture
Graphics
Graphics Controller:ASPEED AST2500
Dedicated Video Memory:32 MB
LAN
Network Controller:4 x Intel I210AT
Network Interfaces:4 x Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if PCI Express 3.0 x8 slot is occupied)) ¦ 1 x PCIe 3.0 x8
Storage Interfaces:SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 2 x M.2
RAID Features:Intel Rapid Storage Technology
Interfaces:1 x management ¦ 4 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 3.1 Gen 2 ¦ 1 x VGA
Internal Interfaces:2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 2 x serial - header ¦ 1 x USB 3.0 - Type A ¦ 1 x VGA - header
Power Connectors:24-pin main power connector, 8-pin ATX12V connector
Features
Hardware Monitoring:CPU core temperature, CPU fan tachometer
Hardware Features:ProCool Power Connector, Rack Ready, TPM-M 2.0 ready
Miscellaneous
Width:24.4 cm
Depth:24.4 cm
vis mere
P11C-M/4L is a server motherboard based on the Intel Xeon E platform and Intel C242 chipset offering quad server-class Intel Ethernet and flexible expandability with dual M.2, six SATA 6G, two PCIe. The 9.6" x 9.6" micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density. The layout is rack-optimized placement where the CPU and memory are placed in a parallel arrangement directly behind the fan inlet to promote maximum cooling for excellent thermal efficiency.
P11C-M/4L comes with dual M.2 support up to 22110-length M.2 drives via PCIe or SATA. In performance-maximizing RAID 0 configurations with dual M.2 SSDs, write speeds are up to 40% faster than a single M.2 SSD drive setup and read operations are an astonishing 84% faster. Or, for total reassurance, pair your M.2 devices into a RAID 1 configuration for instant data redundancy.
P11C-M/4L adopts the first-to-market NVMe technology to reduce latency, lower power consumption and provides faster CPU to data storage performance to gain larger throughputs. By offering flexible NVMe upgrade package of switching storage interface including PCIe to U.2 add-on card or M.2 to U.2 adapter, P11C-M/4L features shared common backplane to improve drive choices.
P11C-M/4L features quad server-class Intel Ethernet ports with the I210 controllers and teaming support that speed up the network bandwidth and the failover function ensures uninterrupted network connection. This suits virtualization applications perfectly which requires ultrafast and reliable network.
P11C-M/4L supports TPM-M 2.0 with a 14-1 TPM header to securely store keys, digital certificates, passwords and data. It helps to enhance network security, protect digital identities, and ensure platform integrity.
P11C-M/4L features an optional embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses. The optional ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
With its power button located on the front I/O panel, P11C-M/4L is designed to provide easier maintenance and deployment for diverse applications.
P11C-M/4L provides instant system information during initialization as well as any unusual diagnostic results for more efficient IT operation and easy troubleshooting.
ASUS ProCool is designed without hollow area, this enables lower impedance, facilitates faster heat dissipation, resulting in cooler operating temperature. Reduces power loss and increases cost savings.
  • Micro-ATX compact server board with multiple expandability options
  • Dual M.2 for up to 32Gbps performance and data redundancy
  • NVMe high-speed storage interface
  • Quad Intel I210AT Gigabit Ethernet
  • TPM-M 2.0 ready
  • Comprehensive IT infrastructure management
  • Enhanced serviceability
  • Quick initialization guidance
  • ASUS ProCool connector
