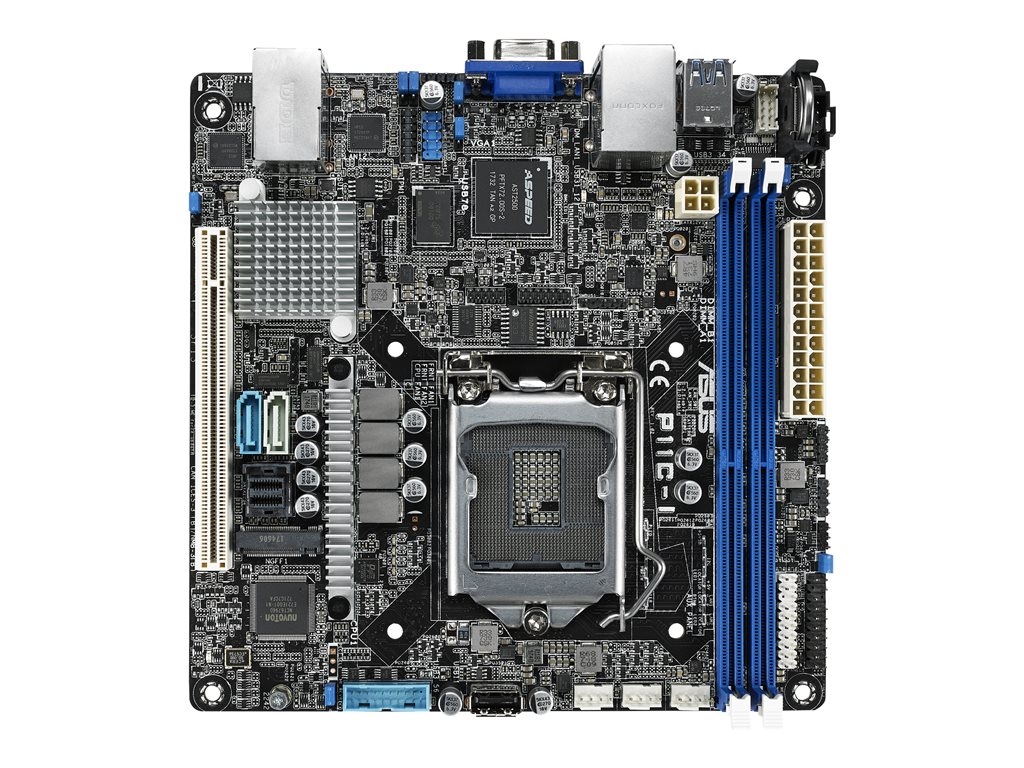

ASUS P11C-I - motherboard - mini ITX - LGA1151 Socket - C242
SKU 90SB06T0-M0UAY0
Product Description: | ASUS P11C-I - motherboard - mini ITX - LGA1151 Socket - C242 |
Product Type: | Motherboard - mini ITX |
Chipset Type: | Intel C242 |
Processor Socket: | 1 x LGA1151 Socket |
Compatible Processors: | Pentium, Celeron, Core i3, Xeon E (Maximum TDP 95 Watt) |
Max RAM Size: | 32 GB |
RAM Supported: | 2 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - mini ITX |
Chipset Type: | Intel C242 |
Processor Socket: | LGA1151 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | Pentium, Celeron, Core i3, Xeon E (Maximum TDP 95 Watt) |
Supported RAM | |
Max Size: | 32 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2666 MHz |
Supported RAM Integrity Check: | Non-ECC, ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
Graphics | |
Graphics Controller: | ASPEED AST2500 |
Dedicated Video Memory: | 32 MB |
LAN | |
Network Controller: | 2 x Intel I210AT |
Network Interfaces: | 2 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 |
Storage Interfaces: | SATA-600 -connectors: 2 x 7pin SATA, 1 x mini-SAS HD - 6 devices - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe -connectors: 1 x M.2 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 1 x management ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 2 x USB 3.1 Gen 2 ¦ 1 x VGA |
Internal Interfaces: | 1 x USB 3.0 - Type A |
Power Connectors: | 4-pin ATX12V connector, 20-pin main power connector |
Features | |
Hardware Monitoring: | CPU core temperature, CPU fan tachometer |
Hardware Features: | ProCool Power Connector, Rack Ready, TPM-M 2.0 ready |
Miscellaneous | |
Width: | 17 cm |
Depth: | 17 cm |
P11C-I is a server motherboard offering dual server-class Intel Ethernet and flexible expandability. The Mini-ITX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density.
- Rack-optimized design maximizes cooling for excellent thermal efficiency
- Flexible expandability with 6 SATA HDDs and 1 PCIe Gen3 slot
- Dual Intel Gigabit Ethernet with teaming support
- Accelerated data-transfer speeds of up to 32Gbps with M.2
- High-speed mini-SAS HD connections
- TPM-M 2.0 support for enhanced platform integrity
