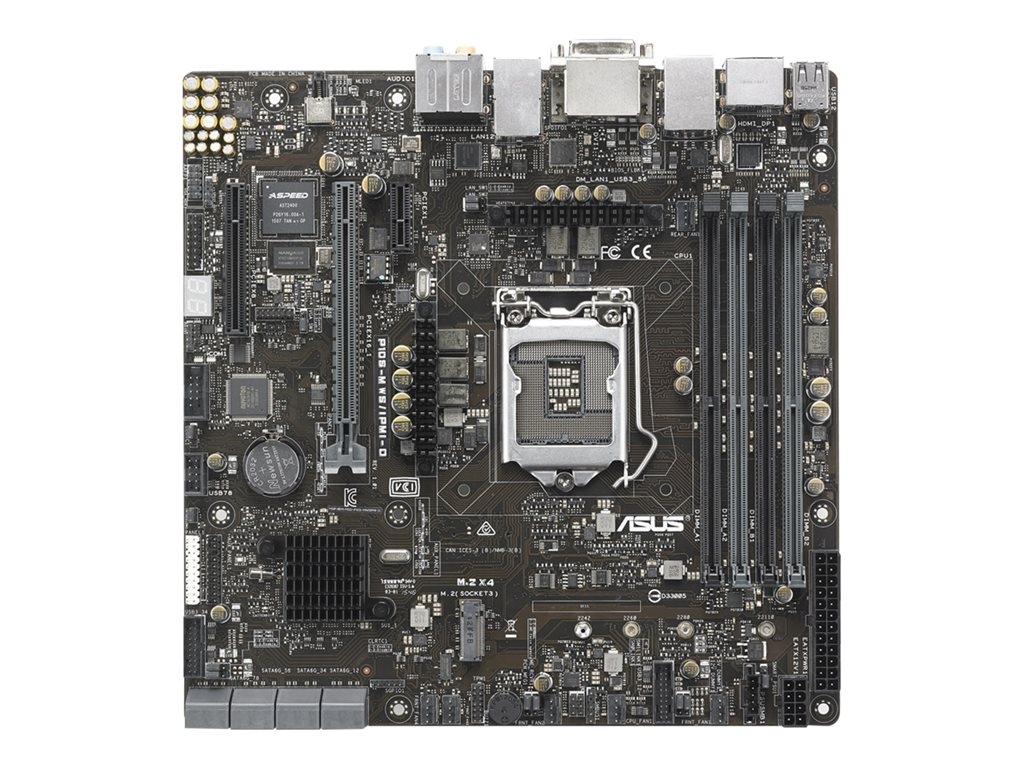

ASUS P10S-M WS/IPMI-O - motherboard - micro ATX - LGA1151 Socket - C236
SKU 90SB05M0-M0EAY0
Product Description: | ASUS P10S-M WS/IPMI-O - motherboard - micro ATX - LGA1151 Socket - C236 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel C236 |
Processor Socket: | 1 x LGA1151 Socket |
Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 v5 series, Xeon E3-1200 v6 series (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Max RAM Size: | 64 GB |
RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel C236 |
Processor Socket: | LGA1151 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7, Xeon E3-1200 v5 series, Xeon E3-1200 v6 series (supports 6th and 7th Generation Intel Core i3 / i5 / i7 / Pentium / Celeron) |
Supported RAM | |
Max Size: | 64 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz |
Supported RAM Integrity Check: | Non-ECC, ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
Graphics | |
Max Allocated RAM Size: | 512 MB |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC1150 |
Compliant Standards: | DTS Connect, High Definition Audio, DTS Studio Sound |
LAN | |
Network Controller: | Intel I210 |
Network Interfaces: | 2 x Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x1 ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (x4 mode) |
Storage Interfaces: | SATA-600 -connectors: 8 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
RAID Features: | Intel Rapid Storage Technology |
Interfaces: | 2 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x DVI-D ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x USB 2.0 ¦ 1 x TOSLINK ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (side surround) - mini-jack ¦ 1 x management |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 4 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPDIF out - header ¦ 1 x VGA - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | WfM 2.0 support, ASUS EZ Flash, IPMI support, ASUS Quiet Thermal Solution, ACPI 5.0a support, DMI 3.0 support, SMBIOS 3.0 support |
Sleep / Wake Up: | Wake on LAN (WOL), wake on ring (WOR), wake on PME |
Hardware Features: | Jack retasking, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, Teaming Technology, Intel Turbo Boost Technology, Intel Clear Video HD Technology, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, Preboot eXecution Environment (PXE), Aspeed AST2400 Controller |
Miscellaneous | |
Compliant Standards: | Plug and Play, ACPI 5.0a |
Width: | 24.4 cm |
Depth: | 24.4 cm |
P10S-M WS/IPMI-O is the workstation board that's perfect for media server, cloud gaming, video streaming and so much more. Its thoughtful layout maximizes accessibility to adjust inside temperature, which is great for rack-mounted configuration - so it's ready to meet enterprise or academia need.
With x4 PCI Express 3.0 bandwidth, one M.2 supports 32 Gbit/s data-transfer speeds in Native NVMe - that's up to 5.3X faster than traditional SSDs. The powerful signal also supports the very latest 2.5-inch NVMe SSDs technology via ASUS M. 2-NVME1 (2242) for quick, simple setup. Furthermore, the M.2 is designed up to 110mm, which is provided most of choices for customers installing various SSD.
The P10S-M WS/IPMI-O features Intel Socket 1151 with the C236 chipset specially-designed for workstations. It supported latest API like DirectX 3D 2015, OGL 4.4, OpenGL ES 3.0 and OpenCL2.1. ISV application testing and certification with integrated graphics cores on E3-1200 v5/v6 processors are perfect for entry-level workstations and software such as Autodesk AutoCAD, Autodesk Maya and Adobe After Effects CC, etc. The P10S-M WS/IPMI-O is your best choice for a DIY workstation build that rivals top-tier pre-built workstations.
With x4 PCI Express 3.0 bandwidth, one M.2 supports 32 Gbit/s data-transfer speeds in Native NVMe - that's up to 5.3X faster than traditional SSDs. The powerful signal also supports the very latest 2.5-inch NVMe SSDs technology via ASUS M. 2-NVME1 (2242) for quick, simple setup. Furthermore, the M.2 is designed up to 110mm, which is provided most of choices for customers installing various SSD.
The P10S-M WS/IPMI-O features Intel Socket 1151 with the C236 chipset specially-designed for workstations. It supported latest API like DirectX 3D 2015, OGL 4.4, OpenGL ES 3.0 and OpenCL2.1. ISV application testing and certification with integrated graphics cores on E3-1200 v5/v6 processors are perfect for entry-level workstations and software such as Autodesk AutoCAD, Autodesk Maya and Adobe After Effects CC, etc. The P10S-M WS/IPMI-O is your best choice for a DIY workstation build that rivals top-tier pre-built workstations.
- Design for rack optimized solution with out-of band remote management
- Accelerate to 32 Gbit/s data-transfer speeds with M.2 native NVMe supported
- Optimized integrated graphic power supported latest API
- Drive three independent displays simultaneously with HDMI, DisplayPort, DVI-D
