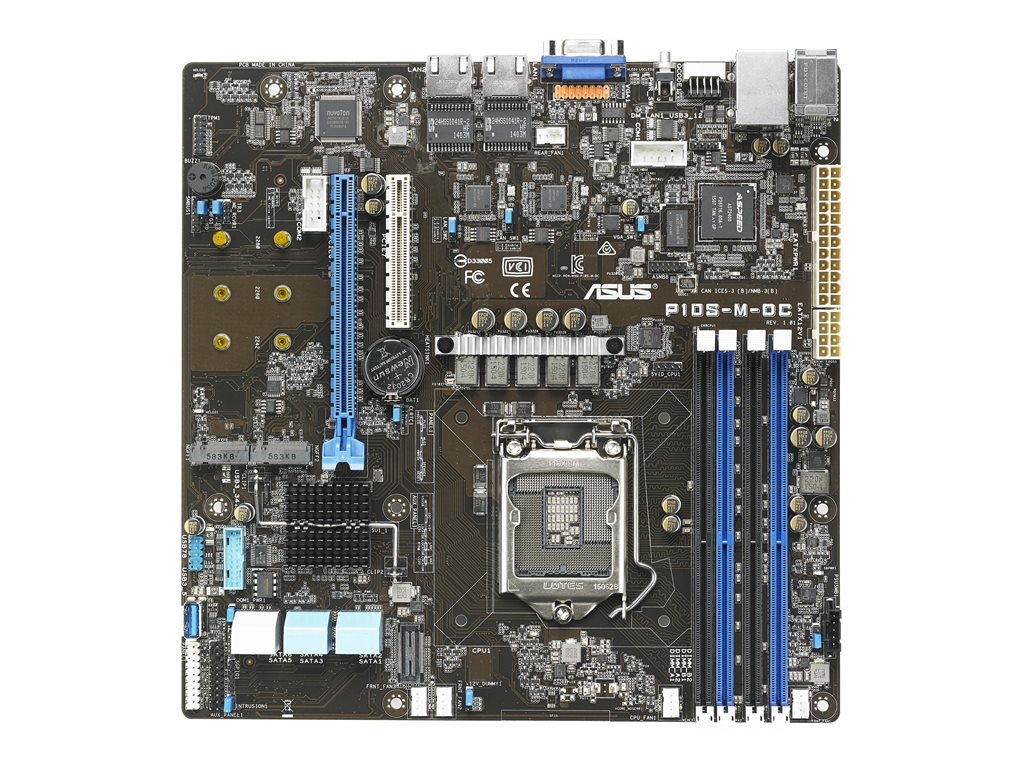

ASUS P10S-M - motherboard - micro ATX - LGA1151 Socket - C232

The ASUS P10S-M is a platform server board based on the C232 chipset that provides dual server-class Ethernet, native 6 SATA 6G, and 4 PCI Express 3.0 which can fulfill various requirements. The 9.6" x 9.6" micro ATX form factor can be easily integrated in short-depth chassis to greatly increase rack compute density. Next-Gen Storage technology - NVMe is where the industry is headed. By taking NVM technology closer to the CPU with the benefits of less latency and higher maximum bandwidth, NVMe solution is a fast internal storage interface. To implement NVMe application on P10S-M, users can directly plug the PCIeNVMe devices.
ASUS P10S-M server board is designed with the platinum power solution with the hand-chosen components and provide titanium efficiency which is up to 92%. The platinum power solution consists of 3 pillars to achieve the 92% platinum efficiency. 12K solid capacitors which are able to withstand up to 1,200,000 hours of temperatures as high as 65°C. The 3rd generation Beat Thermal Choke with lower DCR and result in lower choke temperatures enhance power efficiency. ASUS DIGI+ VRM is digital VR controller precisely provide the accurate voltage/current that CPU require to reduce switching loss. Therefore, using in non-stop server machine running 24 hours per day, it will reduce electronic cost for customers in this generation products. The ASUS P10 series features quick initialization guidance which let users realize system initialization state in seconds. Turn on the power button comes with 3 key information showing on the screen at the same time: progress bar showcases the booting status, BMC IP address if ASMB module is mounted on the server and 2-digit POST code messages are available to give users a total understanding of startup process and to clearly indicate boot-up status which is easy for troubleshooting.

• Cost-effective driven
• uATX compact size
• Complete remote management saving time and efforts
