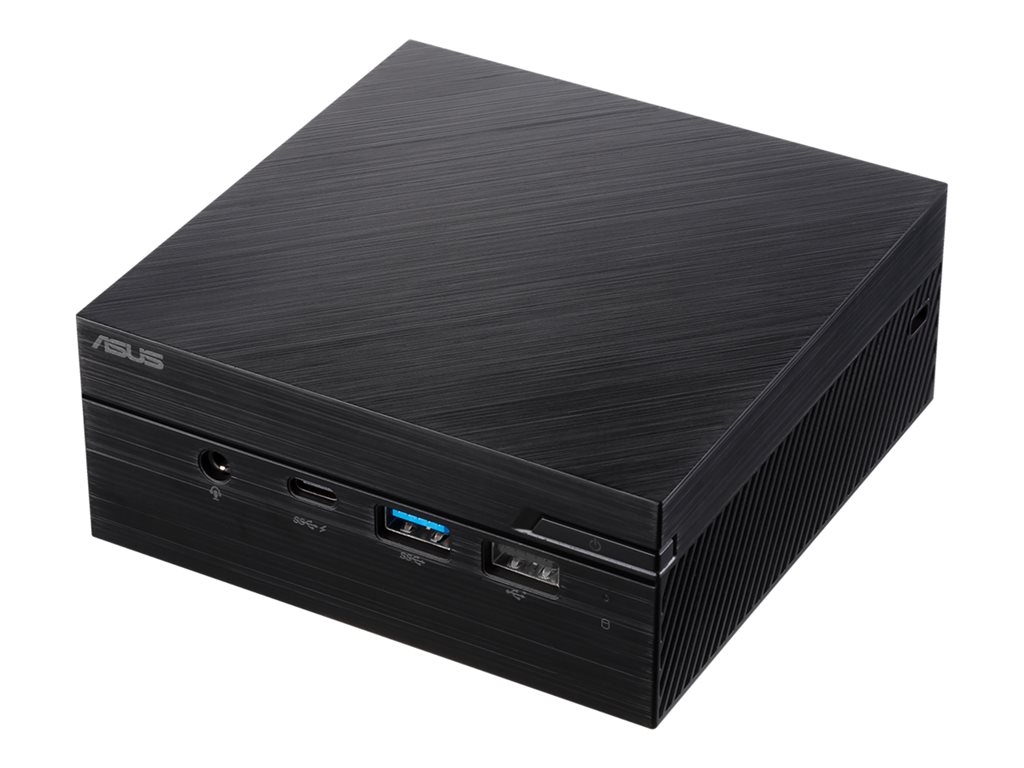

ASUS Mini PC PN60 B5059ZD - mini PC - Core i5 8250U 1.6 GHz - 8 GB - SSD 256 GB
SKU 90MS01D1-M00590
Product Description: | ASUS Mini PC PN60 B5059ZD - mini PC - Core i5 8250U 1.6 GHz - 8 GB - SSD 256 GB |
Type: | Personal computer - mini PC |
Processor: | Intel Core i5 (8th Gen) 8250U / 1.6 GHz (3.4 GHz) (Quad-Core) |
RAM: | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM |
Storage Controller: | SATA (SATA 6Gb/s) |
Hard Drive: | SSD 256 GB - M.2 |
Optical Storage: | No optical drive |
- Specifications
- Description
General | |
Type: | Personal computer |
Product Form Factor: | Mini PC |
Colour: | Black |
Processor / Chipset | |
CPU: | Intel Core i5 (8th Gen) 8250U |
Clock Speed: | 1.6 GHz |
Max Turbo Speed: | 3.4 GHz |
Number of Cores: | Quad-Core |
CPU Qty: | 1 |
Max CPU Qty: | 1 |
RAM | |
Installed Size: | 8 GB / 32 GB (max) |
Technology: | DDR4 SDRAM |
Effective Memory Speed: | 2400 MHz |
Rated Memory Speed: | 2400 MHz |
Form Factor: | SO-DIMM 260-pin |
Slots: | 2 (Total) / 1 (empty) |
Configuration Features: | 1 x 8 GB |
Hard Drive | |
Type: | SSD - M.2 |
Capacity: | 1 x 256 GB |
Storage Controller | |
Type: | 1 x SATA |
Controller Interface Type: | SATA 6Gb/s |
Optical Storage | |
Type: | No optical drive |
Monitor | |
Monitor Type: | None. |
Graphics Controller | |
Graphics Processor: | Intel UHD Graphics 620 |
Video Interfaces: | HDMI, DisplayPort |
Networking | |
Wireless LAN Supported: | Yes |
Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
Compliant Standards: | Wi-Fi CERTIFIED |
Expansion / Connectivity | |
Bays: | 1 (total) / 1 (free) x internal 2.5" |
Slots: | 1 (total) / 0 (free) x M.2 Card |
Interfaces: | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort/USB-C 3.1 Gen 1 ¦ 1 x headphones/microphone (1 in front) ¦ 3 x USB 3.1 Gen 1 (1 front, 2 rear) ¦ 1 x USB 2.0 (1 in front) ¦ 1 x USB-C 3.1 Gen 1 (1 in front) (Battery Charging 1.2) ¦ 1 x DisplayPort |
Miscellaneous | |
Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
Security Slot Type: | Kensington security slot |
VESA Mounting Interface: | Yes |
Compliant Standards: | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
Power | |
Device Type: | Power adapter |
Power Provided: | 65 Watt |
Operating System / Software | |
OS Provided: | Windows 10 Home |
Environmental Standards | |
ENERGY STAR Certified: | Yes |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 2 years - on-site |
Dimensions & Weight | |
Width: | 11.5 cm |
Depth: | 11.5 cm |
Height: | 4.9 cm |
Weight: | 700 g |
The new ASUS Mini PC PN60 is an ultra-compact and lightweight mini PC ideal for a wide range of uses, including business and home entertainment. Measuring just 115mm x 115mm x 49mm and weighing just 700g, Mini PC PN60 blends easily into any environment, yet delivers great performance with Intel Core processors. Dual display support and comprehensive I/O ports provide superior connectivity and expandability. For even more flexibility, a sliding chassis design enables easy storage and memory upgrades in just two steps.
- Ultra-compact size with 0.62-liter volume for a clutter-free workspace
- Powerful performance with Intel Core processors
- Sliding-chassis design for easy, two-step storage and memory upgrades
- Comprehensive I/O connectivity to meet different needs
- 24/7 reliability - extensively tested to ensure long-term dependability
