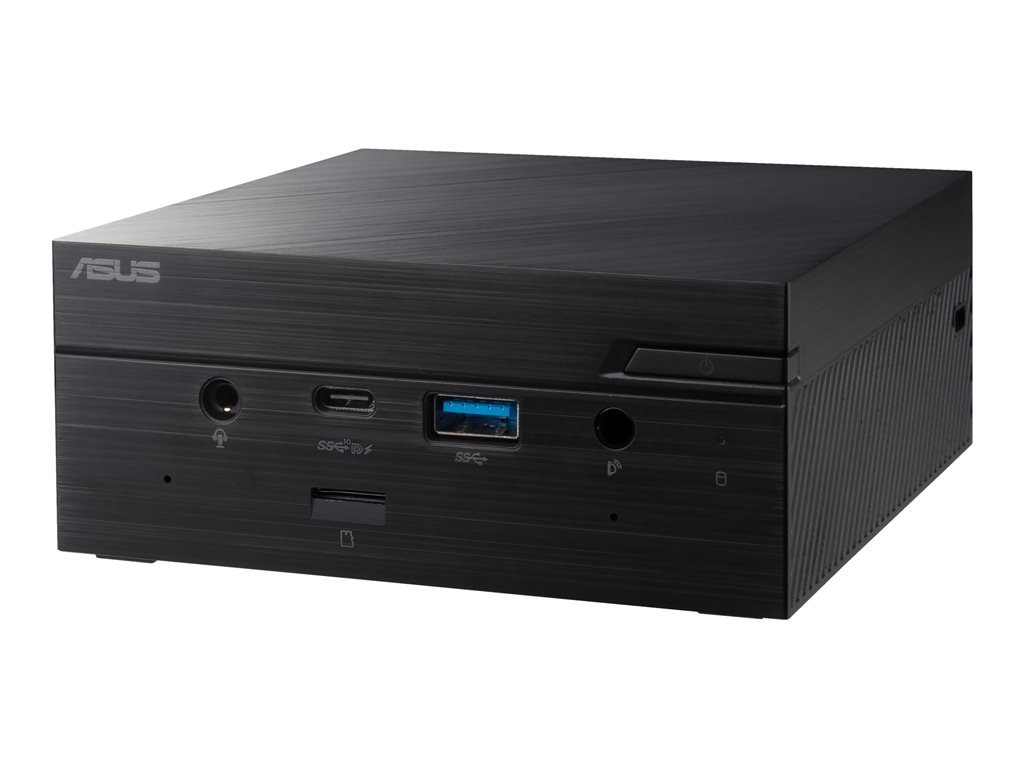

Printers & POSASUS Mini PC PN51 E1-B7161ZD - mini PC - Ryzen 7 5700U 1.8 GHz - 16 GB - SSD 256 GB
SKU 90MS02A1-M01610
| Product Description: | ASUS Mini PC PN51 E1-B7161ZD - mini PC - Ryzen 7 5700U 1.8 GHz - 16 GB - SSD 256 GB |
| Type: | Personal computer - mini PC |
| Processor: | AMD Ryzen 7 5700U / 1.8 GHz (4.3 GHz) (8-core) |
| RAM: | 16 GB DDR4 SDRAM |
| Storage Controller: | SATA (SATA 6Gb/s) |
| Hard Drive: | SSD 256 GB - PCI Express 3.0 x4 - M.2 |
| Optical Storage: | No optical drive |
- Specifications
- Description
| General | |
| Type: | Personal computer |
| Product Form Factor: | Mini PC |
| Sensors: | Infrared (IR) sensor |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | AMD Ryzen 7 5700U |
| Clock Speed: | 1.8 GHz |
| Max Turbo Speed: | 4.3 GHz |
| Number of Cores: | 8-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| RAM | |
| Installed Size: | 16 GB |
| Technology: | DDR4 SDRAM |
| Effective Memory Speed: | 3200 MHz |
| Rated Memory Speed: | 3200 MHz |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 2 (Total) / 0 (empty) |
| Configuration Features: | 2 x 8 GB |
| Hard Drive | |
| Type: | SSD - M.2 |
| Capacity: | 1 x 256 GB |
| Interface Type: | PCI Express 3.0 x4 |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Optical Storage | |
| Type: | No optical drive |
| Card Reader | |
| Type: | 4 in 1 card reader |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | AMD Radeon Graphics |
| Video Interfaces: | HDMI, DisplayPort, USB-C |
| Audio Output | |
| Compliant Standards: | High Definition Audio |
| Audio Input | |
| Type: | Dual array microphone |
| Networking | |
| Ethernet Controller: | Realtek RTL8125B-CG |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2, 2.5 Gigabit Ethernet |
| Features: | Dual stream (2x2) |
| Expansion / Connectivity | |
| Bays: | Internal 2.5" |
| Slots: | M.2 Card |
| Interfaces: | 1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x DisplayPort/USB-C 3.1 Gen 2 (1 front, 1 rear) ¦ 1 x DisplayPort 1.2 ¦ 3 x USB 3.1 Gen 1 (1 front, 2 rear) ¦ 1 x headphones/microphone (1 in front) |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | UL, VCCI, C-Tick, BSMI, CB, CCC, FCC |
| Power | |
| Device Type: | Power adapter |
| Power Provided: | 90 Watt |
| Operating System / Software | |
| OS Provided: | Windows 10 Home |
| Environmental Standards | |
| ENERGY STAR Certified: | Yes |
| Dimensions & Weight | |
| Width: | 11.5 cm |
| Depth: | 11.5 cm |
| Height: | 4.9 cm |
| Weight: | 700 g |
ASUS Mini PC PN51 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications - and is the worthy successor to the popular ASUS Mini PC 50. Mini PC PN51 is ready for demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit - from digital signage to home-theater setups.
- 4K resolution and quad-display support
- Hyperrealistic 8K support
- Ready for any scenario
- Diverse applications
- Modern, space-saving chassis
- High-speed connectivity
- Reactive cooling
- Reduce environmental impact while lowering operating costs
The technical details come from 3rd party. edgemo is not responsible for any errors.
