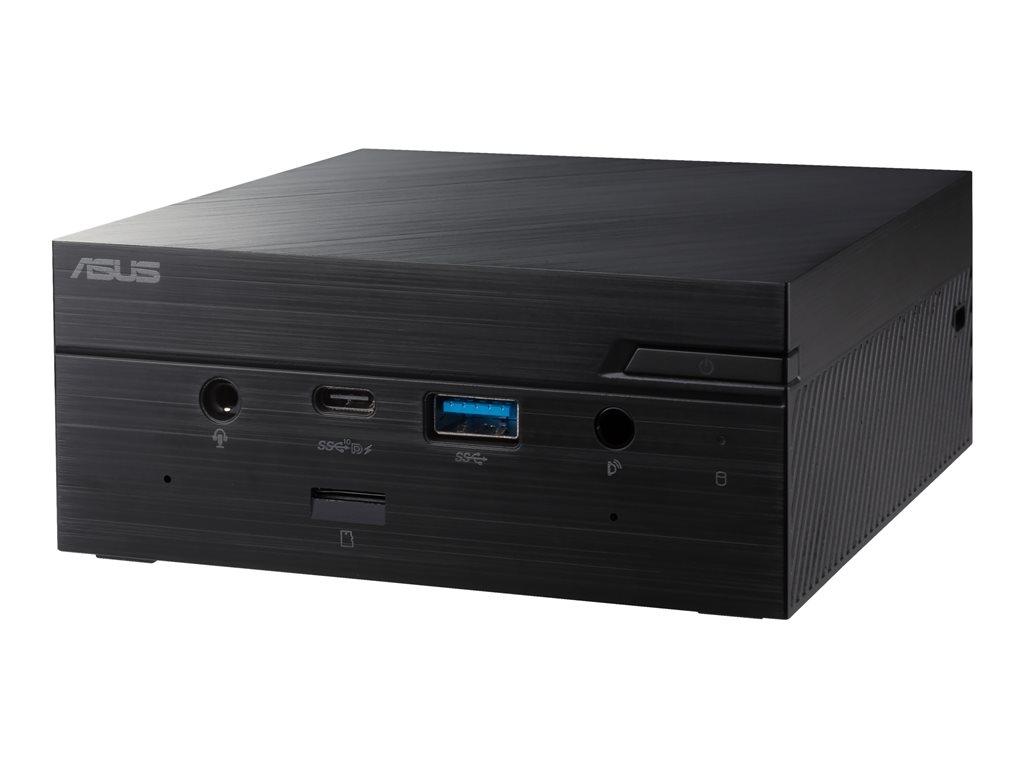

ASUS Mini PC PN51 E1-B5160ZD - mini PC - Ryzen 5 5500U 2.1 GHz - 8 GB - SSD 256 GB

SKU 90MS02A1-M01600
Product Description:ASUS Mini PC PN51 E1-B5160ZD - mini PC - Ryzen 5 5500U 2.1 GHz - 8 GB - SSD 256 GB
Type:Personal computer - mini PC
Processor:AMD Ryzen 5 5500U / 2.1 GHz (4 GHz) (6-core)
RAM:8 GB DDR4 SDRAM
Storage Controller:SATA (SATA 6Gb/s)
Hard Drive:SSD 256 GB - PCI Express 3.0 x4 - M.2
Optical Storage:No optical drive
08-04-2024
  • Specifications
  • Description
General
Type:Personal computer
Product Form Factor:Mini PC
Sensors:Infrared (IR) sensor
Colour:Black
Processor / Chipset
CPU:AMD Ryzen 5 5500U
Clock Speed:2.1 GHz
Max Turbo Speed:4 GHz
Number of Cores:6-core
CPU Qty:1
Max CPU Qty:1
RAM
Installed Size:8 GB
Technology:DDR4 SDRAM
Effective Memory Speed:3200 MHz
Rated Memory Speed:3200 MHz
Form Factor:SO-DIMM 260-pin
Slots:2 (Total)
Hard Drive
Type:SSD - M.2
Capacity:1 x 256 GB
Interface Type:PCI Express 3.0 x4
Storage Controller
Type:1 x SATA
Controller Interface Type:SATA 6Gb/s
Optical Storage
Type:No optical drive
Card Reader
Type:4 in 1 card reader
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:AMD Radeon Graphics
Video Interfaces:HDMI, DisplayPort, USB-C
Audio Output
Compliant Standards:High Definition Audio
Audio Input
Type:Dual array microphone
Networking
Ethernet Controller:Realtek RTL8125B-CG
Wireless LAN Supported:Yes
Data Link Protocol:IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2, 2.5 Gigabit Ethernet
Features:Dual stream (2x2)
Expansion / Connectivity
Bays:Internal 2.5"
Slots:M.2 Card
Interfaces:1 x HDMI ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x DisplayPort/USB-C 3.1 Gen 2 (1 front, 1 rear) ¦ 1 x DisplayPort 1.2 ¦ 3 x USB 3.1 Gen 1 (1 front, 2 rear)
Miscellaneous
Theft/Intrusion Protection:Security lock slot (cable lock sold separately)
Security Slot Type:Kensington security slot
Compliant Standards:UL, VCCI, C-Tick, BSMI, CB, CCC, FCC
Power
Device Type:Power adapter
Power Provided:65 Watt
Operating System / Software
OS Provided:Windows 10 Home
Environmental Standards
ENERGY STAR Certified:Yes
Dimensions & Weight
Width:11.5 cm
Depth:11.5 cm
Height:4.9 cm
Weight:700 g
vis mere
ASUS Mini PC PN51 is an ultra-compact computer that delivers powerful performance for a wide variety of home and business applications - and is the worthy successor to the popular ASUS Mini PC 50. Featuring an AMD Ryzen processor with Radeon graphics, plus support for high-speed 3200 MHz DDR4 memory, Mini PC PN51 is ready for demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit - from digital signage to home-theater setups.
  • Powered by AMD Ryzen processor with Radeon graphics
  • Quad-display support: connect up to four monitors, at resolutions of up to 4K
  • 8K Ultra HD visuals: high resolutions at up to 60 Hz, via DisplayPort Dual-Mode (DP++)
  • Easy-access USB-C: dual USB 3.1 Gen 2 Type-C ports, supporting DisplayPort 1.4
  • Dual-array microphone
  • Infrared (IR) receiver: enables easy remote control of media applications and more
  • Built-in memory card reader: accepts SD, SDHC and SDXC media
  • 24/7 reliability




The technical details come from 3rd party. edgemo is not responsible for any errors.
