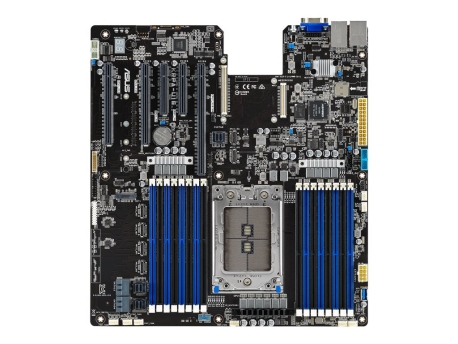

Printers & POSASUS KRPA-U16 - motherboard - SSI EEB - Socket SP3
SKU 90SB0A20-M0UAY0
| Product Description: | ASUS KRPA-U16 - motherboard - SSI EEB - Socket SP3 |
| Product Type: | Motherboard - SSI EEB |
| Processor Socket: | 1 x Socket SP3 |
| Compatible Processors: | EPYC 7002 series, EPYC 7003 series |
| Max RAM Size: | 2048 GB |
| RAM Supported: | 16 DIMM slots - DDR4 registered, Load-Reduced, 3DS Load-Reduced |
| Storage Ports: | 3 x Mini-SAS HD, 4 x SATA-600, 1 x M.2, 6 x OCuLink port |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI EEB |
| Processor Socket: | Socket SP3 |
| Max Processors Qty: | 1 |
| Compatible Processors: | EPYC 7002 series, EPYC 7003 series |
| Supported RAM | |
| Max Size: | 2048 GB |
| Technology: | DDR4 |
| Bus Clock: | 2666 MHz, 2933 MHz, 3200 MHz |
| Registered or Buffered: | Registered, Load-Reduced, 3DS Load-Reduced |
| Features: | 8-channel memory architecture |
| Details: | 2048 GB - registered |
| Graphics | |
| Graphics Controller: | ASPEED AST2500 |
| Dedicated Video Memory: | 64 MB |
| LAN | |
| Network Controller: | Intel I350-AM2 |
| Network Interfaces: | 2 x Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 16 x DIMM 288-pin ¦ 1 x microSD ¦ 1 x expansion slot (OCP 2.0 module support) ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if neighbour slot is occupied)) ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (half-length) ¦ 1 x PCIe 4.0 x8 (half-length) ¦ 1 x PCIe 4.0 x24 (half-length) |
| Storage Interfaces: | SATA-600 -connectors: 3 x mini-SAS HD - 12 devices ¦ SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 ¦ PCIe 3.0 -connectors: 6 x OCuLink port |
| Interfaces: | 2 x USB 3.0 ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management |
| Internal Interfaces: | 2 x USB 3.0 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x USB 3.0 - Type A |
| Features | |
| Hardware Features: | ASUS Thermal Radar 2.0 |
| Miscellaneous | |
| Included Accessories: | ASUS ASMB9-IKVM management card |
| Software Included: | ASUS Control Center |
| Width: | 30.5 cm |
| Depth: | 33 cm |
| Weight: | 1.385 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight: | 2.505 kg |
KRPA-U16 features two embedded Gigabit Ethernet ports and supports higher interconnect speeds with the addition of a PCIe 4.0 for its OCP 2.0 mezzanine card for HPC applications that require high-bandwidth, low-latency network support to connect multiple nodes and clusters.
- More storage, NVMe solutions
- Comprehensive IT infrastructure management
- Exclusive performance boost technology
The technical details come from 3rd party. edgemo is not responsible for any errors.
