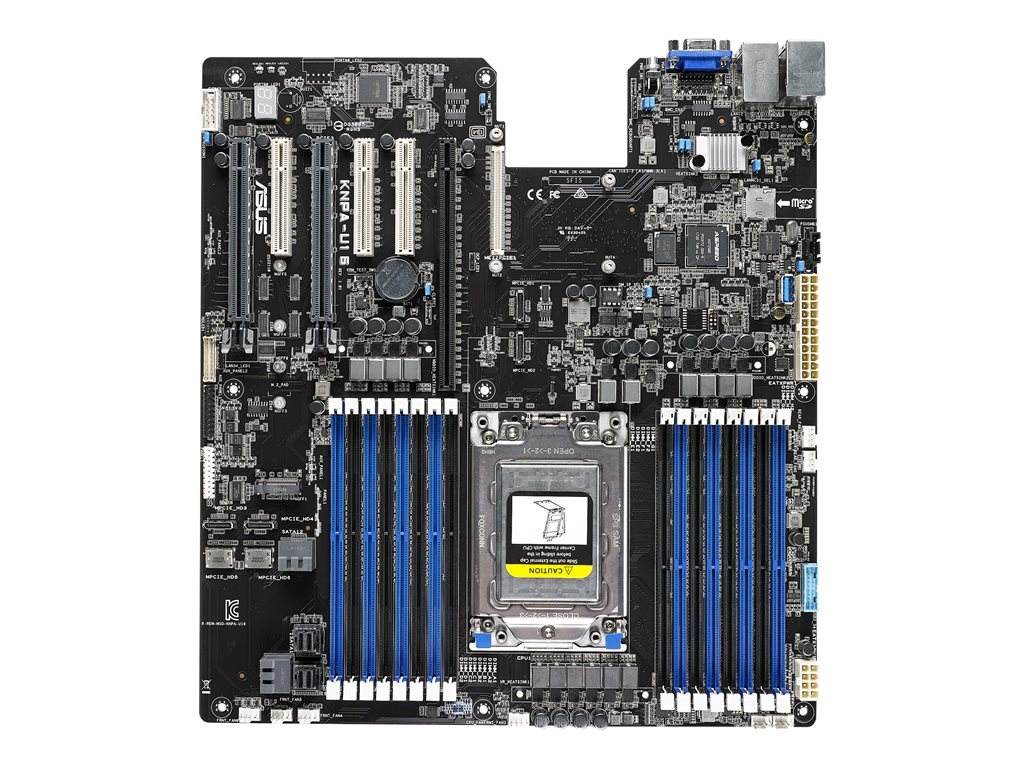

ASUS KNPA-U16 - motherboard - SSI EEB - Socket SP3

SKU 90SB06V0-M0UAY0
Product Description:ASUS KNPA-U16 - motherboard - SSI EEB - Socket SP3
Product Type:Motherboard - SSI EEB
Processor Socket:1 x Socket SP3
Compatible Processors:EPYC 7000 series (Maximum TDP 180 Watt)
Max RAM Size:2048 GB
RAM Supported:16 DIMM slots - DDR4 registered, Load-Reduced, 3DS Load-Reduced
Storage Ports:2 x Mini-SAS HD, 4 x SATA-600, 1 x M.2
17-04-2024
  • Specifications
  • Description
General
Product Type:Motherboard - SSI EEB
Processor Socket:Socket SP3
Max Processors Qty:1
Compatible Processors:EPYC 7000 series (Maximum TDP 180 Watt)
Supported RAM
Max Size:2048 GB
Technology:DDR4
Bus Clock:2400 MHz, 2133 MHz, 2666 MHz
Registered or Buffered:Registered, Load-Reduced, 3DS Load-Reduced
Features:8-channel memory architecture
Graphics
Graphics Controller:ASPEED AST2500
Dedicated Video Memory:64 MB
LAN
Network Controller:Intel I350-AM2
Network Interfaces:2 x Gigabit Ethernet
Expansion / Connectivity
Expansion Slots:1 x CPU ¦ 16 x DIMM 288-pin ¦ 1 x microSD ¦ 1 x expansion slot (OCP 2.0 module support) ¦ 1 x PCIe 3.0 x16 (x16 mode (x8 mode if neighbour slot is occupied)) ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x8 (half-length) ¦ 2 x PCIe 3.0 x8 (half-length) ¦ 1 x PCIe 3.0 x24 (half-length)
Storage Interfaces:SATA-600 -connectors: 2 x mini-SAS HD - 8 devices ¦ SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 - 1 devices
Interfaces:2 x USB 3.0 ¦ 1 x VGA ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x management
Internal Interfaces:2 x USB 3.0 - header ¦ 1 x VGA - header ¦ 1 x serial - header ¦ 1 x USB 3.0 - Type A
Features
Hardware Features:Chassis intrusion detection, ASUS ProCool, ASUS Thermal Radar
Miscellaneous
Included Accessories:I/O back plate, ASUS ASMB9-IKVM management card
Cables Included:4 x Serial ATA cable
Software Included:ASUS Control Center
Compliant Standards:BSMI, FCC
Width:30.5 cm
Depth:33 cm
Weight:1.4 kg
vis mere
KNPA-U16 is built on AMD EPYC platform to deliver incredible server performance. With up to 32 cores per CPU and up to 64 threads, KNPA-U16 packs incredible power in minimal space. 16 DIMM slots provide best-in-class memory capacity and bandwidth, and an integrated I/O controller on the processor eliminates the data transfer bottlenecks caused by discrete I/O chipsets for reduced latency and dramatically faster system performance.
KNPA-U16 supports up to twelve SATA drives via two Mini-SAS HD and four SATA connectors for more connectivity with external devices and cleaner cable routing. With six onboard OCuLink connectors that provide efficient port-to-port connection with NVMe devices, KNPA-U16 eliminates the need for PCIe transaction cards, while providing the reduced latency and higher maximum bandwidth of NVMe technology.
KNPA-U16 features an embedded iKVM module and is bundled with ASUS Control Center to provide comprehensive out-of-band and in-band management features for small and mid-size businesses. The embedded ASMB9-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording, and BSOD capture, providing around-the-clock remote monitoring and diagnostics - even if the operating system is down or offline - through a user-friendly, web-based graphical interface that works with all major browsers. ASUS Control Center (ACC) is a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
  • Powered by AMD EPYC 7000 processor
  • Speed up your system with M.2
  • Support for up to six NVMe SDDs
  • Flexible expandability with six PCIe slots
  • Exclusive Thermal Radar technology for energy efficiency
  • Comprehensive IT infrastructure management
  • ASUS ProCool connector
