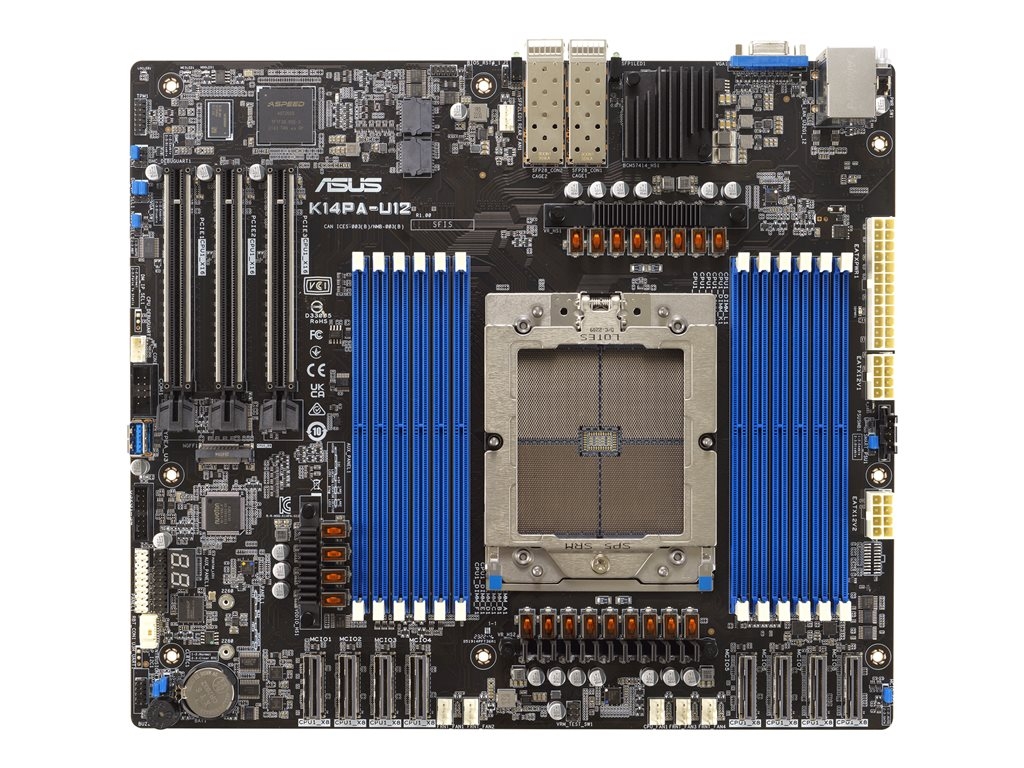

Printers & POSASUS K14PA-U12 - motherboard - SSI CEB - AMD no CPU - Socket SP5
SKU 90SB0CI0-M0UAY0
| Product Description: | ASUS K14PA-U12 - motherboard - SSI CEB - AMD no CPU - Socket SP5 |
| Product Type: | Motherboard - SSI CEB |
| Processor: | AMD no CPU |
| Processor Socket: | 1 x Socket SP5 |
| Compatible Processors: | EPYC 9004 series |
| Max RAM Size: | 3 TB |
| RAM Supported: | 12 DIMM slots - DDR5 3DS-RDIMM |
- Specifications
- Description
| General | |
| Product Type: | Motherboard - SSI CEB |
| Processor: | AMD no CPU |
| Processor Socket: | Socket SP5 |
| Max Processors Qty: | 1 |
| Compatible Processors: | EPYC 9004 series |
| Supported RAM | |
| Max Size: | 3 TB |
| Technology: | DDR5 |
| Bus Clock: | 4800 MHz |
| Registered or Buffered: | 3DS-RDIMM |
| Graphics | |
| Graphics Controller: | ASPEED AST2600 |
| LAN | |
| Network Interfaces: | 2 x 25 Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU ¦ 12 x DIMM 288-pin ¦ 3 x PCIe 5.0 x16 ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces: | PCIe 5.0 -connectors: 12 x NVMe port (via 6 x MCIO) ¦ PCIe 5.0 -connectors: 16 x 7pin external SATA (via 2 x MCIO) |
| Interfaces: | 1 x management ¦ 1 x VGA ¦ 3 x USB 3.2 Gen 1 ¦ 2 x LAN (25Gigabit Ethernet) - SFP28 |
| Internal Interfaces: | USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x SPI - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Features: | iKVM support |
| Miscellaneous | |
| Included Accessories: | IO shield, 1 x M.2 screw, rubber pad |
| Cables Included: | 1 x serial cable |
| Software Included: | ASUS Control Center |
| Width: | 30.48 cm |
| Depth: | 26.67 cm |
The ASUS K14PA-U12 motherboard is designed to meet the demands of high-performance computing environments. It features robust connectivity options with 2 x 25 Gigabit Ethernet ports for high-speed networking, alongside advanced memory support with 12 DIMM slots supporting DDR5 SDRAM at speeds up to 4800 MHz. This motherboard offers flexible storage solutions with 16 x SATA-600 and 12 x NVMe ports, plus an M.2 socket for diverse high-speed storage configurations. The inclusion of an ASPEED AST2600 graphics adapter ensures reliable video output for management and diagnostics. With comprehensive expansion capabilities, including multiple PCIe 5.0 x16 slots, this motherboard is an ideal choice for users looking to build a scalable system.
- 2 x 25 Gigabit Ethernet for superior network speeds
- Supports DDR5 SDRAM at 4800 MHz for efficient multitasking
- 16 x SATA-600 and 12 x NVMe ports for extensive storage configurations
- ASPEED AST2600 graphics adapter for reliable video output
- Multiple expansion slots including PCIe 5.0 x16 for upgrades
The technical details come from 3rd party. edgemo is not responsible for any errors.
