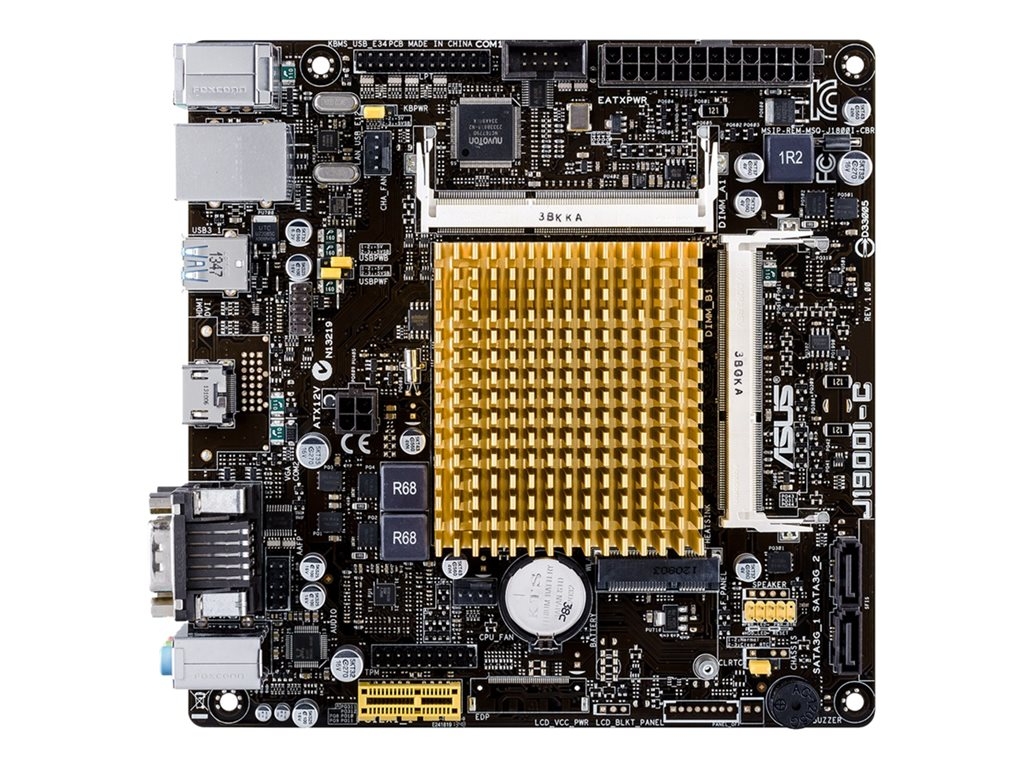

ASUS J1900I-C - motherboard - mini ITX - Intel Celeron J1900
SKU 90MB0JH0-M0EAYM
Product Description: | ASUS J1900I-C - motherboard - mini ITX - Intel Celeron J1900 |
Product Type: | Motherboard - mini ITX |
Processor: | Intel Celeron J1900 (Quad-Core) |
Max RAM Size: | 8 GB |
RAM Supported: | 2 SO-DIMM slots - DDR3L, non-ECC, unbuffered |
Storage Ports: | 2 x SATA-300 |
USB / FireWire Ports: | 1 x USB 3.1 Gen 1 + 4 x USB 2.0 + (2 x USB 2.0 via headers) |
- Specifications
- Description
General | |
Product Type: | Motherboard - mini ITX |
Processor: | Intel Celeron J1900 (Quad-Core) |
Supported RAM | |
Max Size: | 8 GB |
Technology: | DDR3L |
Bus Clock: | 1333 MHz |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
Graphics | |
Graphics Controller: | Intel HD Graphics |
Max Allocated RAM Size: | 512 MB |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC887-VD |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Realtek RTL8111G |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 2 x SO-DIMM 204-pin ¦ 1 x PCIe 2.0 x1 ¦ 1 x Mini PCIe |
Storage Interfaces: | SATA-300 -connectors: 2 x 7pin Serial ATA |
Interfaces: | 4 x USB 2.0 ¦ 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard / mouse ¦ 1 x VGA ¦ 1 x serial ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 1 x parallel - header ¦ 1 x audio - header ¦ 1 x serial - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | WfM 2.0 support, ASUS MyLogo2, ASUS Quiet Thermal Solution, ASUS EZ Flash 2, ACPI 2.0a support, UEFI BIOS, SMBIOS 2.7 support |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS Anti-Surge Protection, ASUS EZ DIY, CrashFree BIOS 3, audio jack detect technology, ASUS Fan Xpert, Conductive Polymer Capacitors, USB 3.0 Boost, ASUS Network iControl, Intel Smart Connect Technology, Preboot eXecution Environment (PXE), Clear CMOS Button |
Miscellaneous | |
Compliant Standards: | Plug and Play, ACPI 2.0a |
Width: | 17 cm |
Depth: | 17 cm |
This motherboard features an integrated Intel Celeron Quad-Core processor J1900 and Intel HD graphics. This revolutionary 22 nm ultra low voltage SoC (System On a Chip) combines superb processing power and advanced HD graphics support in one small, energy efficient design. Despite minimal power requirements, it still has the processing power to display the DirectX 11 HD graphics. It features support for dual independent displays with resolutions up to 2500 x 1600, and also has integrated USB 3.0 support.
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction. ASUS AI Suite 3 offers a user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled graphical BIOS, and now features more intuitive functions to quickly take you to favorite BIOS pages and frequently-accessed settings through custom shortcuts. You can even write quick notes in-BIOS for future reference, view an activity log of setting changes and modifications, and rename SATA ports. EZ Mode has a whole new look, upgraded with extra-friendly capabilities like detailed fan controls, XMP profile settings, SATA information, and fast clock adjustment. Together, these perfect your BIOS experience.
With USB 3.0 Boost technology, a USB device's transmission speed is significantly increased up to 170%, adding to already fast USB 3.0 performance. ASUS software automatically accelerates data rates for compatible USB 3.0 peripherals without any user interaction. ASUS AI Suite 3 offers a user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
- UEFI BIOS and EZ mode: friendlier, easier, and more intuitive with helpful info added
- USB 3.0 BOOST (UASP support): 170% faster transfer speeds than traditional USB 3.0
- Network iControl: real-time network bandwidth management
- CrashFree BIOS 3: restore corrupted BIOS data from USB storage
- AI Suite 3: one-stop access to ASUS features
