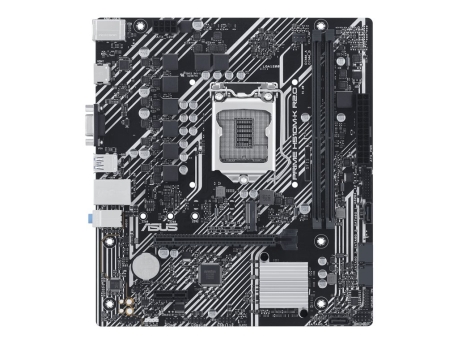

ASUS H510M-K R2.0 - motherboard - micro ATX - LGA1200 Socket - H470

SKU 90MB1E80-M0EAY0

Product Description:	ASUS H510M-K R2.0 - motherboard - micro ATX - LGA1200 Socket - H470
Product Type:	Motherboard - micro ATX
Chipset Type:	Intel H470
Processor Socket:	1 x LGA1200 Socket
Compatible Processors:	(supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron)
Max RAM Size:	64 GB
RAM Supported:	2 DIMM slots - DDR4, non-ECC, unbuffered

12-02-2025

Specifications
Description
Accessories

General
Product Type:	Motherboard - micro ATX
Chipset Type:	Intel H470
Processor Socket:	LGA1200 Socket
Max Processors Qty:	1
Compatible Processors:	(supports 11th and 10th Generation Intel Core / Pentium Gold / Celeron)

Supported RAM
Max Size:	64 GB
Technology:	DDR4
Bus Clock:	3200 MHz (O.C.), 3000 MHz (O.C.), 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz
Supported RAM Integrity Check:	Non-ECC
Registered or Buffered:	Unbuffered
Features:	Intel Extreme Memory Profiles (XMP), dual channel memory architecture

Audio
Type:	HD Audio (8-channel)
Compliant Standards:	High Definition Audio

LAN
Network Interfaces:	Gigabit Ethernet

Expansion / Connectivity
Expansion Slots:	1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (2242/2260/2280 M.2 Key M slot) ¦ 1 x PCIe 3.0 x1 (2242/2260/2280 M.2 Key M slot)
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2
Interfaces:	1 x LAN (Gigabit Ethernet) ¦ 1 x VGA ¦ 1 x HDMI ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse
Internal Interfaces:	4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x SPDIF out - header ¦ 1 x speaker - header ¦ SPI - header
Power Connectors:	24-pin main power connector, 8-pin ATX12V connector

Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	Intel Turbo Boost Technology 2.0, Intel Turbo Boost Max Technology 3.0, ASUS EZ DIY, ASUS 5X Protection III, ASUS DIGI+ VRM, LANGuard, ASUS Overvoltage Protection, ASUS SafeSlot Core, ASUS Stainless Steel Back I/O, ASUS Q-Design, Q-DIMM, Q-LED Core, Q-Slot, audio jack detect technology, jack retasking

Miscellaneous
Included Accessories:	IO shield, 1 x M.2 anchor
Cables Included:	2 x Serial ATA cable
Software Included:	Armoury Crate, ASUS Fan Xpert, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, ASUS CPU-Z, Norton AntiVirus (60 days trial), WinRAR, ASUS EZ Update
Width:	22.6 cm
Depth:	20.3 cm

vis mere

The ASUS H510M-K R2.0 is a micro ATX motherboard designed to support 10th and 11th Generation Intel Core processors. It features dual-channel memory architecture and supports a wide range of RAM speeds from 2133 MHz to 3200 MHz with overclocking capabilities. With ample expansion slots including PCIe 3.0 and DIMM, users can easily upgrade or customize their systems. This motherboard also includes multiple USB ports, HDMI, and VGA outputs, ensuring versatile connectivity options for peripheral devices. Equipped with high definition audio output, it enhances the multimedia experience for home theater setups or gaming systems. Built for stability, the ASUS H510M-K R2.0 integrates advanced features like Intel Turbo Boost Technology and ASUS 5X Protection III. The BIOS provides an easy-to-use interface with ASUS EZ Flash 3 and EZ Mode for straightforward navigation. Whether constructing a new PC or upgrading an existing one, this motherboard balances performance and reliability, making it a solid foundation for personal computing needs.

Supports 10th and 11th Generation Intel Core processors
Dual-channel memory architecture with speeds up to 3200 MHz
Equipped with multiple USB ports for peripheral connectivity
High definition audio for enhanced multimedia experience
Designed with advanced safety features for long-lasting use
