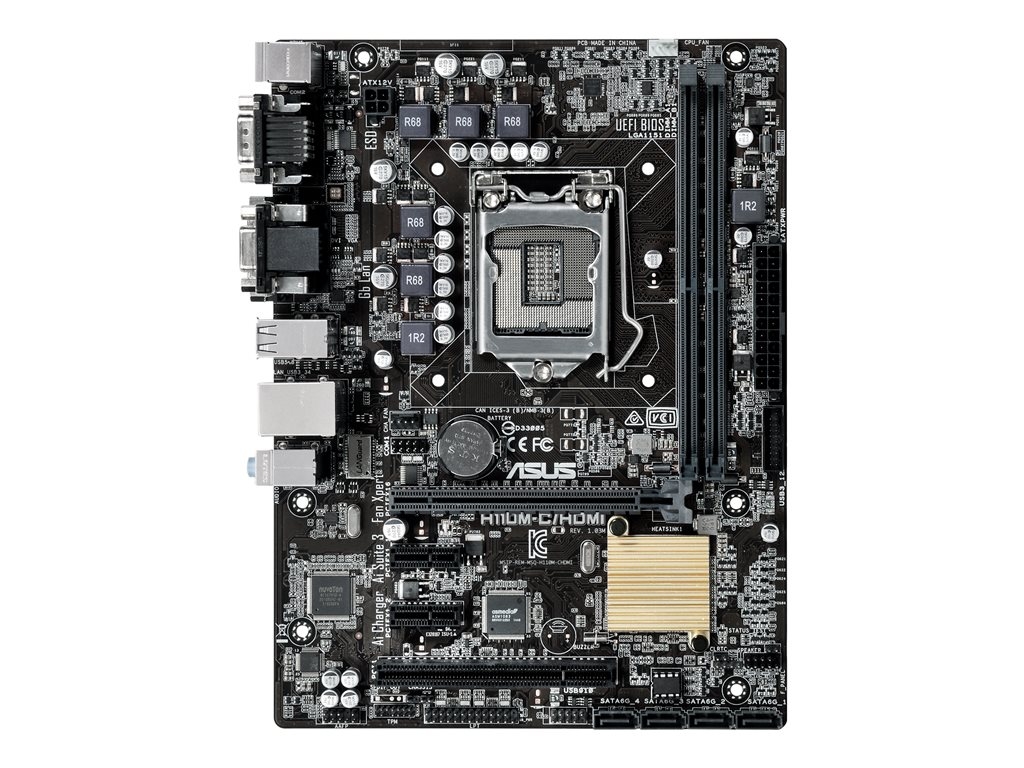

ASUS H110M-C - motherboard - micro ATX - LGA1151 Socket - H110
SKU 90MB0NY0-M0EAY0
Product Description: | ASUS H110M-C - motherboard - micro ATX - LGA1151 Socket - H110 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel H110 Express |
Processor Socket: | 1 x LGA1151 Socket |
Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7 |
Max RAM Size: | 32 GB |
RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | Intel H110 Express |
Processor Socket: | LGA1151 Socket |
Max Processors Qty: | 1 |
Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7 |
Supported RAM | |
Max Size: | 32 GB |
Technology: | DDR4 |
Bus Clock: | 1866 MHz, 2133 MHz |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Intel Extreme Memory Profiles (XMP) |
Graphics | |
Max Allocated RAM Size: | 1024 MB |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC887 |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Realtek RTL8111H |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 2 x PCIe 2.0 x1 ¦ 1 x PCI |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices |
Interfaces: | 2 x USB 3.0 ¦ 4 x USB 2.0 ¦ 1 x VGA ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 1 x serial |
Internal Interfaces: | 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header ¦ 1 x parallel - header ¦ 1 x serial - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | DMI 2.0 support, WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ACPI 5.0 support, ASUS EZ Flash 3, SMBIOS 3.0 support |
Sleep / Wake Up: | Wake on LAN (WOL), wake on PME |
Hardware Features: | Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, audio jack detect technology, Intel Extreme Memory Profile (XMP) support, ASUS Fan Xpert, Intel Turbo Boost Technology 2.0, ASUS DIGI+ VRM, Intel Clear Video HD Technology, Fanless Design Heatsink, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ASUS Enhanced DRAM Overcurrent Protection, Preboot eXecution Environment (PXE), ASUS Stainless Steel Back I/O, LANGuard, ASUS 5X Protection II, overvoltage protection |
Miscellaneous | |
Included Accessories: | I/O back plate |
Cables Included: | 2 x Serial ATA cable |
Software Included: | Drivers & Utilities, ASUS AI Charger, ASUS AI Suite III, ASUS EZ Update, Antivirus (OEM version), Mobo Connect, Media Streamer, ASUS EZ Flash 3 |
Compatible with Windows 7: | "Compatible with Windows 7" software and devices carry Microsoft’s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
Compliant Standards: | Plug and Play, ACPI 5.0 |
Width: | 24.4 cm |
Depth: | 18.2 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand. An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility. The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily. Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with the 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization.
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility. The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily. Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise — and with the 100 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization.
- 5X Protection II - advanced hardware safeguards for all-round protection
- DDR4 memory support
- Media-acclaimed UEFI BIOS with EZ Flash 3
- Easy PC DIY with safe motherboard-mounting design
- Fan Xpert dedicated CPU and case fan controls for ultimate cooling and silent performance
The technical details come from 3rd party. edgemo is not responsible for any errors.
