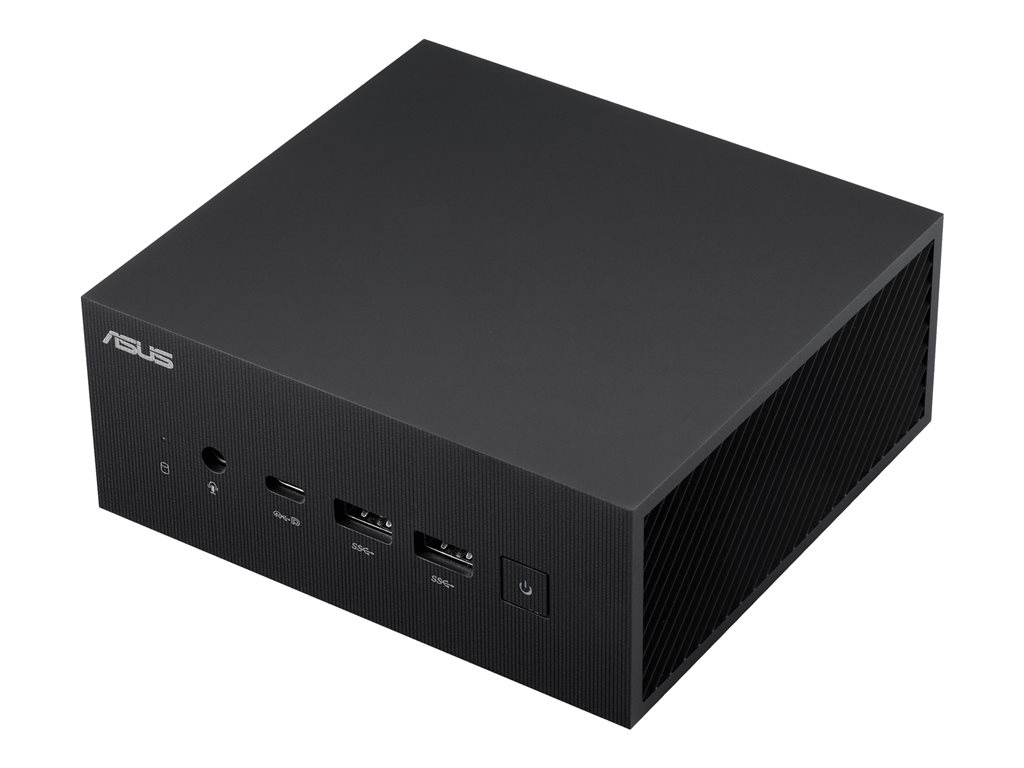

Printers & POSASUS ExpertCenter PN53 S5072AD - mini PC - Ryzen 5 7535H 3.3 GHz - 8 GB - SSD 256 GB
SKU 90MS02H1-M00280
| Product Description: | ASUS ExpertCenter PN53 S5072AD - mini PC - Ryzen 5 7535H 3.3 GHz - 8 GB - SSD 256 GB |
| Type: | PC barebone - mini PC |
| Processor: | 1 x AMD Ryzen 5 7535H / 3.3 GHz (, up to 4.55 GHz, (6-core) |
| Cache Memory: | 16 MB L3 Cache |
| Cache Per Processor: | 16 MB |
| RAM: | 8 GB DDR5 SDRAM |
| Storage Controller: | SATA (SATA 6Gb/s) |
- Specifications
- Description
| General | |
| Type: | PC barebone |
| Product Form Factor: | Mini PC |
| Colour: | Black |
| Processor / Chipset | |
| CPU: | AMD Ryzen 5 7535H |
| Clock Speed: | 3.3 GHz |
| Max Turbo Speed: | 4.55 GHz |
| Number of Cores: | 6-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Cache Memory | |
| Installed Size: | L3 Cache - 16 MB |
| Cache Per Processor: | 16 MB |
| RAM | |
| Installed Size: | 8 GB |
| Technology: | DDR5 SDRAM |
| Effective Memory Speed: | 4800 MHz |
| Rated Memory Speed: | 4800 MHz |
| Form Factor: | SO-DIMM 262-pin |
| Hard Drive | |
| Type: | SSD - M.2 |
| Capacity: | 1 x 256 GB |
| Interface Type: | PCI Express 4.0 |
| Features: | NVM Express (NVMe) |
| Storage Controller | |
| Type: | 1 x SATA |
| Controller Interface Type: | SATA 6Gb/s |
| Optical Storage | |
| Type: | No optical drive |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | AMD Radeon 660M |
| Video Interfaces: | HDMI, DisplayPort |
| Networking | |
| Ethernet Ports: | 2.5 Gigabit Ethernet |
| Ethernet Controller: | Realtek RTL8125B-CG |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Features: | Dual stream (2x2) |
| Expansion / Connectivity | |
| Bays: | 1 internal 2.5" |
| Slots: | 2 M.2 Card |
| Interfaces: | 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x Thunderbolt 4/DisplayPort 1.4/USB-C (1 front, 1 rear) (Power Delivery) ¦ 5 x USB 3.2 Gen 1 (2 front, 3 rear) ¦ 1 x headphones/microphone (1 front) ¦ 2 x HDMI |
| Miscellaneous | |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| VESA Mounting Interface: | Yes |
| Power | |
| Device Type: | Power adapter |
| Power Provided: | 150 Watt |
| Operating System / Software | |
| OS Provided: | Windows 11 Home |
| Dimensions & Weight | |
| Width: | 12 cm |
| Depth: | 13 cm |
| Height: | 5.8 cm |
| Weight: | 900 g |
ASUS ExpertCenter PN53 is no lightweight when it comes to performance. It harnesses the power of the AMD Ryzen series processor combined AMD Radeon series graphics, and can accommodate multiple storage combinations.
- Powered by the AMD Ryzen series Processor with Radeon graphics
- Support 7 USB ports, including 2x USB Type-C ports, and on-board dual HDMI ports
- Features Two-Way AI Noise Cancelation to provide crystal-clear online voice communication
- Support DisplayPort 1.4 and Power Delivery input through rear USB Type C port
- Onboard 2.5GbE LAN delivering faster Ethernet connectivity
- Integrated Wi-Fi 6E and Bluetooth for easy cordless connections
The technical details come from 3rd party. edgemo is not responsible for any errors.
