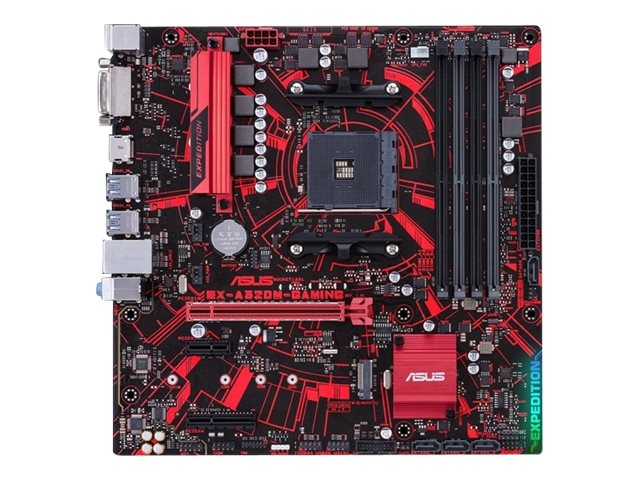

ASUS EX-A320M-GAMING - motherboard - micro ATX - Socket AM4 - AMD A320
SKU 90MB0VG0-M0EAYM
Product Description: | ASUS EX-A320M-GAMING - motherboard - micro ATX - Socket AM4 - AMD A320 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD A320 |
Processor Socket: | 1 x Socket AM4 |
Compatible Processors: | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
Max RAM Size: | 64 GB |
RAM Supported: | 4 DIMM slots - DDR4, non-ECC, ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD A320 |
Processor Socket: | Socket AM4 |
Max Processors Qty: | 1 |
Compatible Processors: | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
Supported RAM | |
Max Size: | 64 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz |
Supported RAM Integrity Check: | Non-ECC, ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
Graphics | |
Max Allocated RAM Size: | 2 GB |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC887 |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Realtek RTL8111H |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 2.0 x4 (x2 mode) ¦ 1 x PCIe 2.0 x1 |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x M.2 |
Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.0 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x DVI-D ¦ 2 x USB 2.0 ¦ 1 x HDMI |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x serial - header |
Power Connectors: | 24-pin main power connector, 8-pin ATX12V connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, SMBIOS 3.0 support, ACPI 6.1 support |
Hardware Features: | ASUS Q-Design, Q-DIMM, Q-Slot, ASUS DIGI+ VRM, ASUS Stainless Steel Back I/O, anti-pop function, LANGuard, ASUS Overvoltage Protection, Lighting Control, ASUS iCafe Labs Certified, USBGuard, AURA RGB Lighting Control, Moistureproof PCB, ASUS 5X Protection III, ASUS SafeSlot Core |
Miscellaneous | |
Included Accessories: | 1 x M.2 screw, I/O back cover |
Cables Included: | 2 x Serial ATA cable |
Software Included: | Drivers & Utilities |
Compliant Standards: | Plug and Play |
Width: | 24.4 cm |
Depth: | 24.4 cm |
Manufacturer Warranty | |
Service & Support: | Limited warranty - 3 years |
ASUS Expedition motherboards are made for non-stop action, engineered with non-stop durability to prevent damage from moisture, corrosion and overvoltages - for immense longevity. And for the ultimate audio, Expedition motherboards have Epic gaming audio to provide exhilarating non-stop gaming performance - and amazing stability, reliability, and value for you!
- Anti-moisture coating
- Gold-plated PCIe and LAN design
- USBGuard
- SafeSlot
- 5X Protection III
- LANGuard
The technical details come from 3rd party. edgemo is not responsible for any errors.
