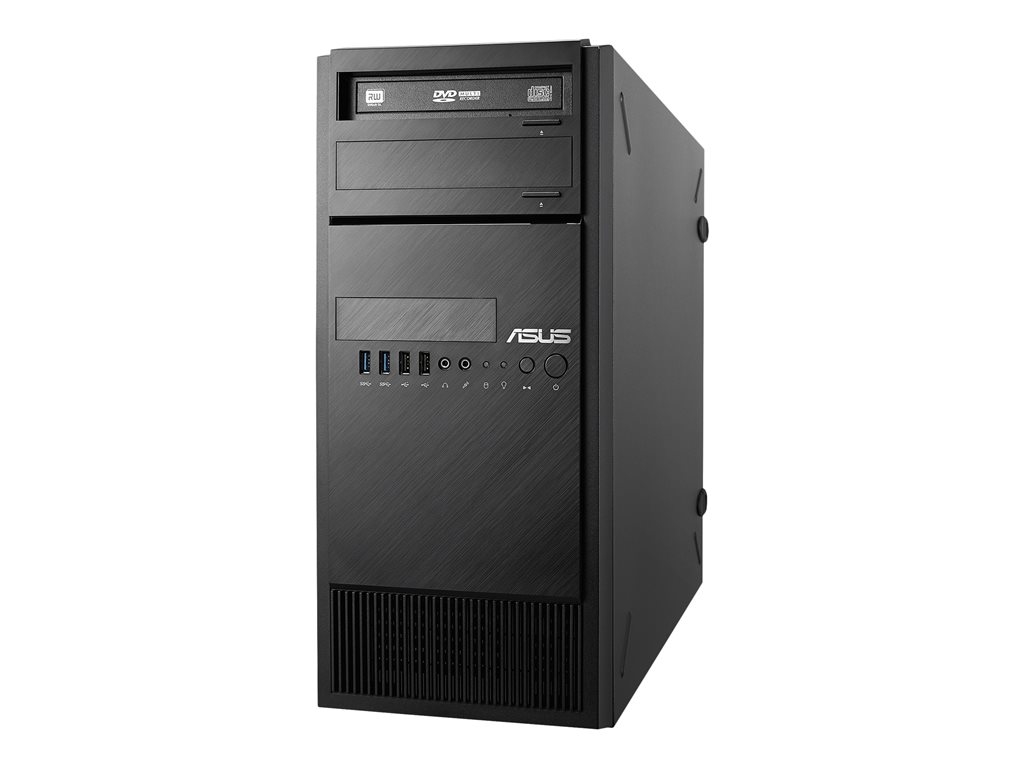

ASUS ESC700 G4 - tower no CPU - 0 GB - no HDD

SKU 90SF00C1-M00180
Product Description:ASUS ESC700 G4 - tower no CPU - 0 GB - no HDD
Type:Workstation - tower
Localisation:Language: English
Processor:No CPU
Processor Socket:LGA2066 Socket
RAM:0 GB (installed) / 512 GB (max) - DDR4 SDRAM
Storage Controller:RAID (SATA 6Gb/s); NVMe (PCI Express)
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Type:Workstation
Product Form Factor:Tower
Localisation:Language: English
Processor / Chipset
CPU:No CPU
Max CPU Qty:1
CPU Upgradability:Upgradable
CPU Socket:LGA2066 Socket
Chipset Type:Intel C422
RAM
Installed Size:0 GB (installed) / 512 GB (max)
Technology:DDR4 SDRAM
Form Factor:DIMM 288-pin
Slots:8 (Total) / 8 (empty)
Features:Registered, quad channel memory architecture, Load-Reduced DIMM (LRDIMM)
Hard Drive
Type:No HDD
Storage Controller
Type:1 x RAID
Controller Interface Type:SATA 6Gb/s
RAID Level:RAID 0, RAID 1, RAID 5, RAID 10
Storage Controller (2nd)
Type:1 x NVMe
Controller Interface Type:PCI Express
Optical Storage
Type:DVD-Writer
Monitor
Monitor Type:None.
Graphics Controller
Graphics Processor:No graphics
Audio Output
Sound Output Mode:7.1 channel surround
Networking
Ethernet Ports:2 x Gigabit Ethernet
Ethernet Controller:2 x Intel I210-AT
Data Link Protocol:Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Bays:3 (total) / 3 (free) x internal 3.5" ¦ 2 (total) / 1 (free) x external 5.25" ¦ 1 (total) / 1 (free) x internal 2.5"
Slots:2 (total) / 2 (free) x M.2 Card - 2242/2260/2280/22110 ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 ¦ 2 (total) / 2 (free) x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 (total) / 1 (free) x PCIe 3.0 x4
Interfaces:6 x USB 2.0 (2 front, 4 rear) ¦ 2 x USB 3.0 ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 2 x microphone - mini-jack (1 front, 1 rear) ¦ 1 x headphones - mini-jack (1 in front) ¦ 1 x TOSLINK output ¦ 1 x audio line-out (centre/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x USB 3.1 Gen 2 ¦ 1 x USB-C 3.1 Gen 2 ¦ 4 x USB 3.1 Gen 1
Miscellaneous
Included Accessories:ASMB9-iKVM Remote Management Card
Compliant Standards:FCC Class B certified, BSMI, CCC
Power
Device Type:Power supply
Voltage Required:AC 120/230 V (50/60 Hz)
Power Provided:700 Watt
80 PLUS Certification:80 PLUS Gold
Operating System / Software
OS Provided:No operating system
Dimensions & Weight
Width:19 cm
Depth:43.5 cm
Height:42.3 cm
Weight:14 kg
Environmental Parameters
Min Operating Temperature:10 °C
Max Operating Temperature:35 °C
vis mere
ESC700 G4 delivers powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.
ESC700 G4 is the perfect workstation for content creators, media streamers and professional designers.
  • Powerful performance
  • Multiple graphics card support
  • Dual onboard M.2 slots and M.2 heatsink
  • 10Gbps USB 3.1
  • Outstanding audio for content creators
  • Dual Intel server-class Gigabit LAN
  • User friendly, tool-less case design for hassle-free maintenance




The technical details come from 3rd party. edgemo is not responsible for any errors.
