ASUS Dual Radeon RX 6500 XT OC Edition - graphics card - Radeon RX 6500 XT - 4 GB
SKU 90YV0HA1-M0NA00
Product Description: | ASUS Dual Radeon RX 6500 XT OC Edition - graphics card - Radeon RX 6500 XT - 4 GB |
Device Type: | Graphics card |
Bus Type: | PCI Express 4.0 |
Graphics Engine: | AMD Radeon RX 6500 XT |
Memory: | 4 GB GDDR6 |
Memory Speed: | 18 Gbps |
Boost Clock: | 2820 MHz |
- Specifications
- Description
General | |
Device Type: | Graphics card |
Bus Type: | PCI Express 4.0 |
Graphics Engine: | AMD Radeon RX 6500 XT |
Boost Clock: | 2820 MHz |
Stream Processors: | 1024 |
Max Resolution: | 7680 x 4320 |
Max Monitors Supported: | 2 |
Interfaces Details: | HDMI ¦ DisplayPort |
API Supported: | OpenGL 4.6 |
Features: | AMD CrossFireX Technology, Dual ball Bearing Fan, AUTO-EXTREME technology, 2-slot Fan Cooler, variable rate shading (VRS), Axial-tech Fan Design, 0dB Technology, AMD FidelityFx, RDNA 2 Architecture, AMD Infinity Cache, DirectX Raytracing (DXR), AMD FidelityFX Super Resolution (FSR), metal backplate, HDCP |
Memory | |
Size: | 4 GB |
Technology: | GDDR6 SDRAM |
Memory Speed: | 18 Gbps |
Bus Width: | 64-bit |
System Requirements | |
Required Power Supply: | 500 W |
Additional Requirements: | 6 pin PCI Express power connector |
Miscellaneous | |
Software Included: | Display drivers, ASUS GPU Tweak II, Adobe Creative Cloud (30 days trial), AMD Radeon Software |
Compliant Standards: | HDCP 2.3, DisplayPort 1.4a |
Width: | 4 cm |
Depth: | 20.1 cm |
Height: | 12.8 cm |

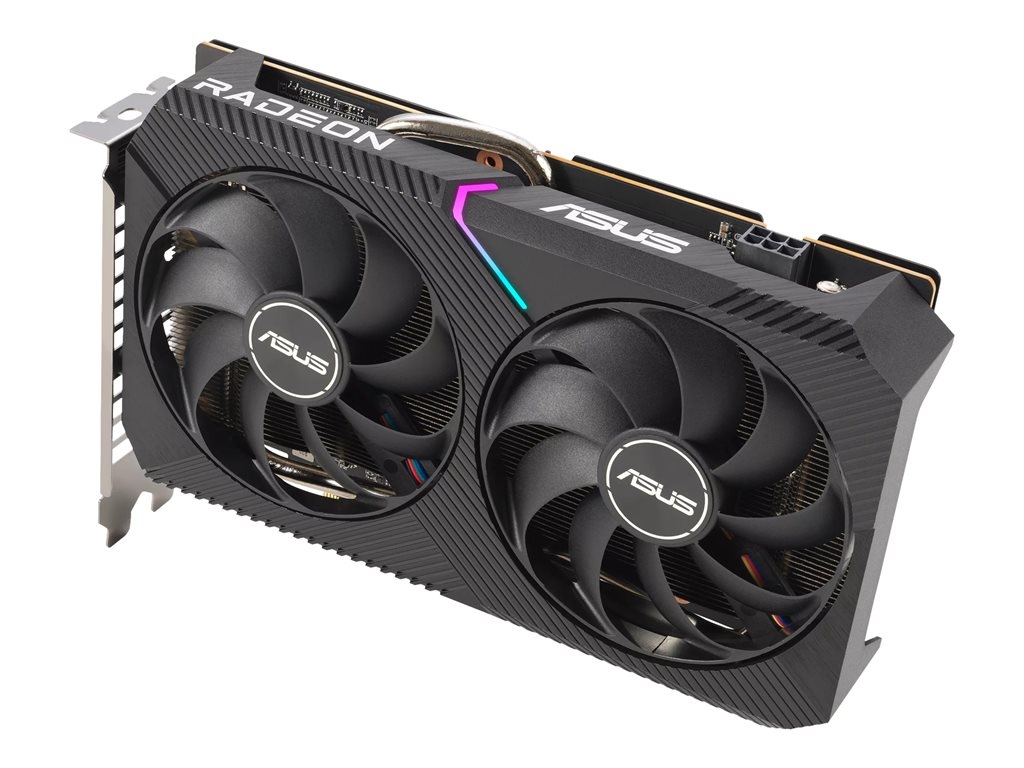

Featuring AMD RDNA 2 architecture, ASUS Dual Radeon RX 6500 XT fuses dynamic thermal performance with broad compatibility. Advanced cooling solutions from flagship graphics cards - including two Axial-tech fans for maximizing airflow to the heatsink - are packed into a 2-slot card, delivering more power in less space. These enhancements make ASUS Dual the perfect choice for gamers who want heavyweight graphics performance in a compact build.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- A 2-slot design maximizes compatibility and cooling efficiency for excellent performance in small chassis
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs
- Auto-Extreme Technology uses automation to enhance reliability
- A protective backplate prevents PCB flex and trace damage
The technical details come from 3rd party. edgemo is not responsible for any errors.
