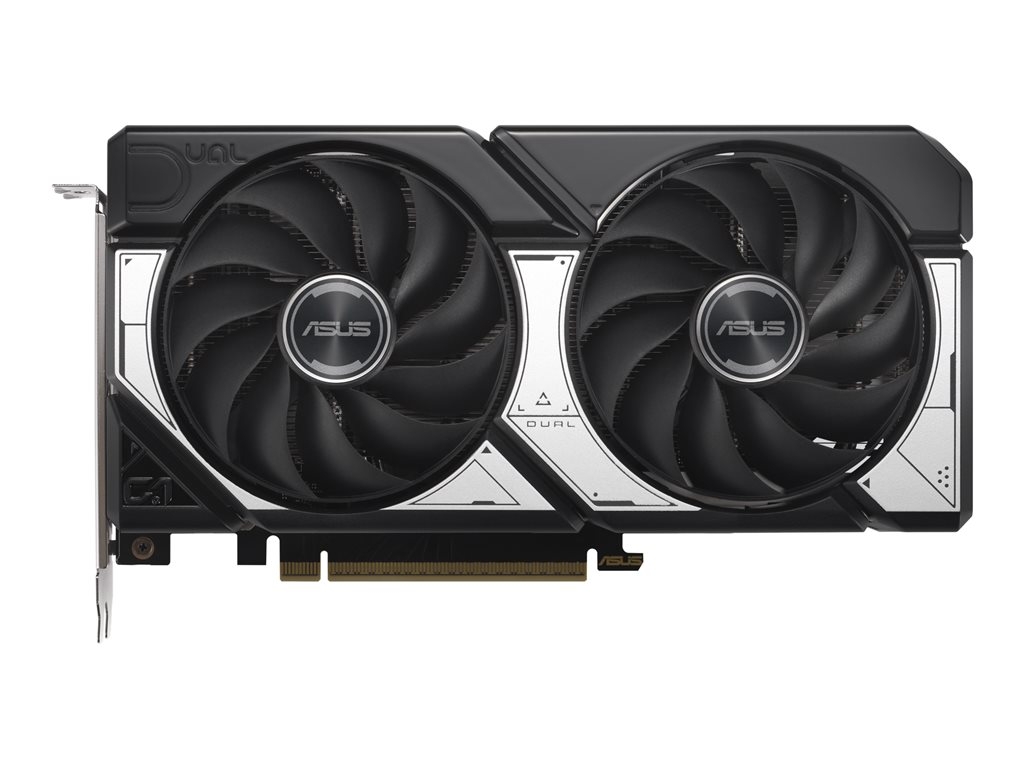

ASUS Dual GeForce RTX 5060 8GB - OC Edition - graphics card - GeForce RTX 5060 - 8 GB
SKU 90YV0N12-M0NA00
Product Description: | ASUS Dual GeForce RTX 5060 8GB - OC Edition - graphics card - GeForce RTX 5060 - 8 GB |
Device Type: | Graphics card |
Bus Type: | PCI Express 5.0 |
Graphics Engine: | NVIDIA GeForce RTX 5060 - up to 623 TOPS |
Memory: | 8 GB GDDR7 |
Memory Speed: | 28 Gbps |
Boost Clock: | 2535 MHz |
- Specifications
- Description
General | |
Device Type: | Graphics card |
Bus Type: | PCI Express 5.0 |
Graphics Engine: | NVIDIA GeForce RTX 5060 |
Boost Clock: | 2535 MHz |
Boost Clock (OC): | 2565 MHz |
CUDA Cores: | 3840 |
Max Resolution: | 7680 x 4320 |
Max Monitors Supported: | 4 |
Interfaces Details: | 3 x DisplayPort ¦ HDMI |
API Supported: | OpenGL 4.6 |
Features: | NVIDIA GeForce SFF-Ready, 2.5-slot Fan Cooler, Axial-tech Fan Design, vented backplate, Dual ball Bearing Fans, Dual Bios, NVIDIA G-Sync ready, NVIDIA Avatar Cloud Engine (ACE), 5th gen Tensor Cores, 4th gen Ray Tracing Cores, NVIDIA Blackwell GPU architecture, NVIDIA DLSS 4, NVIDIA Reflex 2, 0dB Technology, stainless steel mounting bracket, AUTO-EXTREME technology |
Memory | |
Size: | 8 GB |
Technology: | GDDR7 SDRAM |
Memory Speed: | 28 Gbps |
Bus Width: | 128-bit |
Performance | |
NPU Performance Up To (TOPS): | 623 TOPS |
System Requirements | |
Required Power Supply: | 550 W |
Additional Requirements: | 8-pin CPU power connector, 2 adjacent PCI slots |
Miscellaneous | |
Included Accessories: | Thank you card |
Software Included: | ASUS GPU Tweak III |
Width: | 5 cm |
Depth: | 22.8 cm |
Height: | 12.3 cm |
The ASUS Dual GeForce RTX 5060 8 GB OC Edition offers performance for gamers and content creators alike. Equipped with 8 GB of GDDR7 SDRAM and a boost clock speed of 2565 MHz in OC mode, this graphics card ensures smooth gameplay and visuals. With support for a maximum external resolution of 7680 x 4320, users can enjoy immersive experiences across up to four monitors, allowing for enhanced productivity and gaming engagement. Features such as NVIDIA DLSS 4, 4th gen Ray Tracing Cores, and 5th gen Tensor Cores elevate graphics rendering, making it suitable for demanding applications and gaming scenarios. The axial-tech fan design and 0dB technology provide efficient cooling while minimizing noise, ensuring a comfortable user experience during gaming sessions or creative tasks.
- 8 GB GDDR7 memory for powerful performance
- Supports resolutions up to 7680 x 4320
- NVIDIA DLSS 4 technology for improved rendering
- Quiet operation with 0dB technology
- Dual Bios capability for flexibility
The technical details come from 3rd party. edgemo is not responsible for any errors.
