Printers & POSASUS Chromebox 5 S3006UN - mini PC Core i3 1220P - 8 GB - SSD 128 GB
SKU 90MS02N1-M00160

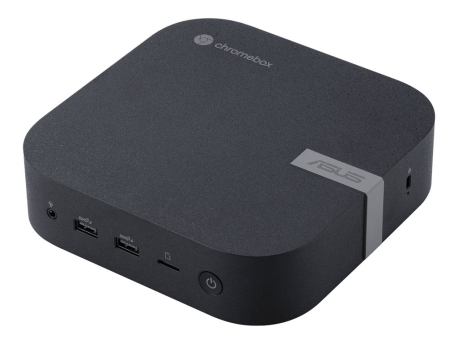

| Product Description: | ASUS Chromebox 5 S3006UN - mini PC Core i3 1220P - 8 GB - SSD 128 GB |
| Type: | Chromebox - mini PC |
| Processor: | 1 x Intel Core i3 (12th Gen) 1220P (up to 4.4 GHz, (10-core) |
| Cache Memory: | 12 MB |
| Cache Per Processor: | 12 MB |
| RAM: | 8 GB (installed) / 32 GB (max) - DDR4 SDRAM |
| Hard Drive: | SSD 128 GB - PCI Express 3.0 - M.2 - NVM Express (NVMe) |
- Specifications
- Description
| General | |
| Type: | Chromebox |
| Product Form Factor: | Mini PC |
| Embedded Security: | Titan-C Security Chip |
| Colour: | Eco black |
| Processor / Chipset | |
| CPU: | Intel Core i3 (12th Gen) 1220P |
| Max Turbo Speed: | 4.4 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores: | 10-core |
| CPU Qty: | 1 |
| Max CPU Qty: | 1 |
| Cache Memory | |
| Installed Size: | 12 MB |
| Cache Per Processor: | 12 MB |
| RAM | |
| Installed Size: | 8 GB (installed) / 32 GB (max) |
| Technology: | DDR4 SDRAM |
| Effective Memory Speed: | 3200 MHz |
| Rated Memory Speed: | 3200 MHz |
| Form Factor: | SO-DIMM 260-pin |
| Slots: | 2 (Total) / 0 (empty) |
| Configuration Features: | 2 x 4 GB |
| Hard Drive | |
| Type: | SSD - M.2 |
| Capacity: | 1 x 128 GB |
| Interface Type: | PCI Express 3.0 |
| Features: | NVM Express (NVMe) |
| Optical Storage | |
| Type: | No optical drive |
| Card Reader | |
| Type: | Card reader |
| Supported Flash Memory Cards: | microSD |
| Monitor | |
| Monitor Type: | None. |
| Graphics Controller | |
| Graphics Processor: | Intel UHD Graphics |
| Video Interfaces: | HDMI, DisplayPort |
| Networking | |
| Interface (Bus) Type: | M.2 2230 |
| Ethernet Ports: | 2.5 Gigabit Ethernet |
| Ethernet Controller: | Realtek RTL8125BG-CG |
| Wireless LAN Supported: | Yes |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6E) |
| Features: | Dual stream (2x2) |
| Expansion / Connectivity | |
| Interfaces: | 2 x USB 3.2 Gen 2 (2 front) (Battery Charging 1.2) ¦ 2 x HDMI ¦ 1 x headphones/microphone (1 in front) ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 2 x USB 3.2 Gen 1 ¦ Thunderbolt 4/USB4/DisplayPort 1.4 (Power Delivery) ¦ DisplayPort 1.4 |
| Miscellaneous | |
| Included Accessories: | VESA mounting kit |
| Theft/Intrusion Protection: | Security lock slot (cable lock sold separately) |
| Security Slot Type: | Kensington security slot |
| Compliant Standards: | UL, VCCI, C-Tick, BSMI, CB, FCC |
| Power | |
| Device Type: | Power adapter |
| Voltage Required: | AC 100-240 V (50/60 Hz) |
| Power Provided: | 150 Watt |
| Operating System / Software | |
| OS Provided: | Google Chrome OS |
| Sustainability Information | |
| ENERGY STAR Certified: | Yes |
| Dimensions & Weight | |
| Width: | 16.65 cm |
| Depth: | 16.58 cm |
| Height: | 4.59 cm |
| Weight: | 800 g |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 50 °C |
The ASUS Chromebox 5 S3006UN redefines efficiency and reliability in a compact package. Designed to deliver powerful computing performance, it features a 10-core Intel Core i3-1220P processor and 8 GB of DDR4 SDRAM, making it capable of handling a variety of demanding tasks with ease. The 128 GB NVMe SSD offers ample storage with fast data access speeds, ensuring that productivity is never hampered by slow load times.
Connectivity is a strong suit of this Chromebox, with a plethora of ports including Thunderbolt 4/USB4/DisplayPort 1.4, HDMI, and USB 3.2, alongside dual 2.5 Gigabit Ethernet for robust networking options. Wireless connectivity is no less impressive, with support for Wi-Fi 6E and Bluetooth 5.2, providing fast and reliable connections to the Internet and wireless devices. Security is also a top priority, with the Titan-C security chip offering peace of mind for users handling sensitive information. ENERGY STAR certification ensures that the ASUS Chromebox 5 S3006UN is not only powerful but also energy-efficient, making it an ideal choice for environmentally conscious users looking for a high-performance desktop solution.
Connectivity is a strong suit of this Chromebox, with a plethora of ports including Thunderbolt 4/USB4/DisplayPort 1.4, HDMI, and USB 3.2, alongside dual 2.5 Gigabit Ethernet for robust networking options. Wireless connectivity is no less impressive, with support for Wi-Fi 6E and Bluetooth 5.2, providing fast and reliable connections to the Internet and wireless devices. Security is also a top priority, with the Titan-C security chip offering peace of mind for users handling sensitive information. ENERGY STAR certification ensures that the ASUS Chromebox 5 S3006UN is not only powerful but also energy-efficient, making it an ideal choice for environmentally conscious users looking for a high-performance desktop solution.
- Ultraslim form factor for space-saving installation
- 10-core Intel Core i3 processor for high-performance multitasking
- 128 GB NVMe SSD for quick boot times and data access
- Wi-Fi 6E and Bluetooth 5.2 for high-speed wireless connectivity
- Titan-C security chip for enhanced data protection
The technical details come from 3rd party. edgemo is not responsible for any errors.
