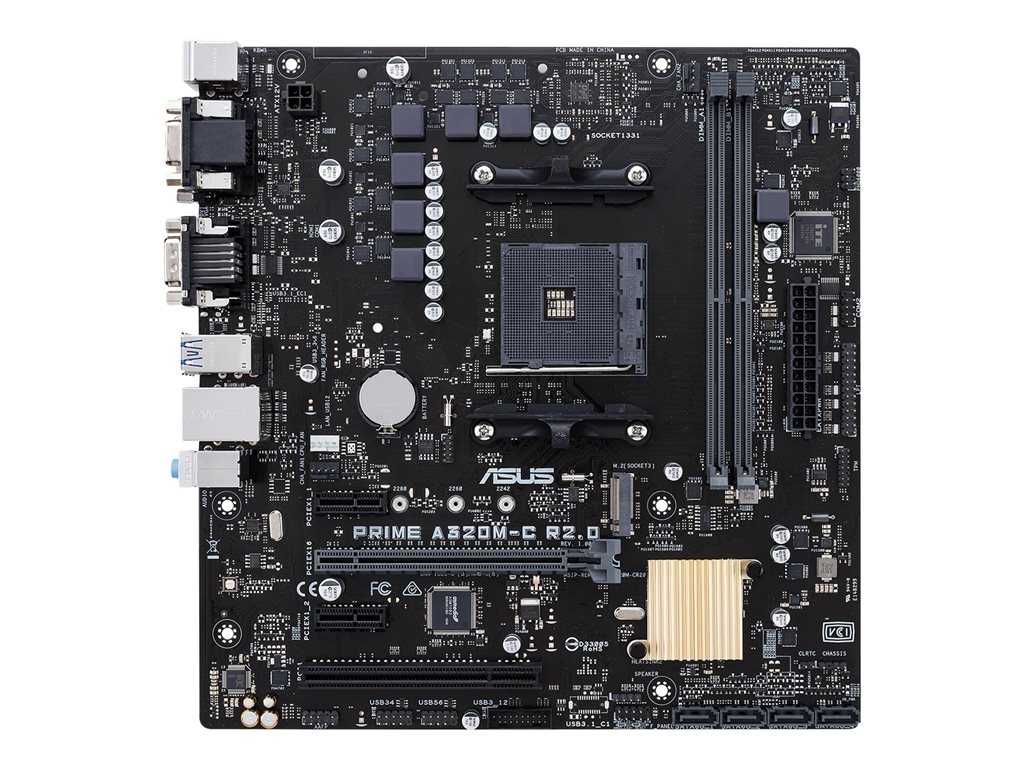

ASUS A320M-C R2.0 - motherboard - micro ATX - Socket AM4 - AMD A320
SKU 90MB0UE0-M0EAY0
Product Description: | ASUS A320M-C R2.0 - motherboard - micro ATX - Socket AM4 - AMD A320 |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD A320 |
Processor Socket: | 1 x Socket AM4 |
Compatible Processors: | Athlon, A series, Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics / 7th Generation A-series / Athlon X4) |
Max RAM Size: | 32 GB |
RAM Supported: | 2 DIMM slots - DDR4, non-ECC, unbuffered |
- Specifications
- Description
General | |
Product Type: | Motherboard - micro ATX |
Chipset Type: | AMD A320 |
Processor Socket: | Socket AM4 |
Max Processors Qty: | 1 |
Compatible Processors: | Athlon, A series, Ryzen (supports 1st and 2nd Generation Ryzen / Ryzen with Radeon Vega Graphics / 7th Generation A-series / Athlon X4) |
Supported RAM | |
Max Size: | 32 GB |
Technology: | DDR4 |
Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.) |
Supported RAM Integrity Check: | Non-ECC |
Registered or Buffered: | Unbuffered |
Features: | Dual channel memory architecture |
Graphics | |
Max Allocated RAM Size: | 2 GB |
Audio | |
Type: | HD Audio (8-channel) |
Audio Codec: | Realtek ALC887 |
Compliant Standards: | High Definition Audio |
LAN | |
Network Controller: | Realtek RTL8111H |
Network Interfaces: | Gigabit Ethernet |
Expansion / Connectivity | |
Expansion Slots: | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x8 mode (with Ryzen with Radeon Vega Graphics / AMD 7th Generation A-series / Athlon X4 CPU)) ¦ 2 x PCIe 2.0 x1 ¦ 1 x PCI |
Storage Interfaces: | SATA-600 -connectors: 4 x 7pin Serial ATA ¦ SATA-600 / PCIe -connectors: 1 x M.2 |
Interfaces: | 1 x LAN (Gigabit Ethernet) ¦ 4 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x PS/2 mouse ¦ 1 x VGA ¦ 2 x USB 2.0 ¦ 1 x HDMI ¦ 1 x DVI-D ¦ 1 x serial |
Internal Interfaces: | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x parallel - header |
Power Connectors: | 4-pin ATX12V connector, 24-pin main power connector |
Features | |
BIOS Type: | AMI |
BIOS Features: | WfM 2.0 support, Multilingual BIOS, ASUS Quiet Thermal Solution, UEFI BIOS, ASUS EZ Flash 3, DMI 3.0 support, SMBIOS 3.0 support, ACPI 6.1 support |
Hardware Features: | ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-Slot, CrashFree BIOS 3, ASUS Fan Xpert, ASUS DIGI+ VRM, Fanless Design Heatsink, ASUS Enhanced DRAM Overcurrent Protection, ASUS Stainless Steel Back I/O, LANGuard, ASUS Overvoltage Protection, ASUS 5X Protection II |
Miscellaneous | |
Included Accessories: | 1 x M.2 screw, I/O back cover |
Cables Included: | 2 x Serial ATA cable |
Software Included: | ASUS EZ Flash 3 |
Compliant Standards: | Plug and Play |
Width: | 24.4 cm |
Depth: | 23.6 cm |
ASUS's team of world-class engineers are passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible - maximizing performance, stability and compatibility for the very best DIY PC experiences. Simply stated: it's time for Prime.
- 5X Protection II
- Pumped-up throughput, 2.5x higher surge tolerance
- Circuit-protecting power design
- Dedicated CPU and case fan controls
- Ultrafast transfer speeds
