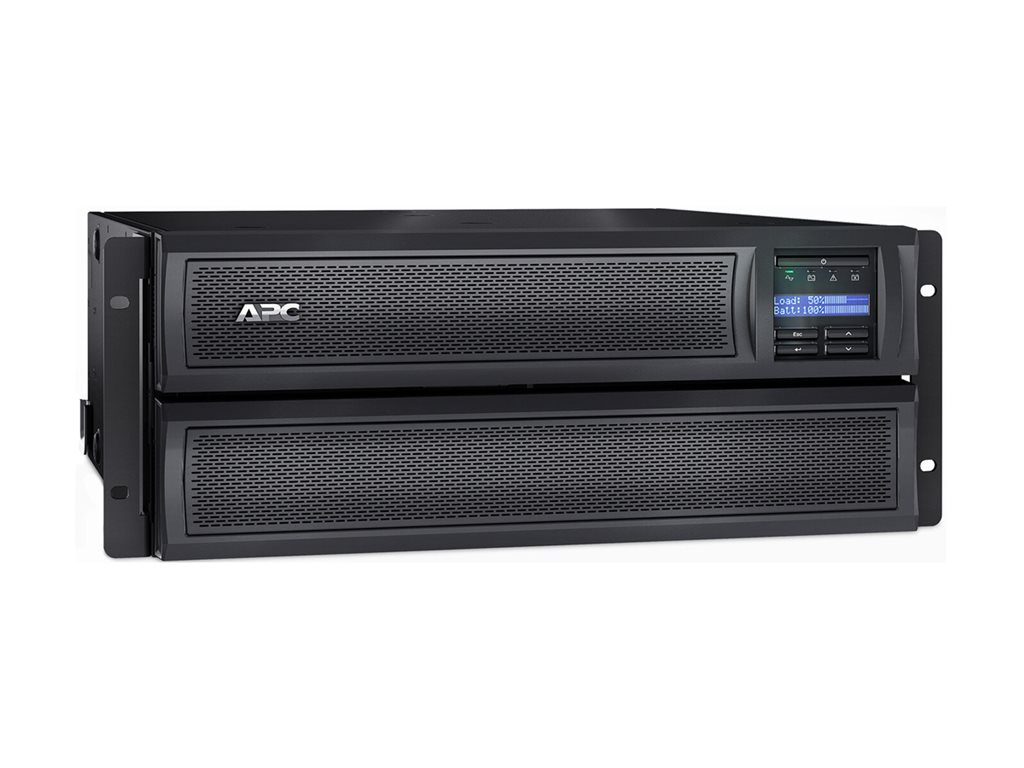

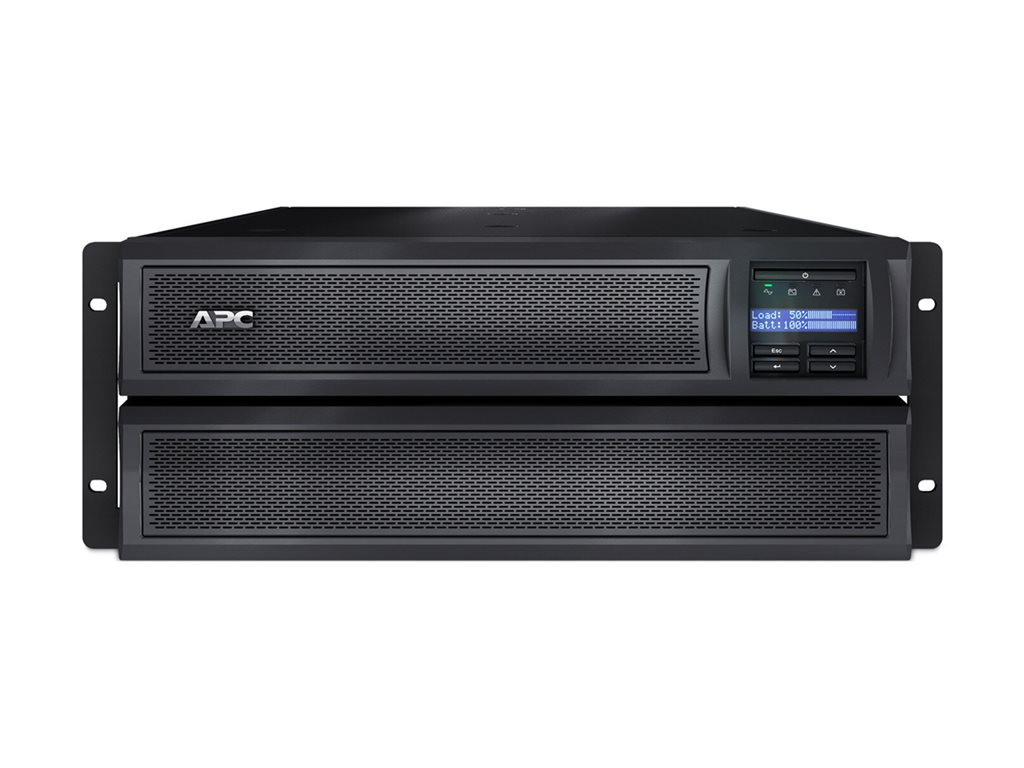

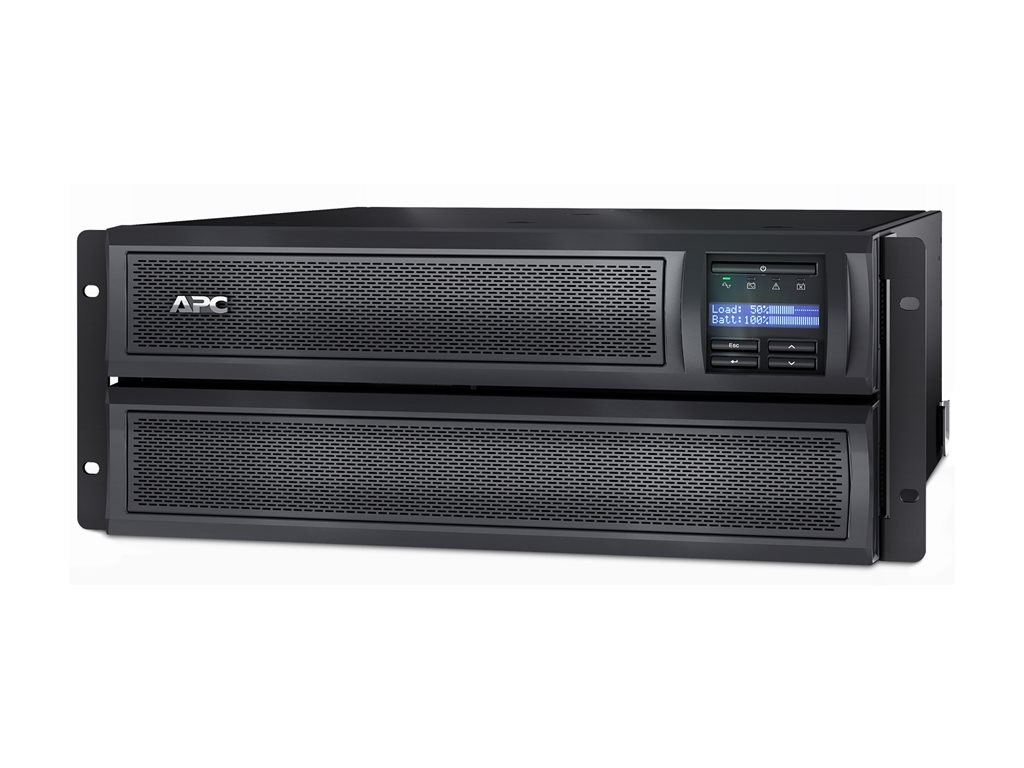

Printers & POSAPC Smart-UPS X 3000 Rack/Tower LCD - UPS - 2700 Watt - 3000 VA
SKU SMX3000LV
| Product Description: | APC Smart-UPS X 3000 Rack/Tower LCD - UPS - 2700 Watt - 3000 VA |
| Device Type: | UPS - rack-mountable / external |
| Rack Size: | 4U |
| Weight: | 38.64 kg |
| Localisation: | Canada, United States |
| Input Voltage: | AC 120 V |
| Output Voltage: | AC 120 V ± 5% |
- Specifications
- Description
| General | |
| Device Type: | UPS - rack-mountable / external |
| Battery Enclosure Type: | Internal |
| Height (Rack Units): | 4U |
| Colour: | Black |
| Localisation: | Canada, United States |
| Power Device | |
| UPS Technology: | Line interactive |
| Input Voltage: | AC 120 V |
| Input Voltage Range: | AC 70 - 153 V |
| Frequency Provided: | 47 - 53 / 57 - 63 Hz |
| Frequency Required: | 50/60 Hz |
| Input Connectors: | 1 x power NEMA L5-30 |

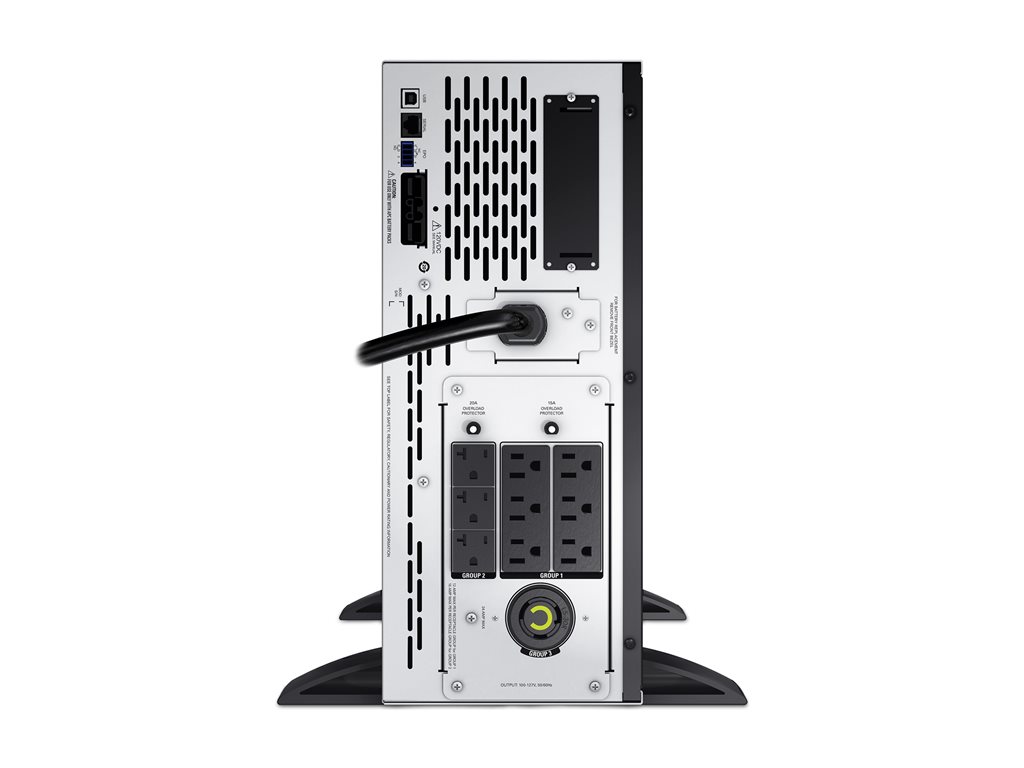

| Power Output Connectors Details: | 6 x power NEMA 5-15R ¦ 3 x power NEMA 5-20R ¦ 1 x power NEMA L5-30R |
| Output Voltage: | AC 120 V ± 5% - 47 - 53 / 57 - 63 Hz |
| Power Capacity: | 2700 Watt / 3000 VA |
| Output Waveform: | Sinewave |
| Surge Suppression: | Yes |
| Surge Energy Rating: | 540 Joules |
| Battery | |
| Quantity: | 1 |
| Technology: | Lead Acid |
| Run Time (Up To): | 6 min at full load ¦ 18 min at half load |
| Recharge Time: | 3 hours |
| Transfer Time: | 2 ms |
| Networking | |
| Remote Management Interface: | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces: | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) |
| Expansion Slots: | 1 (total) / 1 (free) x SmartSlot |
| Miscellaneous | |
| Included Accessories: | Tower stand |
| Cables Included: | Serial cable - external ¦ USB cable - external ¦ Power cable 2.44 m |
| Rack Mounting Kit: | Included |
| Features: | Audible alarm, LCD display, Automatic Voltage Regulation (AVR), LED indicators, hot-swappable batteries |
| Compliant Standards: | CSA, TUV, BSMI, NOM, UL 1449, UL 1778, EN55022 Class A, EN 50091-2, RoHS, FCC Part 15 A, REACH, VCCI Class A |
| Software / System Requirements | |
| Software Included: | Drivers & Utilities |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 0 - 95% |
| Sound Emission: | 55 dBA |
| Dimensions & Weight | |
| Width: | 48.3 cm |
| Depth: | 43.2 cm |
| Height: | 17.8 cm |
| Weight: | 38.64 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 58.6 cm |
| Shipping Depth: | 63.3 cm |
| Shipping Height: | 33 cm |
| Shipping Weight: | 47.73 kg |
| Compatibility Information | |
| Designed For: | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4000MV, AR4000MVX429, AR4000MVX432, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC, SMX2000LVNC, SMX2000LVUS, SMX3000HVTUS, SRT1000RMXLA-NC, SU2200R3X167, SYAF8KRMTX424 |
APC award-winning Smart-UPS is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery.
- Intuitive LCD interface
- High frequency design
- Auto recognition of external batteries
- Predictive replace battery date
- Green mode
- Pure sine wave output on battery
- Multiple switched outlet groups
- Cold-start capable
- Temperature-compensated battery charging
- Scalable runtime
- Intelligent battery management

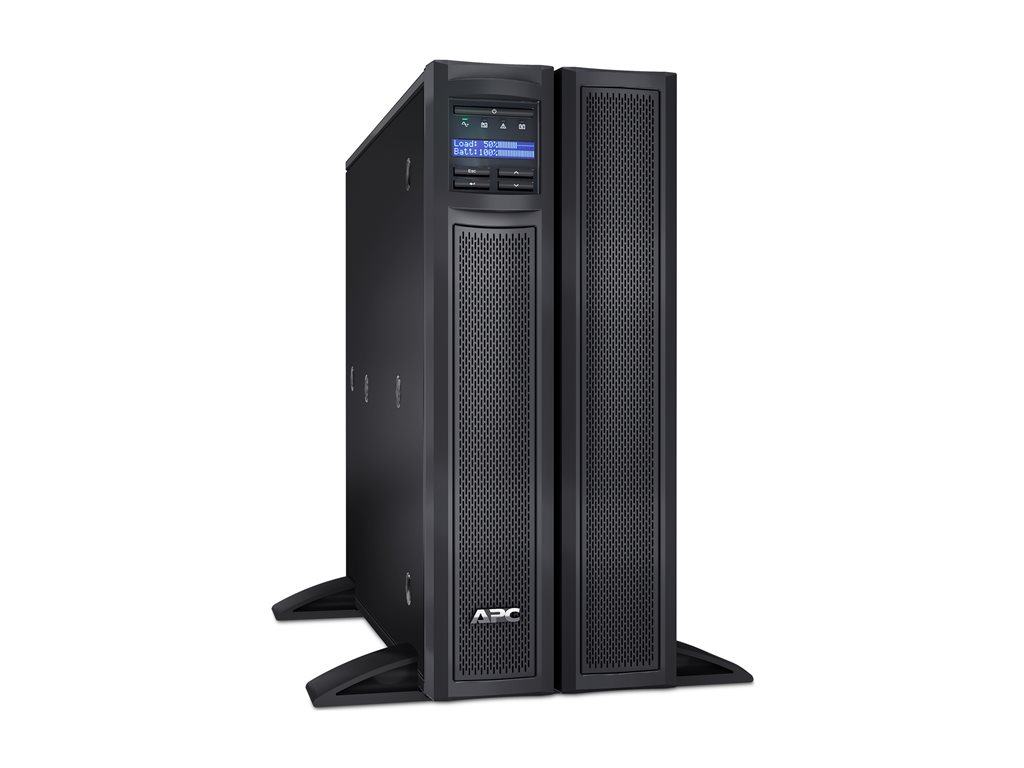

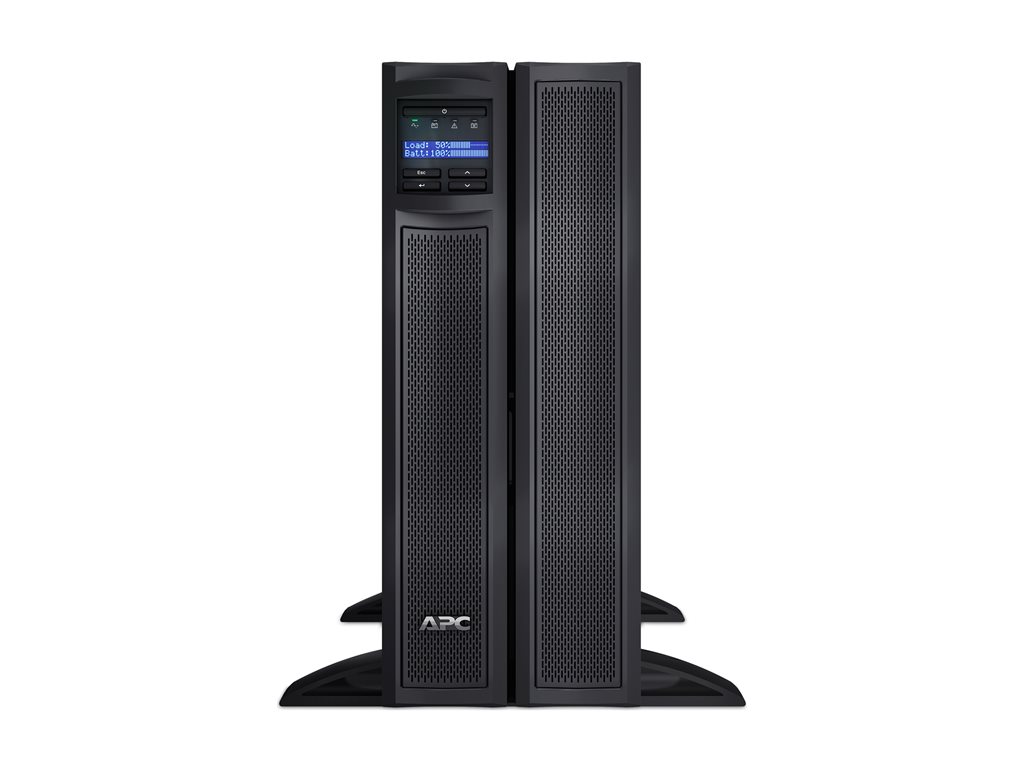

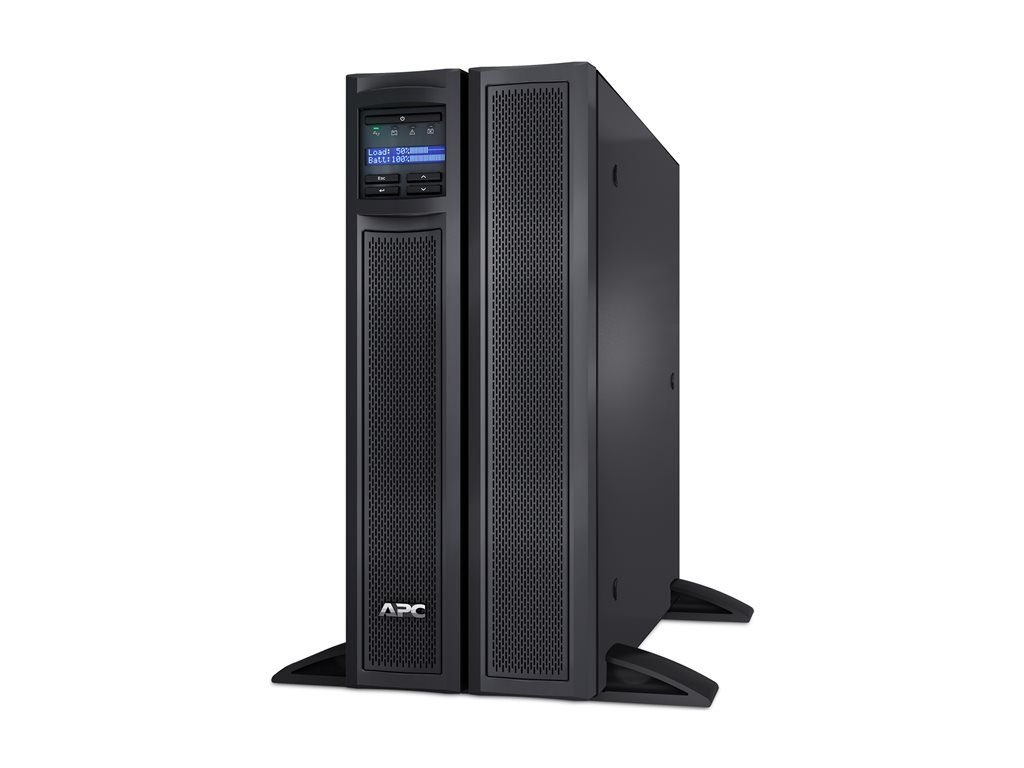

- Rack/tower convertible
- Sequenced network shutdown and reboot
The technical details come from 3rd party. edgemo is not responsible for any errors.
