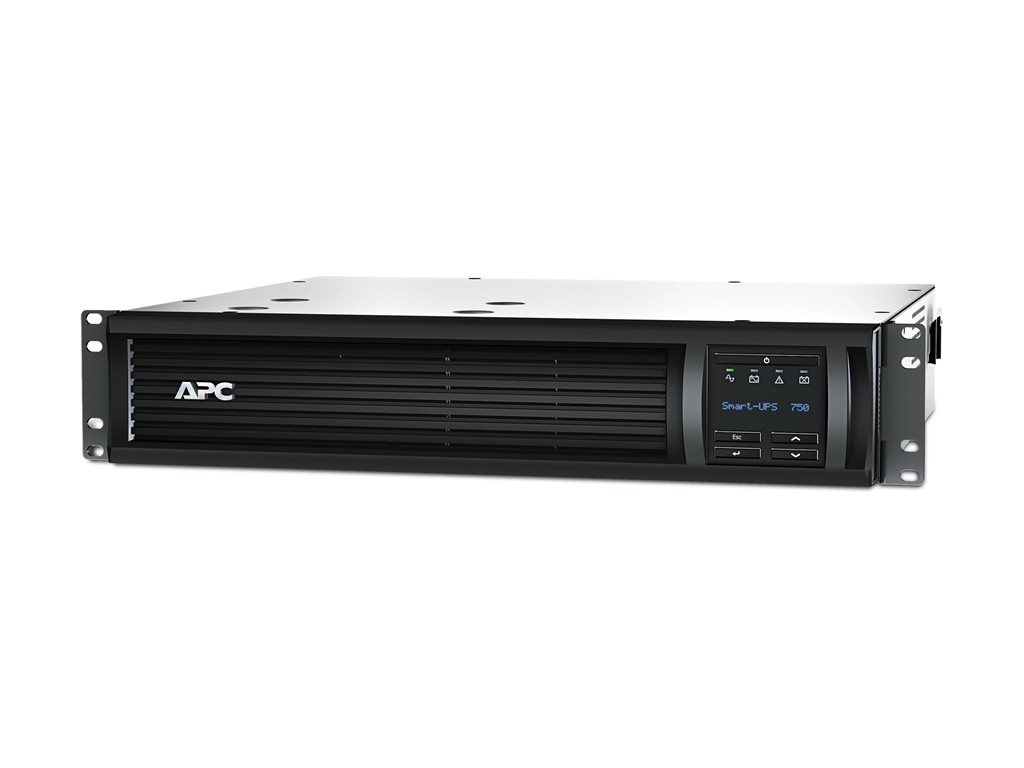

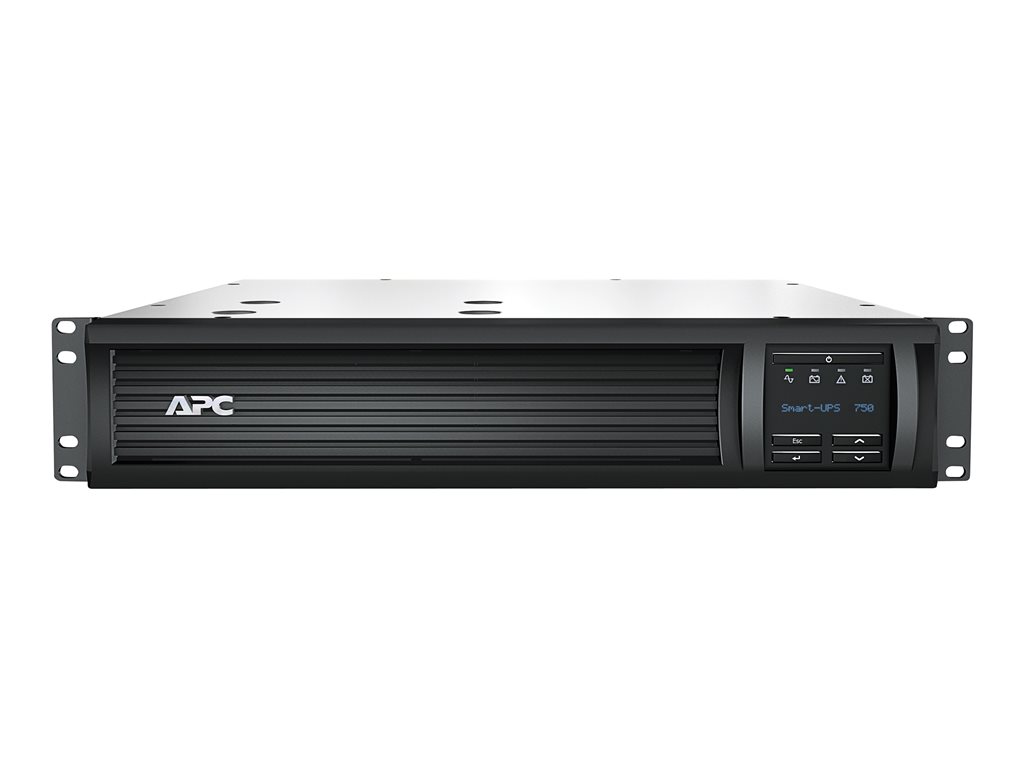

Printers & POSAPC Smart-UPS 750VA LCD RM - UPS - 500 Watt - 750 VA
SKU SMT750RMI2UC
| Product Description: | APC Smart-UPS 750VA LCD RM - UPS - 500 Watt - 750 VA |
| Device Type: | UPS - rack-mountable |
| Rack Size: | 2U |
| Weight: | 21.23 kg |
| Input Voltage: | AC 230 V |
| Output Voltage: | AC 230 V |
| Power Capacity: | 500 Watt / 750 VA |
- Specifications
- Description
| General | |
| Device Type: | UPS - rack-mountable |
| Height (Rack Units): | 2U |
| Colour: | Black |
| Power Device | |
| UPS Technology: | Line interactive |
| Input Voltage: | AC 230 V |
| Input Voltage Range: | AC 160 - 286 V |
| Input Voltage Range (Adjustable): | AC 150 - 300 V |
| Frequency Provided: | 50/60 Hz |
| Frequency Required: | 50/60 Hz ± 3Hz |

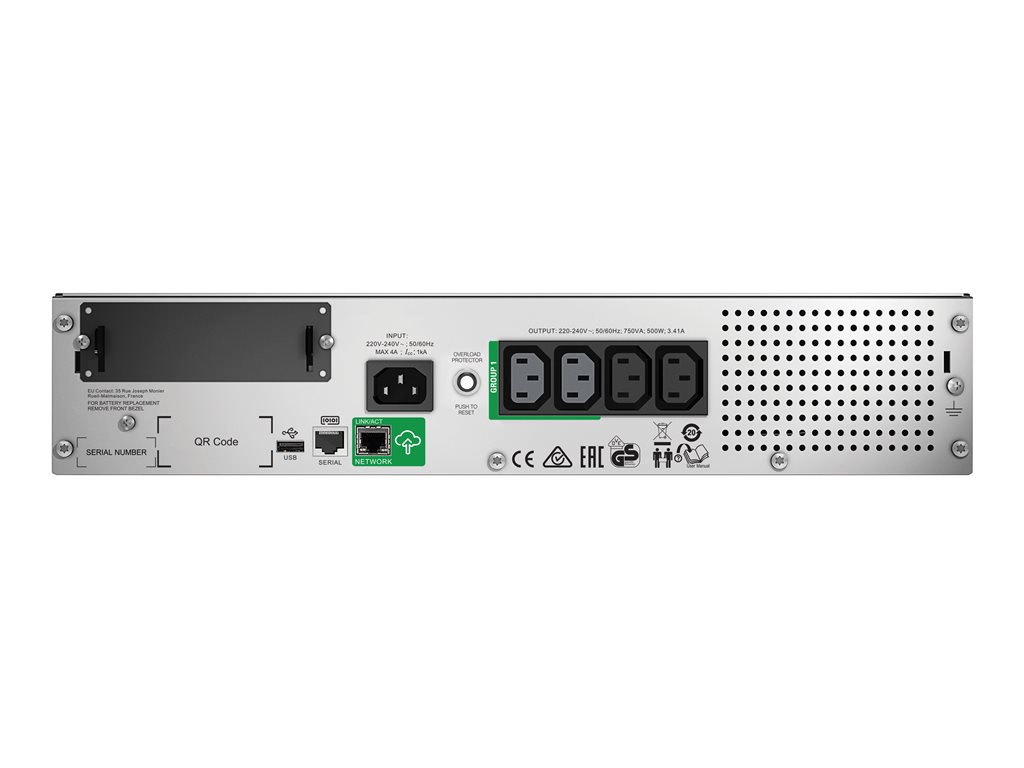

| Input Connectors: | 1 x power IEC 60320 C14 |
| Power Output Connectors Details: | 4 x power IEC 60320 C13 ¦ 2 x IEC jumper |
| Output Voltage: | AC 230 V 50/60 Hz |
| Power Capacity: | 500 Watt / 750 VA |
| Output Waveform: | Sinewave |
| Surge Suppression: | Yes |
| Battery | |
| Technology: | Lead Acid |
| Run Time (Up To): | 6 min at full load ¦ 5 min at 500 Watts ¦ 24 min at 200 Watts |
| Recharge Time: | 3 hours |
| Features: | Maintenance free, sealed, leak-proof |
| Networking | |
| Remote Management Interface: | Ethernet, RS-232, USB |
| Expansion / Connectivity | |
| Interfaces: | 1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B ¦ Management (Ethernet) - RJ-45 |
| Expansion Slots: | 1 (total) / 1 (free) x SmartSlot |
| Miscellaneous | |
| Features: | Automatic Voltage Regulation (AVR), LCD display, audible alarm, energy metre, LED indicators |
| Compliant Standards: | VDE, EN 62040-2, RCM, EN 62040-1 |
| Software / System Requirements | |
| Software Included: | APC PowerChute Business Edition |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 0 - 95% |
| Sound Emission: | 42 dBA |
| Dimensions & Weight | |
| Width: | 43.2 cm |
| Depth: | 40.9 cm |
| Height: | 8.6 cm |
| Weight: | 21.23 kg |
| Compatibility Information | |
| Designed For: | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF002, ACF102BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3103SP, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3106SP, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X432, AR7050, NBWL0356A |
Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
- Intuitive LCD interface - provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys
- Predictive replace battery date - dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning
- Energy meter - provides actual kilowatt hours of usage for energy conscious users
- Pure sine wave output on battery - simulates utility power to provide the highest degree of compatibility for active PFC servers and sensitive electronics
- Single switched outlet group - single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding
- High online efficiency - reduces utlility costs, generates less heat
- SmartSlot - customize UPS capabilities with management cards
- Cold-start capable - provides temporary battery power when the utility power is out
- Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
- Network manageable - provides remote power management of the UPS over the network
- Intelligent battery management - maximizes battery performance, life, and reliability through intelligent, precision charging
- Power conditioning - protects connected loads from surges, spikes, lightning, and other power disturbances
- Temperature-compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature
- Automatic restart of loads after UPS shutdown - automatically starts up the connected equipment upon the return of utility power
- Automatic self-test - periodic battery self-test ensures early detection of a battery that needs to be replaced
- Disconnected battery notification - warns when a battery is not available to provide backup power
- Network manageable - provides remote power management of the UPS over the network
- Audible alarms - actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
- LED status indicators - quickly understand unit and power status with visual indicators
- Serial connectivity - provides management of the UPS via a serial port
- Adjustable voltage-transfer points - maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
- Adjustable voltage sensitivity - provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
The technical details come from 3rd party. edgemo is not responsible for any errors.
