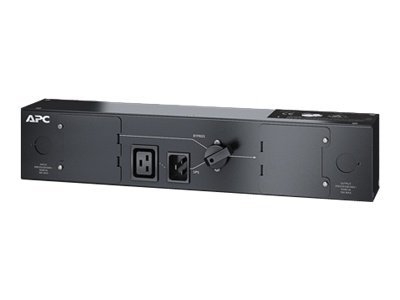

Printers & POSAPC Service Bypass Panel - power distribution unit - 3000 VA
SKU SBP3000RMHW
| Product Description: | APC Service Bypass Panel - power distribution unit - 3000 VA |
| Device Type: | Power distribution unit - rack-mountable |
| Rack Size: | 2U |
| Weight: | 2.3 kg |
| Input Voltage: | AC 230 V |
| Output Voltage: | AC 230 V |
| Power Capacity: | 3000 VA |
- Specifications
- Description
| General | |
| Device Type: | Power distribution unit - rack-mountable |
| Height (Rack Units): | 2U |
| Colour: | Black |
| Power Device | |
| Input Voltage: | AC 230 V |
| Input Voltage Range: | AC 220 - 240 V |
| Frequency Required: | 50/60 Hz |
| Input Connectors: | 2 x power IEC 60320 C20, hardwire |
| Power Output Connectors Details: | 1 x hardwire 3-wire (HN + G) ¦ 1 x power IEC 60320 C19 |
| Output Voltage: | AC 230 V |
| Max Electric Current: | 16 A |
| Power Capacity: | 3000 VA |
| Miscellaneous | |
| Rack Mounting Kit: | Included |
| Features: | Built-in bypass switch, overload protection |
| Compliant Standards: | VDE, RoHS, REACH |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature: | 0 °C |
| Max Operating Temperature: | 40 °C |
| Humidity Range Operating: | 0 - 95% |
| Dimensions & Weight | |
| Width: | 43.2 cm |
| Depth: | 7.6 cm |
| Height: | 8.9 cm |
| Weight: | 2.3 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width: | 46.3 cm |
| Shipping Depth: | 29.5 cm |
| Shipping Height: | 15.1 cm |
| Shipping Weight: | 3.5 kg |
| Compatibility Information | |
| Designed For: | P/N: DLT3000RMI2U, SMC2000I, SMC2000I-2U, SMC3000I, SMC3000RMI2U, SMT2200I, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RMI2U, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RMI2U, SMT3000RMI2UC, SMT3000RMI2UNC, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX3000HV, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000RMHV2U, SMX3000RMHV2UNC, SRT1500XLI, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT2200XLI-KR, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000RMXLW-IEC, SRT3000XLI, SRT3000XLW-IEC, SUA2200I, SUA2200ICH-45, SUA2200RMXLI3U, SUA2200UXICH, SUA3000I, SUA3000ICH, SUA3000ICH-45, SUA3000I-IN, SUA3000R2ICH, SUA3000RMI2U, SUA3000RMXLI3U, SUA3000UXICH, SUA3000XLI, SURT3000XLICH, SURTD3000RMXLI, SURTD3000UXI, SURTD3000XLI, SURTD3000XLI-CC |
- 19 inch rack-mountable
- Meets UL requirements
- Quick transfer rate
- Wrap around system bypass
The technical details come from 3rd party. edgemo is not responsible for any errors.
