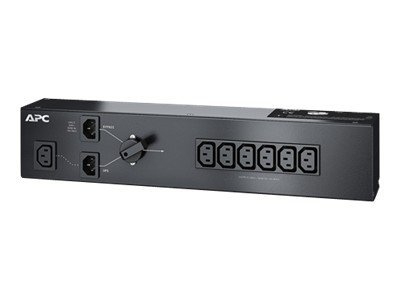

APC Service Bypass Panel - power distribution unit - 1500 VA

SKU SBP1500RMI
Product Description:APC Service Bypass Panel - power distribution unit - 1500 VA
Device Type:Power distribution unit - rack-mountable
Rack Size:2U
Weight:2 kg
Input Voltage:AC 230 V
Output Voltage:AC 230 V
Power Capacity:1500 VA
In Stock(2)
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power distribution unit - rack-mountable
Height (Rack Units):2U
Colour:Black
Power Device
Input Voltage:AC 230 V
Input Voltage Range:AC 220 - 240 V
Frequency Required:50/60 Hz
Input Connectors:2 x power IEC 60320 C14
Power Output Connectors Details:7 x power IEC 60320 C13
Output Voltage:AC 230 V
Max Electric Current:10 A
Power Capacity:1500 VA
Miscellaneous
Cables Included:Power cable 2 m
Rack Mounting Kit:Included
Features:Built-in bypass switch, overload protection
Compliant Standards:VDE, RoHS Exemption 7b, REACH
Manufacturer Warranty
Service & Support:Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:40 °C
Humidity Range Operating:0 - 95%
Dimensions & Weight
Width:43.2 cm
Depth:7.6 cm
Height:8.9 cm
Weight:2 kg
Dimensions & Weight (Shipping)
Shipping Width:46.3 cm
Shipping Depth:29.5 cm
Shipping Height:15.1 cm
Shipping Weight:3.5 kg
Compatibility Information
Designed For:P/N: SMC1500I, SMC1500I-2U, SMC1500I-2UC, SMC1500IC, SMT1000I, SMT1000I-6W, SMT1000I-AR, SMT1000IC, SMT1500I, SMT1500I-AR, SMT1500IC, SMT1500R2I-6W, SMT1500R2I-AR, SMT1500RMI1U, SMT1500RMI2U, SMT1500RMI2UC, SMT1500RMI2UNC, SMT750I, SMT750RMI2UNC, SMX1000I, SMX1500RMI2U, SMX1500RMI2UNC, SMX750I, SMX750INC, SRTL1000RMXLI, SRTL1000RMXLI-NC, SRTL1500RMXLI, SRTL1500RMXLI-NC, SUA1000I, SUA1000ICH, SUA1000ICH-45, SUA1000R2ICH, SUA1000RMI1U, SUA1000RMI2U, SUA1000UXI, SUA1000UXICH, SUA1000XLI, SUA1500I, SUA1500ICH, SUA1500ICH-45, SUA1500I-IN, SUA1500IX38, SUA1500R2ICH, SUA1500RMI2U, SUA750I, SUA750ICH, SUA750ICH-45, SUA750RMI1U, SUA750RMI2U, SURT1000RMXLI, SURT1000RMXLI-NC, SURT1000UXI, SURT1000UXICH, SURT1000XLI, SURT1000XLICH, SURT1000XLI-NC
vis mere
Extremely reliable service bypass panels designed for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS products.
  • 19 inch rack-mountable
  • Meets UL requirements
  • Quick transfer rate
  • Wrap around system bypass




The technical details come from 3rd party. edgemo is not responsible for any errors.
