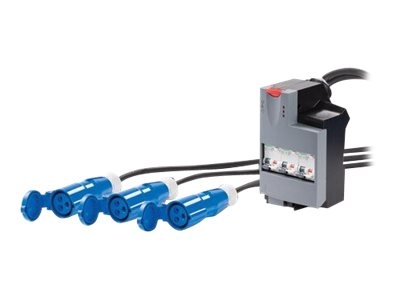

APC Power Distribution Module - power distribution unit

SKU PDM2316IEC-3P30R-1
Product Description:APC Power Distribution Module - power distribution unit
Device Type:Power distribution unit - plug-in module
Weight:6.8 kg
Input Voltage:AC 400 V
Output Voltage:230 V
Output connectors:3 x power IEC 60309 16A
Remote Management Protocol:SNMP
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power distribution unit - plug-in module
Colour:Grey
Power Device
Input Voltage:AC 400 V
Frequency Required:50 Hz
Power Output Connectors Details:3 x power IEC 60309 16A
Output Voltage:230 V
Max Electric Current:16 A
Circuit Protection:Circuit breaker
Networking
Remote Management Protocol:SNMP
Miscellaneous
Cables Included:Power cable - integrated - 3 m ¦ Power cable - integrated - 3.6 m ¦ Power cable - integrated - 4.2 m
Features:LED indicators
Compliant Standards:VDE, RoHS
Manufacturer Warranty
Service & Support:Limited warranty - 1 year
Environmental Parameters
Min Operating Temperature:0 °C
Max Operating Temperature:30 °C
Humidity Range Operating:0 - 95%
Dimensions & Weight
Weight:6.8 kg
Dimensions & Weight (Shipping)
Shipping Weight:7.7 kg
Compatibility Information
Designed For:P/N: AP7551, AP7551-DB, AP7551-SR, AP7551-ST, AP7551X29, AP7554, AP7554-MA, AP8659EU3, AP8858EU3, AP8958EU3, AP8959EU3, AP8959EU3 - CIF, PDPM138H-5U, PDPM138H-R, PDPM277H, PDUM160H-B, SY128K160H, SY128K160H-NB, SY128K160H-PD, SY160K160H, SY160K160H-NB, SY160K160H-PD, SY16K48H-PD, SY16K48H-PDNB, SY32K160H, SY32K160H-NB, SY32K160H-PD, SY32K48H-PD, SY32K48H-PDNB, SY32K96H, SY32K96H-NB, SY32K96H-PD, SY48K48H-PD, SY48K48H-PDNB, SY64K160H, SY64K160H-NB, SY64K160H-PD, SY64K96H, SY64K96H-NB, SY64K96H-PD, SY96K160H, SY96K160H-NB, SY96K160H-PD, SY96K96H, SY96K96H-NB, SY96K96H-PD
vis mere
Factory assembled and tested Power Distribution Modules include circuit breaker, power cord, power connection, and circuit monitoring. Auto-detection of modules by the Modular PDU minimizes installation time.
  • Built-in Web/SNMP management
  • Low cost power
  • Smallest footprint
  • System mobility
  • Current monitoring
  • Local and web-based monitoring




The technical details come from 3rd party. edgemo is not responsible for any errors.
