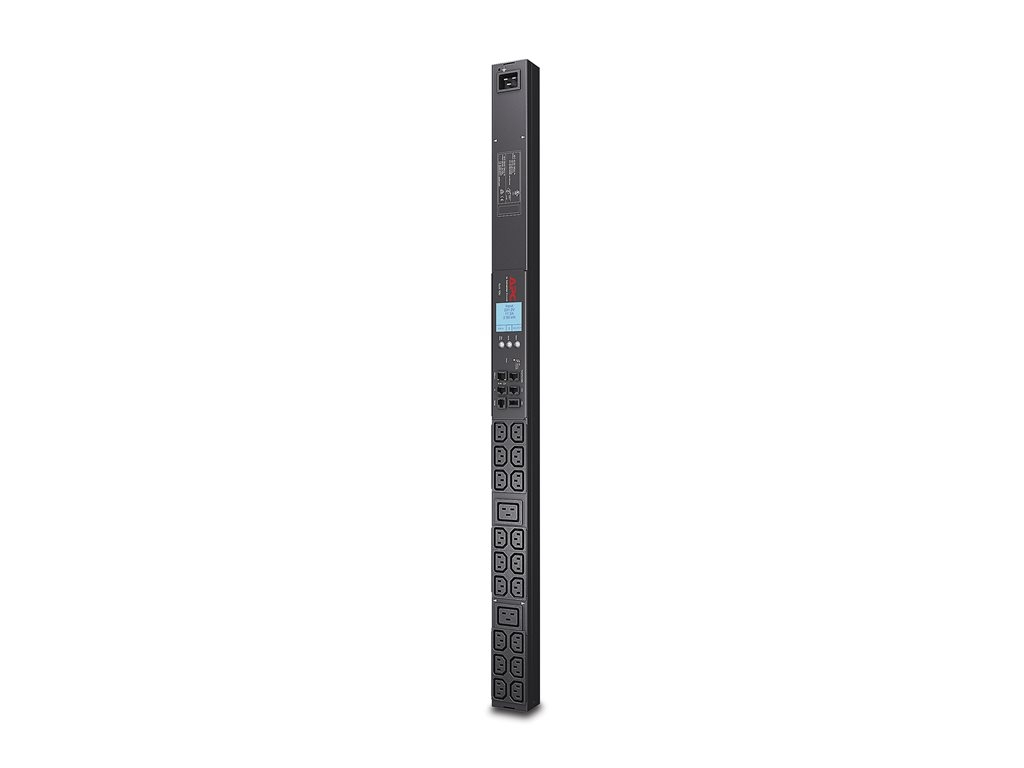

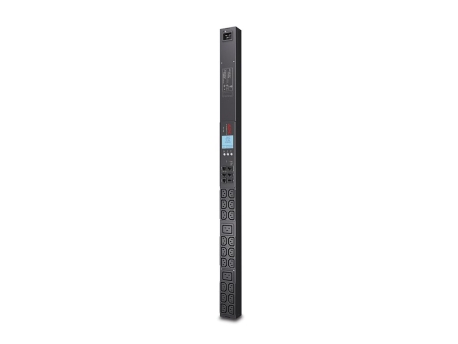

APC Metered Rack PDU - power distribution strip

SKU AP8858
Product Description:APC Metered Rack PDU - power distribution strip
Device Type:Power distribution strip - rack-mountable
Weight:2.9 kg
Input Voltage:AC 200/208/230 V
Output Voltage:AC 200/208/230 V
Input Connectors:Power IEC 60320 C20
Output connectors:18 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Not in stock
Login for price
  • Specifications
  • Description
  • Accessories
General
Device Type:Power distribution strip - rack-mountable
Colour:Black
Power Device
Input Voltage:AC 200/208/230 V
Input Voltage Range:AC 100 - 240 V
Frequency Required:50/60 Hz
Input Connectors:Power IEC 60320 C20
Power Output Connectors Details:18 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19
Output Voltage:AC 200/208/230 V
Max Electric Current:20 A
Networking
Remote Management Interface:RS-232
Remote Management Protocol:SNMP, Telnet, HTTP
Expansion / Connectivity
Interfaces:1 x management (RS-232)
Miscellaneous
Cables Included:Serial cable ¦ Power cable
Features:LED indicators, firmware upgradable
Compliant Standards:VDE, IEC 60950, CSA 22.2 No. 60950, RoHS, UL 60950-1, REACH
Manufacturer Warranty
Service & Support:Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature:5 °C
Max Operating Temperature:45 °C
Humidity Range Operating:5 - 95%
Dimensions & Weight
Width:5.6 cm
Depth:4.4 cm
Height:90.2 cm
Weight:2.9 kg
Dimensions & Weight (Shipping)
Shipping Width:16.2 cm
Shipping Depth:10.7 cm
Shipping Height:112 cm
Shipping Weight:4.2 kg
Compatibility Information
Designed For:P/N: ACDC2513, AP6221CH, AR2200, AR2280, AR2487G, AR3100G, AR3100TAA, AR3100W, AR3103SP, AR3105SP, AR3105W, AR3106SP, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR4024IX431, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4038IX432, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, DLT3000RMI2U, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SMC1000-BR, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I, SMC2000I-2U, SMC3000I, SMC3000RMI2U, SMT1500RM1U, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC, SMT3000RMI2UNC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LVNCUS, SMX2000LVUS, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX3000HV-BR, SMX3000HVTUS, SMX3000LV2U-BR, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750US, SPD10KCBL, SPD20KCBL, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10KRMXLT-IEC, SRT10KXLI, SRT10KXLT-IEC, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT1500XLI, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT2200XLI-KR, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000RMXLW-IEC, SRT3000XLI, SRT3000XLW-IEC, SRT5KRMXLI, SRT5KRMXLI-6W, SRT5KRMXLIM, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT5KXLI, SRT6KRMXLI, SRT6KRMXLI-6W, SRT6KRMXLIM, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT6KXLI, SRT6KXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SRT8KXLI, SRT8KXLT-IEC, SUA2200ICH-45, SUA3000ICH-45, SUA3000I-IN, SURT3000XLI-ET, SURT5000XLIX438, SURTD5000XLI-ET, SYAF16KRMICH
vis mere
APC Metered Rack PDUs distribute reliable rack power distribution via a single input with multiple output receptacles. Real-time remote monitoring and user-defined alarms help prevent potential circuit overloads that can cause accidental power loss to critical equipment. Easily access, configure, and manage this metered PDU from remote locations. A network management interface provides standards-based management via Web, SNMP, and Command Line Interface. This Metered PDU from APC provides (36) IEC 60320 C13 and (6) IEC 60320 C19 outlets to supply power to rack equipment. Locking IEC receptacles enable locking power cord compatibility to reduce the probability of accidentally disconnecting cords and dropping loads. Volts, amps, real power (kW), and energy (kWh) data is provided to support energy management. An embedded log memory to reports historic metered data. Display details current, power, and voltage measurements and offers local user access. An environmental monitoring port for external temperature/humidity monitoring is available (sensor sold separately model AP9335T or AP9335TH). Easily mount this vertical PDU in racks or enclosures. It occupies zero U of valuable rack space, which allows space for more equipment in the rack. This vertical PDU does not require additional tools to mount into APC NetShelter Enclosures. Enables a quick recovery from overload events and breakers are ultra-low profile. Packaging Includes PDU, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable.
  • Remote management capabilities
  • Local current monitoring display
  • Alarm thresholds
  • Load indicator LED
  • Integrates with StruxureWare data center expert
  • Flash upgradeable
  • Single input power source




The technical details come from 3rd party. edgemo is not responsible for any errors.
