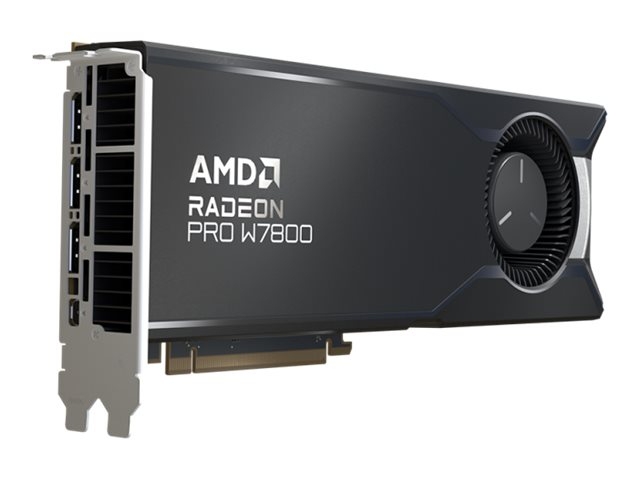

AMD Radeon Pro W7800 - graphics card - Radeon Pro W7800 - 32 GB
SKU 100-300000075
Product Description: | AMD Radeon Pro W7800 - graphics card - Radeon Pro W7800 - 32 GB |
Device Type: | Graphics card |
Bus Type: | PCI Express 4.0 x16 |
Graphics Engine: | AMD Radeon Pro W7800 |
Memory: | 32 GB GDDR6 |
Stream Processors: | 4480 |
Memory Interface: | 256-bit |
- Specifications
- Description
General | |
Device Type: | Graphics card |
Bus Type: | PCI Express 4.0 x16 |
Graphics Engine: | AMD Radeon Pro W7800 |
Stream Processors: | 4480 |
VR Ready: | Yes |
Max Resolution: | 12288 x 6912 |
Max Resolution Details: | DisplayPort: 12288 x 6912 at 120 Hz (single display) / 6144 x 3456 at 60 Hz (dual displays) / 4096 x 2160 at 120 Hz (four displays) |
Max Monitors Supported: | 4 |
Interfaces Details: | 3 x DisplayPort ¦ Mini DisplayPort |
API Supported: | OpenGL 4.6, DirectX 12 Ultimate, OpenCL 2.1, Vulkan 1.3 |
Features: | Error Correcting Codes (ECC) Memory, Full 10-bit Display Pipeline, 3D Stereo Connectivity, HDR Ready, Radeon VR Ready Creator, 10-bit colour, Radeon ProRender, AMD Remote Workstation, Radeon Media Engine, AMD Infinity Cache, full-height dual-slot, AV1 decode support, AV1 encode support, hardware raytracing, AMD Viewport Boost, 12-bit colour, AMD Software: Pro Edition, dual H265/HEVC decode and encode support, RDNA 3 Architecture, 70 Ray Accelerators, 140 AI Accelerators, 70 Compute Units, 90.5 Tflops peak half-precision floating point performance, 45.2 Tflops peak half single precision matrix (FP32) performance, dual 4K H264 decode and encode support |
Memory | |
Size: | 32 GB |
Technology: | GDDR6 SDRAM |
Bus Width: | 256-bit |
Bandwidth: | 576 GBps |
System Requirements | |
OS Required: | Linux (64-bit), Windows 10 64-bit Edition, Windows 11 |
Required Power Supply: | 700 W |
Additional Requirements: | 2 x 8 pin PCI Express power connector |
Miscellaneous | |
Compliant Standards: | DSC, DisplayPort 2.1 |
Depth: | 28 cm |
- GDDR6 memory with ECC support
- Efficient chiplet design
- 2x AI accelerators per compute unit
- 2nd generation Ray Tracing
- 2x simultaneous encode/decode streams
- AV1 encode and decode
- AI enhanced video encode
- AMD Radiance Display engine
- DisplayPort 2.1 with up to 80Gbit/s
- Up to 12K120 display support
- Support for next-generation displays
