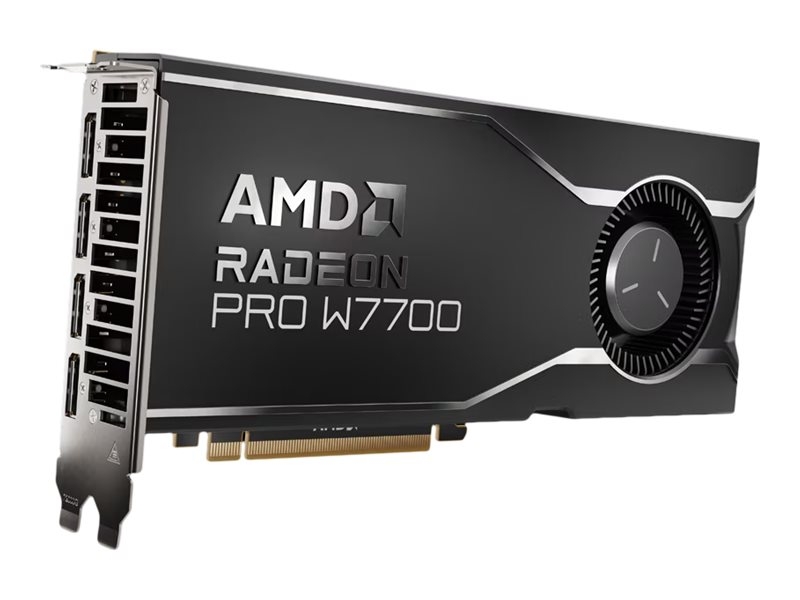

AMD Radeon Pro W7700 - graphics card - Radeon Pro W7700 - 16 GB
SKU 100-300000006
Product Description: | AMD Radeon Pro W7700 - graphics card - Radeon Pro W7700 - 16 GB |
Device Type: | Graphics card |
Bus Type: | PCI Express 4.0 x16 |
Graphics Engine: | AMD Radeon Pro W7700 |
Memory: | 16 GB GDDR6 |
Memory Interface: | 256-bit |
Max Resolution: | 12288 x 6912 |
- Specifications
- Description
General | |
Device Type: | Graphics card |
Bus Type: | PCI Express 4.0 x16 |
Graphics Engine: | AMD Radeon Pro W7700 |
VR Ready: | Yes |
Max Resolution: | 12288 x 6912 |
Max Resolution Details: | DisplayPort: 12288 x 6912 at 120 Hz (single display) / 6144 x 3456 at 60 Hz (dual displays) / 4096 x 2160 at 120 Hz (four displays) |
Max Monitors Supported: | 4 |
Interfaces Details: | 4 x DisplayPort |
API Supported: | OpenGL 4.6, DirectX 12 Ultimate, OpenCL 2.1, Vulkan 1.3 |
Features: | Error Correcting Codes (ECC) Memory, 3D Stereo Connectivity, HDR Ready, Radeon VR Ready Creator, 10-bit colour, Radeon ProRender, AMD Remote Workstation, Radeon Media Engine, AMD Infinity Cache, full-height dual-width, AV1 decode support, RDNA 3 Gaming Architecture, AV1 encode support, hardware raytracing, 12K support, AMD Viewport Boost, 12-bit colour, 56.54 Tflops peak half-precision (FP16) performance, 48 Compute Units, 28.3 Tflops peak single precision matrix (FP32) performance, dual H265/HEVC decode and encode support, dual H264 decode and encode support |
Memory | |
Size: | 16 GB |
Technology: | GDDR6 SDRAM |
Bus Width: | 256-bit |
Bandwidth: | 576 GBps |
System Requirements | |
OS Required: | Linux (64-bit), Windows 10 64-bit Edition, Windows 11 |
Required Power Supply: | 650 W |
Additional Requirements: | 8 pin PCI Express power connector |
Miscellaneous | |
Compliant Standards: | DSC, DisplayPort 2.1 |
Depth: | 24.1 cm |
The technical details come from 3rd party. edgemo is not responsible for any errors.
